NXT1 SSM - All Serials - Gimbal Ring And Bell Housing Assembly (Without Trim Sensor)

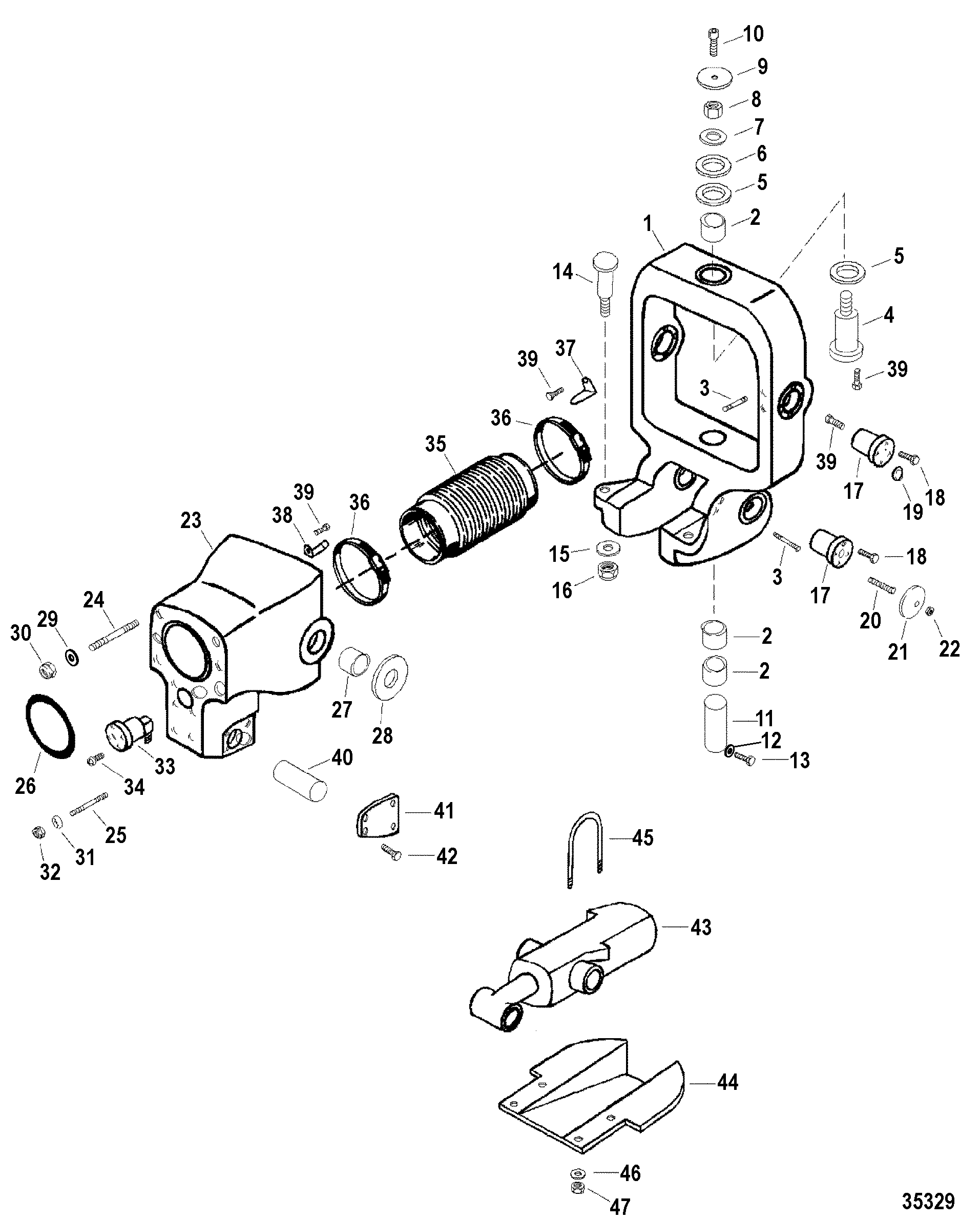

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Cable Actuator Components, Design-I
- Cable Actuator Components, Design-II
- Connector Block And Hydraulic Hoses
- Gear Housing Assembly (Dry Sump Six-NXT1 - Driveshaft)
- Gear Housing Assembly (Dry Sump Six-NXT1 - Propshaft)
- Gear Housing Assembly (SSM Seven - Driveshaft-Propshaft)
- Gear Housing Assembly (SSM Six - Driveshaft)
- Gear Housing Assembly (SSM Six - Propshaft)
- Gimbal Housing Assembly (Close Couple)
- Gimbal Housing Assembly (Driveline)
- Gimbal Ring And Bell Housing Assembly (With Trim Sensor)
- Gimbal Ring And Bell Housing Assembly (Without Trim Sensor)
- Inner Transom Plate Assembly (Dry Sump Six)
- Inner Transom Plate Assembly (SSM Six And Seven)
- Prop Ventilation Kit, SSM Six
- Spacer Kit (.500 Inch Thru 3.00 Inch)-SSM Six
- Spacer Kit (1.00 Inch Thru 3.00 Inch)-SSM Seven
- Spacer Kit (5.75 Inch)-SSM Six
- Steering Cylinder Assembly
- Tool List (Dry Sump Six-NXT1 SSM Six - Lower)
- Tool List (Dry Sump Six-NXT1 SSM Six - Transom)
- Tool List (Dry Sump Six-NXT1 SSM Six - Upper)
- Tool List (SSM Seven)
- Tool List (SSM Six)
- Trim Cylinder Assembly (With Trim Sensor Plate)
- Trim Cylinder Assembly (Without Trim Sensor Plate)
- Trim Pump Assembly (843017T03)
- Trim Pump Assembly (846860T1)
- Trim Pump Components (Design I - 846859A1)
- Trim Pump Components (Design II - 846859A1)
- U Joint Housing Assembly (Dry Sump Six-NXT1 SSM)
- U Joint Housing Assembly (SSM Seven)
- U Joint Housing Assembly (SSM Six - Early Style)
- U Joint Housing Assembly (SSM Six - Late Style)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 846603T1 | GIMBAL RING ASSEMBLY | 1 | ||||||
| 2 | 23-846916 | BEARING, Sleeve | 3 | ||||||
| 3 | 16-846345 | STUD, (#10-32 x .750) | 4 | ||||||
| 4 | 8M0051211 | PIN, Hinge, Upper | 1 | 846403 | |||||
| 5 | 12-846375 | THRUST WASHER, (1.53 x 2.62 x .06) | 2 | ||||||
| 6 | 12-846397 | WASHER, (1.250 x 2.620 x .190) Stainless Steel | 1 | ||||||
| 7 | 12-846382 | WASHER, (1.015 x 1.750 x .096) Stainless Steel | 1 | ||||||
| 8 | 11-846391 | NUT, (1.00-16) Stainless Steel | 1 | ||||||
| 9 | 848234 | CAP | 1 | ||||||
| 10 | 10-846500 | SCREW, (#10-32 x 1.00) Stainless Steel | 1 | ||||||
| 11 | 8M8027382 | PIN, Lower Pivot | 1 | 846402 | |||||
| 12 | 12-35950 | WASHER, (.273 x .437 x .031) Stainless Steel | 1 | ||||||
| 13 | 10-846348 | SCREW, (.250-28 x 1.50) Special - Stainless Steel, Pin Retainer | 1 | ||||||
| 14 | 10-846854 | SHOULDER SCREW, (.750-16) Stainless Steel, Steering Cylinder | 2 | ||||||
| 15 | 847048 | PLATE, Ground, Bonding | 2 | ||||||
| 16 | 11-846853 | NUT, (.750-16) Stainless Steel | 2 | ||||||
| 17 | 846433 | PIN, Hinge | 4 | ||||||
| 18 | 10-846498 | SCREW, (.312-18 x .750) Stainless Steel | 16 | ||||||
| 19 | 19-846643 | PLUG | 2 | ||||||
| 20 | 16-57932 | STUD, (.375-16/.375-24 x 1.750) | 2 | ||||||
| 21 | 848653T | ANODE | 2 | ||||||
| 22 | 11-826709112 | NUT, (.375-16) | 2 | 11-846869 | |||||
| 23 | 846602A1 | HOUSING ASSEMBLY, Tilt | 1 | 846602T1 | |||||
| 24 | 16-846389 | STUD, (.625-11/.625-18 x 3.310) | 6 | ||||||
| 25 | 16-8M0007427 | STUD, (.500-13/.500-20 x 2.660) | 2 | 16-842689 | |||||
| 26 | 25-846363 | O-RING, (7.262 x .120) | 1 | ||||||
| 27 | 23-846915 | BEARING, Hinge Pin | 2 | ||||||
| 28 | 12-846914 | THRUST WASHER, (1.69 x 3.50 x .06) | 2 | ||||||
| 29 | 12-846378 | WASHER, (.688 x 1.00 x .120) Stainless Steel | 6 | ||||||
| 30 | 11-47379 | NUT, (.625-18) Stainless Steel | 6 | ||||||
| 31 | 12-846377 | WASHER, (.531 x 1.06 x .095) Stainless Steel | 2 | ||||||
| 32 | 11-35000 | NUT, (.500-20) Stainless Steel | 2 | ||||||
| 33 | 846600A1 | VALVE ASSEMBLY | 1 | ||||||
| 34 | 10-846347 | SCREW, (#10-32 x .625) Stainless Steel | 4 | ||||||
| 35 | 846302A1 | BELLOWS ASSEMBLY | 1 | ||||||
| - | 24-846421 | SPRING, Bellows | 1 | ||||||
| 36 | 54-846428 | CLAMP, Worm Drive | 2 | ||||||
| 37 | 847050 | STRAP, Bonding | 1 | ||||||
| 38 | 847049 | STRAP, Bonding | 1 | ||||||
| 39 | 10-69022 | SCREW, (#10-32 x .500) Stainless Steel | 7 | ||||||
| 40 | 844324 | PIN, Trim Cylinder | 1 | 846401 | |||||
| 41 | 846431 | WEARPAD | 1 | Starboard | |||||
| 41 | 846432 | WEARPAD | 1 | Port | |||||
| 42 | 10-846498 | SCREW, (.312-18 x .750) Stainless Steel | 8 | ||||||
| 43 | 846555A07 | CYLINDER ASSEMBLY, Trim | 1 | 846555A4 | NOTE: See Trim Cylinder Assembly Section For Parts Breakdown | ||||
| 44 | 8M0050812 | SHIELD, Water | 1 | 847060 | |||||
| 45 | 10-847061 | U BOLT, (.312-24) Stainless Steel | 2 | ||||||
| 46 | 12-843108 | WASHER, (.330 x .560 x .060) Stainless Steel | 4 | ||||||
| 47 | 11-82670911 | NUT, (.312-24) Stainless Steel | 4 | 11-35814 |
