NXT1 SSM - All Serials - Trim Pump Assembly (846860T1)

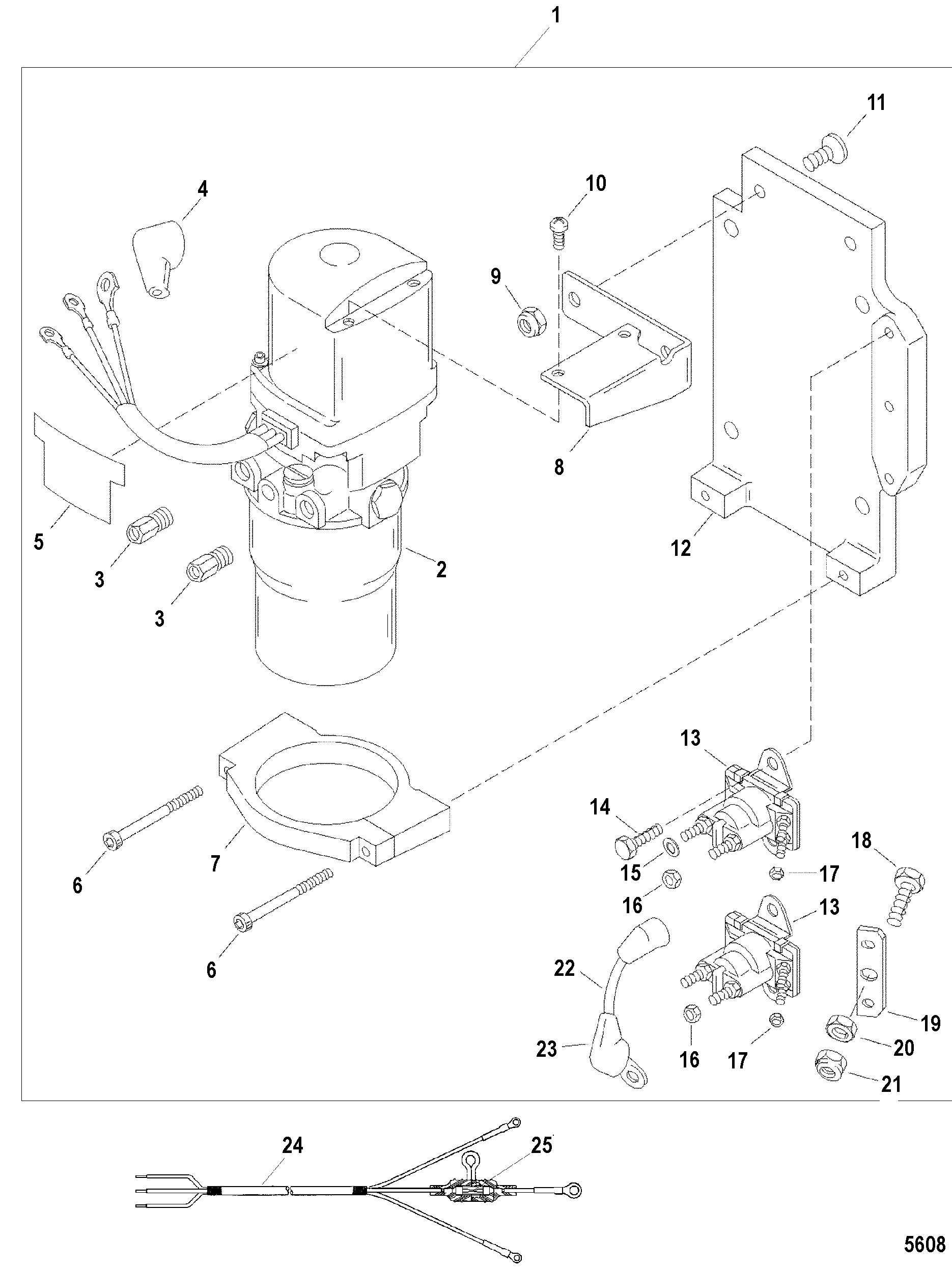

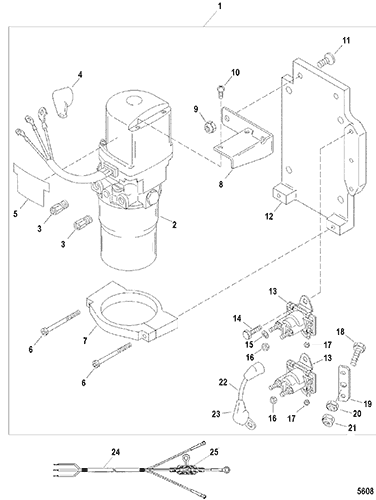

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Cable Actuator Components, Design-I
- Cable Actuator Components, Design-II
- Connector Block And Hydraulic Hoses
- Gear Housing Assembly (Dry Sump Six-NXT1 - Driveshaft)
- Gear Housing Assembly (Dry Sump Six-NXT1 - Propshaft)
- Gear Housing Assembly (SSM Seven - Driveshaft-Propshaft)
- Gear Housing Assembly (SSM Six - Driveshaft)
- Gear Housing Assembly (SSM Six - Propshaft)
- Gimbal Housing Assembly (Close Couple)
- Gimbal Housing Assembly (Driveline)
- Gimbal Ring And Bell Housing Assembly (With Trim Sensor)
- Gimbal Ring And Bell Housing Assembly (Without Trim Sensor)
- Inner Transom Plate Assembly (Dry Sump Six)
- Inner Transom Plate Assembly (SSM Six And Seven)
- Prop Ventilation Kit, SSM Six
- Spacer Kit (.500 Inch Thru 3.00 Inch)-SSM Six
- Spacer Kit (1.00 Inch Thru 3.00 Inch)-SSM Seven
- Spacer Kit (5.75 Inch)-SSM Six
- Steering Cylinder Assembly
- Tool List (Dry Sump Six-NXT1 SSM Six - Lower)
- Tool List (Dry Sump Six-NXT1 SSM Six - Transom)
- Tool List (Dry Sump Six-NXT1 SSM Six - Upper)
- Tool List (SSM Seven)
- Tool List (SSM Six)
- Trim Cylinder Assembly (With Trim Sensor Plate)
- Trim Cylinder Assembly (Without Trim Sensor Plate)
- Trim Pump Assembly (843017T03)
- Trim Pump Assembly (846860T1)
- Trim Pump Components (Design I - 846859A1)
- Trim Pump Components (Design II - 846859A1)
- U Joint Housing Assembly (Dry Sump Six-NXT1 SSM)
- U Joint Housing Assembly (SSM Seven)
- U Joint Housing Assembly (SSM Six - Early Style)
- U Joint Housing Assembly (SSM Six - Late Style)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 846860T1 | PUMP ASSEMBLY, Trim | 1 | ||||||
| 2 | 8M0051203 | PUMP ASSEMBLY, Hydraulic | 1 | 846859A1 | NOTE: See Hydraulic Pump Components Section For Parts Breakdown | ||||
| 3 | 22-77366 | FITTING | 2 | ||||||
| 4 | 85-843809 | BOOT, Solenoid To Pump Terminals | 2 | ||||||
| 5 | 37-842773 | DECAL | 1 | 37-847313 | |||||
| 6 | 10-844430 | SCREW, (.250-20 x 3.00) | 2 | ||||||
| 7 | 8M0050785 | BRACKET, Pump Mounting | 1 | 844407 | |||||
| 8 | 846866 | BRACE, Hydraulic Pump | 1 | ||||||
| 9 | 11-826709112 | NUT, (.375-16) | 2 | 11-846869 | |||||
| 10 | 10-57807 | SCREW, (#10-16 x .750) Stainless Steel | 2 | ||||||
| 11 | 10-844417 | SCREW, (.375-16 x .875) Stainless Steel | 4 | ||||||
| 12 | 8M0050838 | PLATE, Pump Mounting | 1 | 8468501 | |||||
| 13 | 89-96158T | SOLENOID | 2 | 89-846070 | |||||
| 14 | 10-73286 | SCREW, (.250-20 x .500) Stainless Steel | 3 | ||||||
| 15 | 12-23243 | WASHER, (.260 x .562 x .040) Brass | 4 | ||||||
| 16 | 11-814101 | NUT, (.250-20) Stainless Steel | 4 | ||||||
| 17 | 11-826709104 | NUT, (#8-32) | 4 | 11-846115 | |||||
| 18 | 10-845856 | SCREW, (.312-18 x .750) | 1 | ||||||
| 19 | 846124 | STRAP | 1 | ||||||
| 20 | 11-846127 | NUT, (.312-18) Brass | 1 | ||||||
| 21 | 11-826709110 | NUT, (.312-18) Stainless Steel | 1 | 11-846128 | |||||
| 22 | 84-846134A1 | WIRE ASSEMBLY, Jumper | 1 | ||||||
| 23 | 85-843809 | BOOT | 2 | ||||||
| 24 | 84-846160A2 | HARNESS ASSEMBLY, Wiring | 1 | ||||||
| 25 | 89-846159 | FUSE, 10 Ampere | 1 |
