NXT1 SSM - All Serials - Trim Pump Components (Design I - 846859A1)

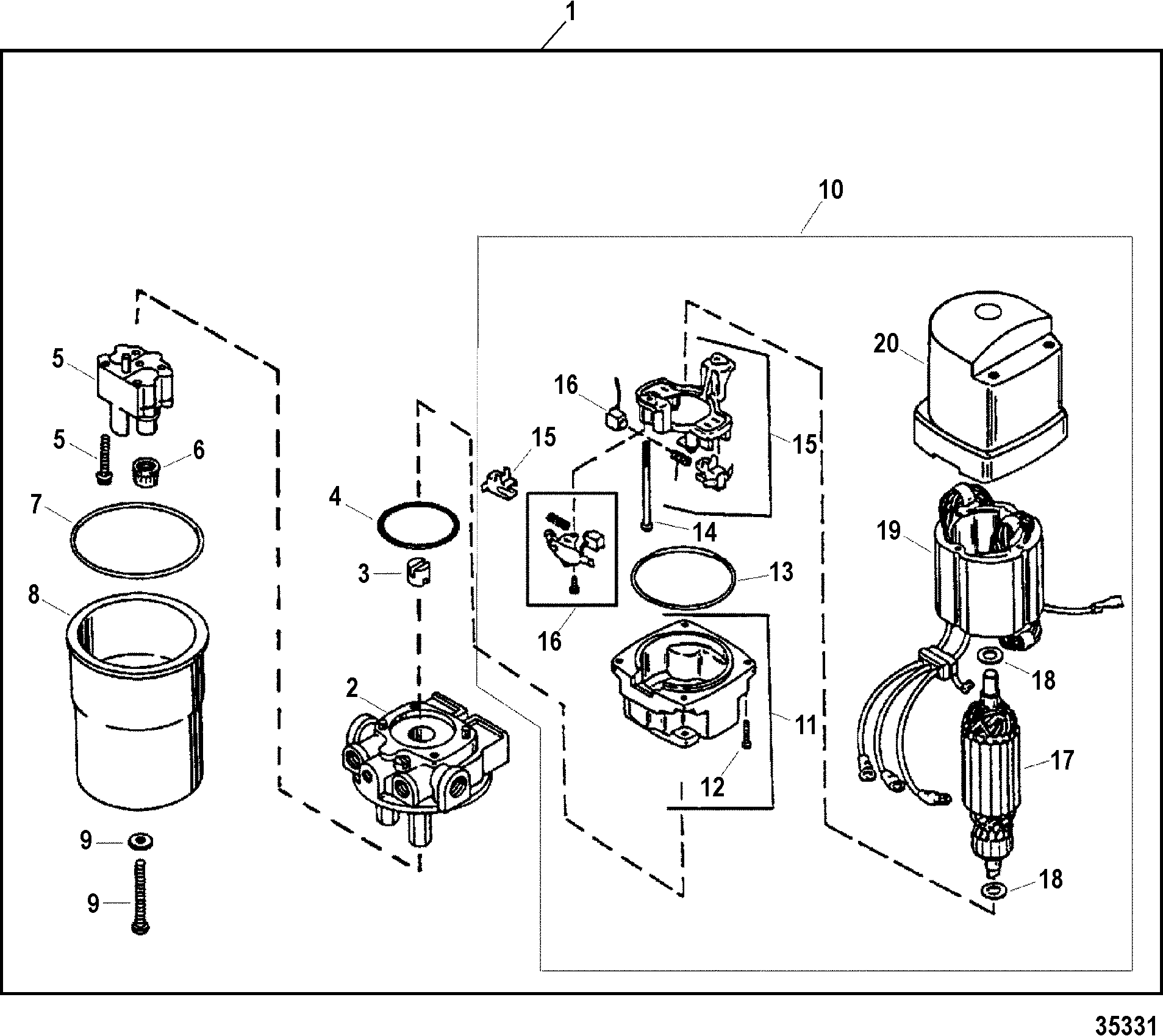

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Cable Actuator Components, Design-I
- Cable Actuator Components, Design-II
- Connector Block And Hydraulic Hoses
- Gear Housing Assembly (Dry Sump Six-NXT1 - Driveshaft)
- Gear Housing Assembly (Dry Sump Six-NXT1 - Propshaft)
- Gear Housing Assembly (SSM Seven - Driveshaft-Propshaft)
- Gear Housing Assembly (SSM Six - Driveshaft)
- Gear Housing Assembly (SSM Six - Propshaft)
- Gimbal Housing Assembly (Close Couple)
- Gimbal Housing Assembly (Driveline)
- Gimbal Ring And Bell Housing Assembly (With Trim Sensor)
- Gimbal Ring And Bell Housing Assembly (Without Trim Sensor)
- Inner Transom Plate Assembly (Dry Sump Six)
- Inner Transom Plate Assembly (SSM Six And Seven)
- Prop Ventilation Kit, SSM Six
- Spacer Kit (.500 Inch Thru 3.00 Inch)-SSM Six
- Spacer Kit (1.00 Inch Thru 3.00 Inch)-SSM Seven
- Spacer Kit (5.75 Inch)-SSM Six
- Steering Cylinder Assembly
- Tool List (Dry Sump Six-NXT1 SSM Six - Lower)
- Tool List (Dry Sump Six-NXT1 SSM Six - Transom)
- Tool List (Dry Sump Six-NXT1 SSM Six - Upper)
- Tool List (SSM Seven)
- Tool List (SSM Six)
- Trim Cylinder Assembly (With Trim Sensor Plate)
- Trim Cylinder Assembly (Without Trim Sensor Plate)
- Trim Pump Assembly (843017T03)
- Trim Pump Assembly (846860T1)
- Trim Pump Components (Design I - 846859A1)
- Trim Pump Components (Design II - 846859A1)
- U Joint Housing Assembly (Dry Sump Six-NXT1 SSM)
- U Joint Housing Assembly (SSM Seven)
- U Joint Housing Assembly (SSM Six - Early Style)
- U Joint Housing Assembly (SSM Six - Late Style)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0051203 | PUMP ASSEMBLY, Hydraulic | 1 | 846859A1 | |||||
| 2 | 811491 | ADAPTOR | 1 | ||||||
| 3 | 803852 | COUPLING | 1 | 89493 | |||||
| 4 | 25-89498 | O-RING, Motor To Adaptor | 1 | ||||||
| 5 | 811492T | PUMP ASSEMBLY, With Screws | 1 | ||||||
| 6 | 35-89496 | FILTER | 2 | ||||||
| 7 | 25-89497 | O-RING, Reservoir To Adaptor | 1 | ||||||
| 8 | 41219T | RESERVOIR | 1 | ||||||
| 9 | 10-811493 | SCREW KIT | 1 | ||||||
| 10 | 891736T | MOTOR ASSEMBLY, Complete | 1 | 17649T | Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Sprial Line | ||||
| 11 | 891736T | END CAP ASSEMBLY, With Bearing | 1 | 17632T | |||||
| 12 | 891736T | SCREW | 4 | 10-17626 | |||||
| 13 | 891736T | O-RING, Frame To Housing | 1 | 25-17625 | |||||
| 14 | 891736T | SCREW | 2 | 10-17621 | |||||
| 15 | 17633 | HOLDER KIT, Brushes | 1 | No longer made, limited availability | |||||
| 16 | 891736T | BRUSH KIT | 1 | 17631A1 | |||||
| 17 | 17623 | ARMATURE | 1 | ||||||
| 18 | 891736T | WASHER, Thrust | 2 | 12-17653 | |||||
| 19 | 17624 | FIELD AND FRAME ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 20 | 891736T | COVER ASSEMBLY, With Bearing | 1 | 17622 | |||||
| - | 812498A1 | VALVE KIT, Relief, Up Pressure | 1 |
