NXT1 SSM - All Serials - Spacer Kit (1.00 Inch Thru 3.00 Inch)-SSM Seven

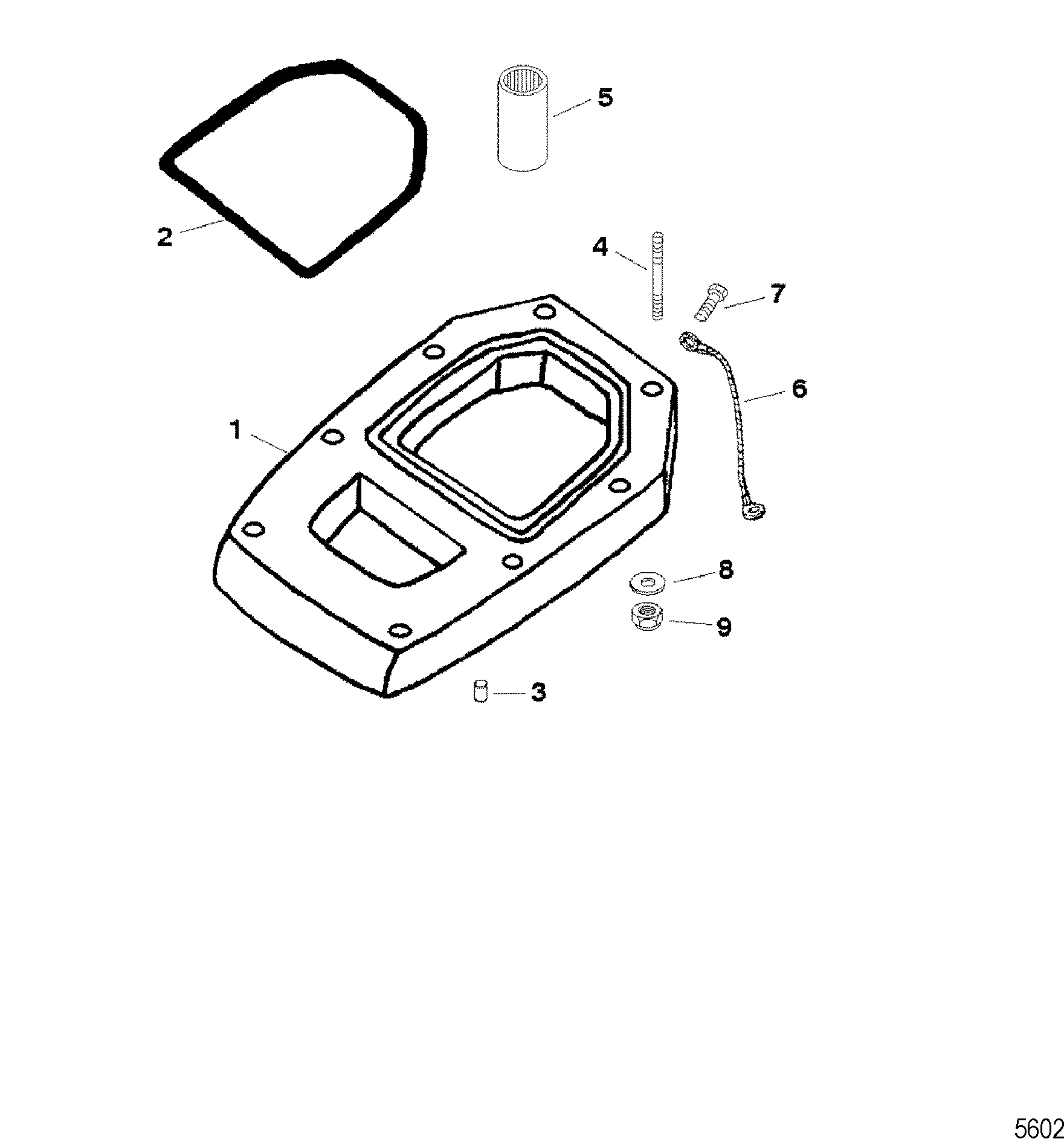

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Cable Actuator Components, Design-I
- Cable Actuator Components, Design-II
- Connector Block And Hydraulic Hoses
- Gear Housing Assembly (Dry Sump Six-NXT1 - Driveshaft)
- Gear Housing Assembly (Dry Sump Six-NXT1 - Propshaft)
- Gear Housing Assembly (SSM Seven - Driveshaft-Propshaft)
- Gear Housing Assembly (SSM Six - Driveshaft)
- Gear Housing Assembly (SSM Six - Propshaft)
- Gimbal Housing Assembly (Close Couple)
- Gimbal Housing Assembly (Driveline)
- Gimbal Ring And Bell Housing Assembly (With Trim Sensor)
- Gimbal Ring And Bell Housing Assembly (Without Trim Sensor)
- Inner Transom Plate Assembly (Dry Sump Six)
- Inner Transom Plate Assembly (SSM Six And Seven)
- Prop Ventilation Kit, SSM Six
- Spacer Kit (.500 Inch Thru 3.00 Inch)-SSM Six
- Spacer Kit (1.00 Inch Thru 3.00 Inch)-SSM Seven
- Spacer Kit (5.75 Inch)-SSM Six
- Steering Cylinder Assembly
- Tool List (Dry Sump Six-NXT1 SSM Six - Lower)
- Tool List (Dry Sump Six-NXT1 SSM Six - Transom)
- Tool List (Dry Sump Six-NXT1 SSM Six - Upper)
- Tool List (SSM Seven)
- Tool List (SSM Six)
- Trim Cylinder Assembly (With Trim Sensor Plate)
- Trim Cylinder Assembly (Without Trim Sensor Plate)
- Trim Pump Assembly (843017T03)
- Trim Pump Assembly (846860T1)
- Trim Pump Components (Design I - 846859A1)
- Trim Pump Components (Design II - 846859A1)
- U Joint Housing Assembly (Dry Sump Six-NXT1 SSM)
- U Joint Housing Assembly (SSM Seven)
- U Joint Housing Assembly (SSM Six - Early Style)
- U Joint Housing Assembly (SSM Six - Late Style)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 847413A2 | SPACER KIT (1.00 Inch) | 1 | This Part is No Longer Available | |||||
| 1 | 847391A2 | SPACER KIT (1.50 Inch) | 1 | This Part is No Longer Available | |||||
| 1 | 847412A2 | SPACER KIT (2.00 Inch) | 1 | This Part is No Longer Available | |||||
| 1 | 847385A2 | SPACER KIT (3.00 Inch) | 1 | This Part is No Longer Available | |||||
| 2 | 25-847373 | O-RING | 1 | This Part is No Longer Available | |||||
| 3 | 17-16527 | PIN, Dowel | 2 | ||||||
| 4 | 16-846617 | STUD, (.562-12/.562-18 x 4.750), 1.00 Inch Kit | 8 | ||||||
| 4 | 16-846618 | STUD, (.562-12/.562-18 x 5.250), 1.50 Inch Kit | 8 | ||||||
| 4 | 16-846668 | STUD, (.562-12/.562-18 x 5.750), 2.00 Inch Kit | 8 | ||||||
| 4 | 16-846619 | STUD, (.562-12/.562-18 x 6.750), 3.00 Inch Kit | 8 | ||||||
| 5 | 847409 | SHAFT, Coupling, 1.00 Inch Kit | 1 | This Part is No Longer Available | |||||
| 5 | 847408 | SHAFT, Coupling, 1.50 Inch Kit | 1 | This Part is No Longer Available | |||||
| 5 | 847407 | SHAFT, Coupling, 2.00 Inch Kit | 1 | This Part is No Longer Available | |||||
| 5 | 847404 | SHAFT, Coupling, 3.00 Inch Kit | 1 | This Part is No Longer Available | |||||
| 6 | 847062A1 | BONDING KIT | 1 | ||||||
| 7 | 10-69022 | SCREW, (#10-32 x .500) Stainless Steel | 1 | ||||||
| 8 | 12-844850 | WASHER, (.660 x 1.310 x .09) Stainless Steel | 8 | ||||||
| 9 | 11-47302 | NUT, (.562-18) Stainless Steel | 8 |
