NXT1 SSM - All Serials - Gimbal Housing Assembly (Driveline)

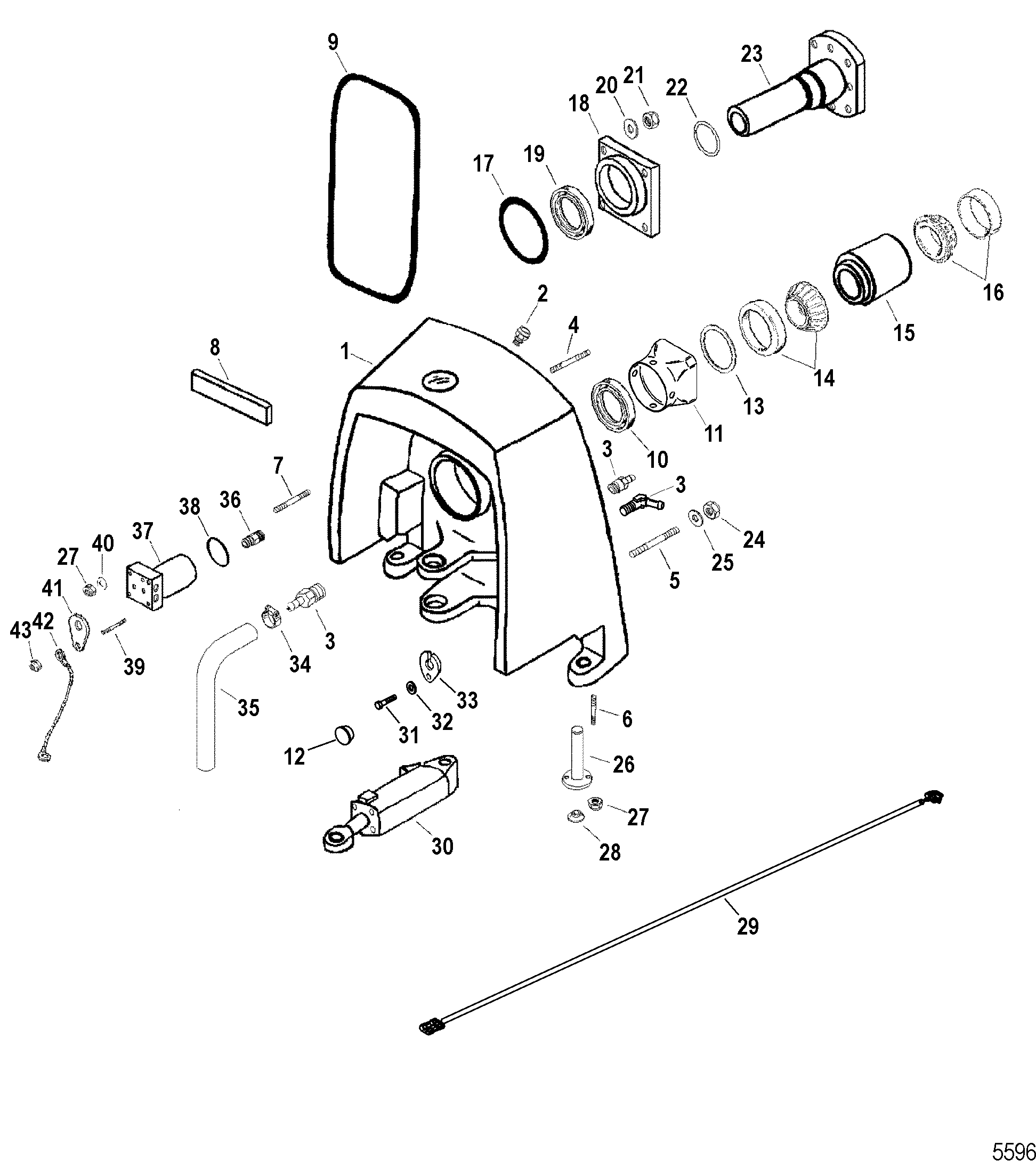

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Cable Actuator Components, Design-I
- Cable Actuator Components, Design-II
- Connector Block And Hydraulic Hoses
- Gear Housing Assembly (Dry Sump Six-NXT1 - Driveshaft)
- Gear Housing Assembly (Dry Sump Six-NXT1 - Propshaft)
- Gear Housing Assembly (SSM Seven - Driveshaft-Propshaft)
- Gear Housing Assembly (SSM Six - Driveshaft)
- Gear Housing Assembly (SSM Six - Propshaft)
- Gimbal Housing Assembly (Close Couple)
- Gimbal Housing Assembly (Driveline)
- Gimbal Ring And Bell Housing Assembly (With Trim Sensor)
- Gimbal Ring And Bell Housing Assembly (Without Trim Sensor)
- Inner Transom Plate Assembly (Dry Sump Six)
- Inner Transom Plate Assembly (SSM Six And Seven)
- Prop Ventilation Kit, SSM Six
- Spacer Kit (.500 Inch Thru 3.00 Inch)-SSM Six
- Spacer Kit (1.00 Inch Thru 3.00 Inch)-SSM Seven
- Spacer Kit (5.75 Inch)-SSM Six
- Steering Cylinder Assembly
- Tool List (Dry Sump Six-NXT1 SSM Six - Lower)
- Tool List (Dry Sump Six-NXT1 SSM Six - Transom)
- Tool List (Dry Sump Six-NXT1 SSM Six - Upper)
- Tool List (SSM Seven)
- Tool List (SSM Six)
- Trim Cylinder Assembly (With Trim Sensor Plate)
- Trim Cylinder Assembly (Without Trim Sensor Plate)
- Trim Pump Assembly (843017T03)
- Trim Pump Assembly (846860T1)
- Trim Pump Components (Design I - 846859A1)
- Trim Pump Components (Design II - 846859A1)
- U Joint Housing Assembly (Dry Sump Six-NXT1 SSM)
- U Joint Housing Assembly (SSM Seven)
- U Joint Housing Assembly (SSM Six - Early Style)
- U Joint Housing Assembly (SSM Six - Late Style)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 8M0050392 | PLATE ASSEMBLY, Outer | 1 | 846604A1 | ||||||
| 2 | 22-847091 | FITTING | 1 | |||||||
| 3 | 22-47841 | FITTING, (.375-18 x .500 ), Straight | 1/2 | NOTE: Qty 2 - Version I And Qty 1 - Version II | ||||||
| 3 | 22-38565 | FITTING, (.375-18), Elbow - 45 Degree | 1 | NOTE: Version II | ||||||
| 4 | 16-57933 | STUD, (.437-14/.437-20 x 2.190) | 4 | |||||||
| 5 | 16-846384 | STUD, (.625-11/.625-18 x 5.750) | 8 | |||||||
| 6 | 16-846386 | STUD, (.250-28 x 1.120) | 4 | |||||||
| 7 | 16-846388 | STUD, (.250-28 x 1.750) | 4 | |||||||
| 8 | 847333 | EMBLEM, MerCruiser | 1 | Early Models | ||||||
| 8 | 37-840359 | DECAL, Mercury Racing | 1 | SN# 0M965835 & Below | ||||||
| 8 | 37-8M0048257 | DECAL, Mercury Racing | 1 | SN# 0M965836 & Up | ||||||
| 9 | 25-847213 | O-RING, Special | 1 | |||||||
| 10 | 26-846497 | SEAL | 1 | |||||||
| 11 | 840164A1 | SHIELD KIT, Transom Splash | 1 | |||||||
| 12 | 19-861492 | PLUG, Non Digital Trim Sender Models | 1 | |||||||
| 13 | 15-846430A1 | SHIM SET | 1 | |||||||
| 14 | 31-846477A1 | BEARING SET, Cup And Cone | 1 | |||||||
| 15 | 8M0050789 | SPACER | 1 | 847321 | ||||||
| 16 | 31-847395T1 | BEARING SET, Cup And Cone | 1 | |||||||
| 17 | 25-846366 | O-RING, (4.860 x .120) | 1 | |||||||
| 18 | 847322A1 | COVER ASSEMBLY, Input Shaft | 1 | |||||||
| 19 | 26-846496 | SEAL | 1 | |||||||
| 20 | 12-842922 | WASHER, (.450 x .750 x .060) Stainless Steel | 4 | |||||||
| 21 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 4 | ||||||
| 22 | 53-847323 | RING, Retaining | 1 | |||||||
| 23 | 8M0050761 | SHAFT, Input | 1 | 847320 | New Style | |||||
| 24 | 11-47379 | NUT, (.625-18) Stainless Steel | 8 | |||||||
| 25 | 12-844850 | WASHER, (.660 x 1.310 x .09) Stainless Steel | 8 | |||||||
| 26 | 844322 | PIN, Pivot | 2 | 848726 | ||||||
| 27 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 8 | |||||
| 28 | 19-846643 | PLUG, Flush | 2 | |||||||
| 29 | 84-843203A04 | HARNESS ASSEMBLY, Extension | 1 | 84-843203A03 | Driveline Models | |||||
| 30 | 8M0050240 | CYLINDER ASSEMBLY, Steering | 1 | 846472A3 | NOTE: Starboard - See Steering Cylinder Assembly Section For Parts Breakdown | |||||
| 30 | 8M0050242 | CYLINDER ASSEMBLY, Steering | 1 | 846473A3 | NOTE: Port - See Steering Cylinder Assembly For Parts Breakdown | |||||
| 31 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel | 1 | NOTE: With Trim Sender | ||||||
| 32 | 12-35950 | WASHER, (.273 x .437 x .031) Stainless Steel | 1 | NOTE: With Trim Sender | ||||||
| 33 | 54-12078 | CLAMP | 1 | NOTE: With Trim Sender | ||||||
| 34 | 54-180761 | CLAMP, Worm Gear | 2 | |||||||
| 35 | 32-846616 | HOSE, (23.00 Inches) | 1 | |||||||
| 36 | 22-846865 | FITTING, (.375-18/.750-16 x 1.53) | 2 | |||||||
| 37 | 846471A1 | BLOCK ASSEMBLY, Hydraulic Connector | 1 | |||||||
| 38 | 25-86391 | O-RING | 1 | |||||||
| 39 | 16-846345 | STUD, (#10-32 x .750) | 1 | |||||||
| 40 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 2 | |||||||
| 41 | 847022 | PLATE, Bonding | 1 | |||||||
| 42 | 847062A1 | BONDING KIT | 1 | |||||||
| 43 | 11-34059 | NUT, (#10-32) | 1 |
