NXT1 SSM - All Serials - Tool List (Dry Sump Six-NXT1 SSM Six - Upper)

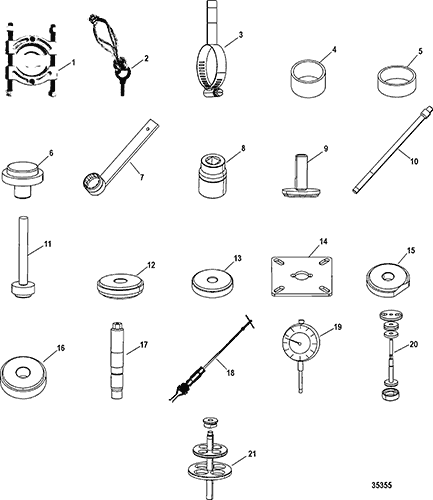

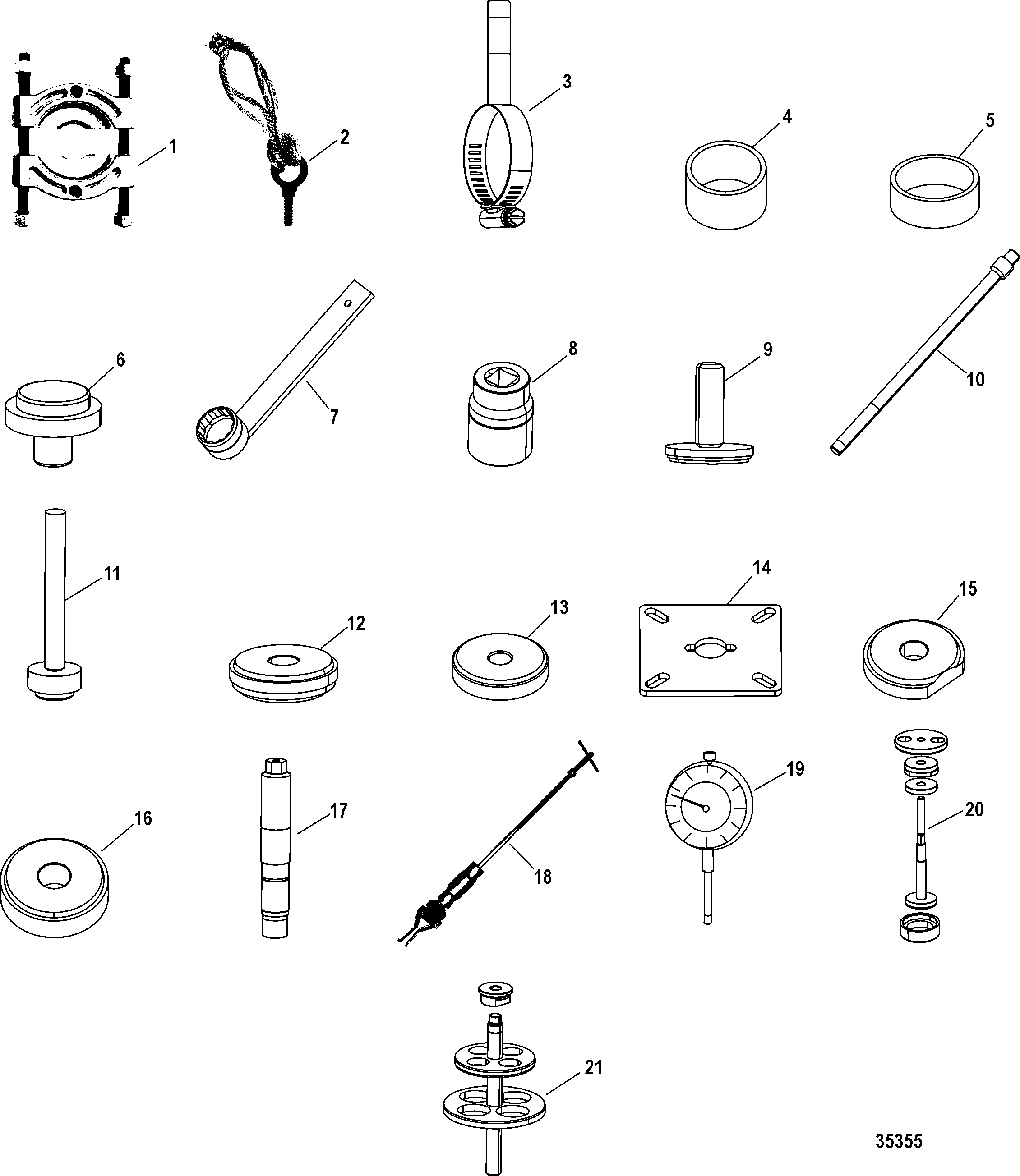

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Cable Actuator Components, Design-I
- Cable Actuator Components, Design-II
- Connector Block And Hydraulic Hoses
- Gear Housing Assembly (Dry Sump Six-NXT1 - Driveshaft)
- Gear Housing Assembly (Dry Sump Six-NXT1 - Propshaft)
- Gear Housing Assembly (SSM Seven - Driveshaft-Propshaft)
- Gear Housing Assembly (SSM Six - Driveshaft)
- Gear Housing Assembly (SSM Six - Propshaft)
- Gimbal Housing Assembly (Close Couple)
- Gimbal Housing Assembly (Driveline)
- Gimbal Ring And Bell Housing Assembly (With Trim Sensor)
- Gimbal Ring And Bell Housing Assembly (Without Trim Sensor)
- Inner Transom Plate Assembly (Dry Sump Six)
- Inner Transom Plate Assembly (SSM Six And Seven)
- Prop Ventilation Kit, SSM Six
- Spacer Kit (.500 Inch Thru 3.00 Inch)-SSM Six
- Spacer Kit (1.00 Inch Thru 3.00 Inch)-SSM Seven
- Spacer Kit (5.75 Inch)-SSM Six
- Steering Cylinder Assembly
- Tool List (Dry Sump Six-NXT1 SSM Six - Lower)
- Tool List (Dry Sump Six-NXT1 SSM Six - Transom)
- Tool List (Dry Sump Six-NXT1 SSM Six - Upper)
- Tool List (SSM Seven)
- Tool List (SSM Six)
- Trim Cylinder Assembly (With Trim Sensor Plate)
- Trim Cylinder Assembly (Without Trim Sensor Plate)
- Trim Pump Assembly (843017T03)
- Trim Pump Assembly (846860T1)
- Trim Pump Components (Design I - 846859A1)
- Trim Pump Components (Design II - 846859A1)
- U Joint Housing Assembly (Dry Sump Six-NXT1 SSM)
- U Joint Housing Assembly (SSM Seven)
- U Joint Housing Assembly (SSM Six - Early Style)
- U Joint Housing Assembly (SSM Six - Late Style)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 91-37241 | 700-90150 | PULLER PLATE | 1 | |||||
| 2 | 10-814411 | EYE BOLT | 1 | ||||||
| 3 | 91-847420 | INDICATOR TOOL | 1 | ||||||
| 4 | 8M0050783 | SPACER TOOL | 1 | 91-847421 | |||||
| 5 | 91-847422 | SPACER TOOL | 1 | ||||||
| 6 | 8M0050778 | PRESSING TOOL, Seal | 1 | 91-847426 | |||||
| 7 | 8M0050763 | WRENCH TOOL, Pinion Nut | 1 | 91-847437 | |||||
| 8 | 8M0050508 | SOCKET TOOL, Driveline Spline | 1 | 91-847439 | |||||
| 9 | 8M0050780 | REMOVAL TOOL, Driven Gear Retainer | 1 | 91-847446 | |||||
| 10 | 8M0050777 | HANDLE TOOL, Bearing Cup Driver | 1 | 91-847452 | |||||
| 11 | 8M0050759 | INSTALLER TOOL, Seal, Rear Transom | 1 | 91-847453 | |||||
| 12 | 8M0050816 | DRIVER TOOL, Bearing Cup | 1 | 91-847470 | |||||
| 13 | 8M0050790 | DRIVER TOOL, Bearing Cup | 1 | 91-847473 | |||||
| 14 | 8M0050740 | CENTERING TOOL, Upper Pinion | 1 | 91-847480 | |||||
| 15 | 8M0050818 | DRIVER TOOL, Bearing Cup | 1 | 91-847574 | |||||
| 16 | 8M0050835 | DRIVER TOOL, Bearing Cup | 1 | 91-847577 | |||||
| 17 | 8M0050738 | INDICATOR TOOL, Upper Driven Shaft | 1 | 91-848480 | |||||
| 18 | 91-34569A1 | PULLER ASSEMBLY, Slide Hammer | 1 | ||||||
| 19 | 91-58222A1 | DIAL INDICATOR TOOL | 1 | ||||||
| 20 | 91-847482A01 | GAGE ASSEMBLY TOOL, Upper Pinion Drive Gear Position | 1 | ||||||
| 21 | 91-848479A01 | GAGE ASSEMBLY TOOL, Upper Driven Gear Position | 1 |
