NXT1 SSM - All Serials - U Joint Housing Assembly (Dry Sump Six-NXT1 SSM)

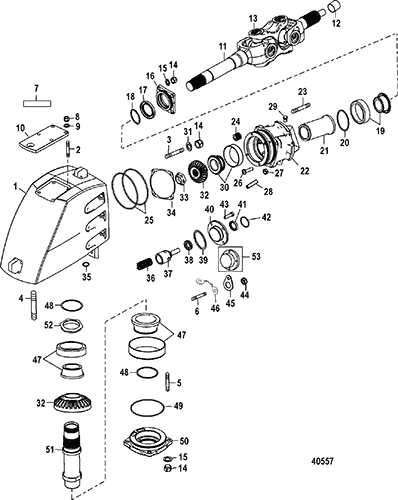

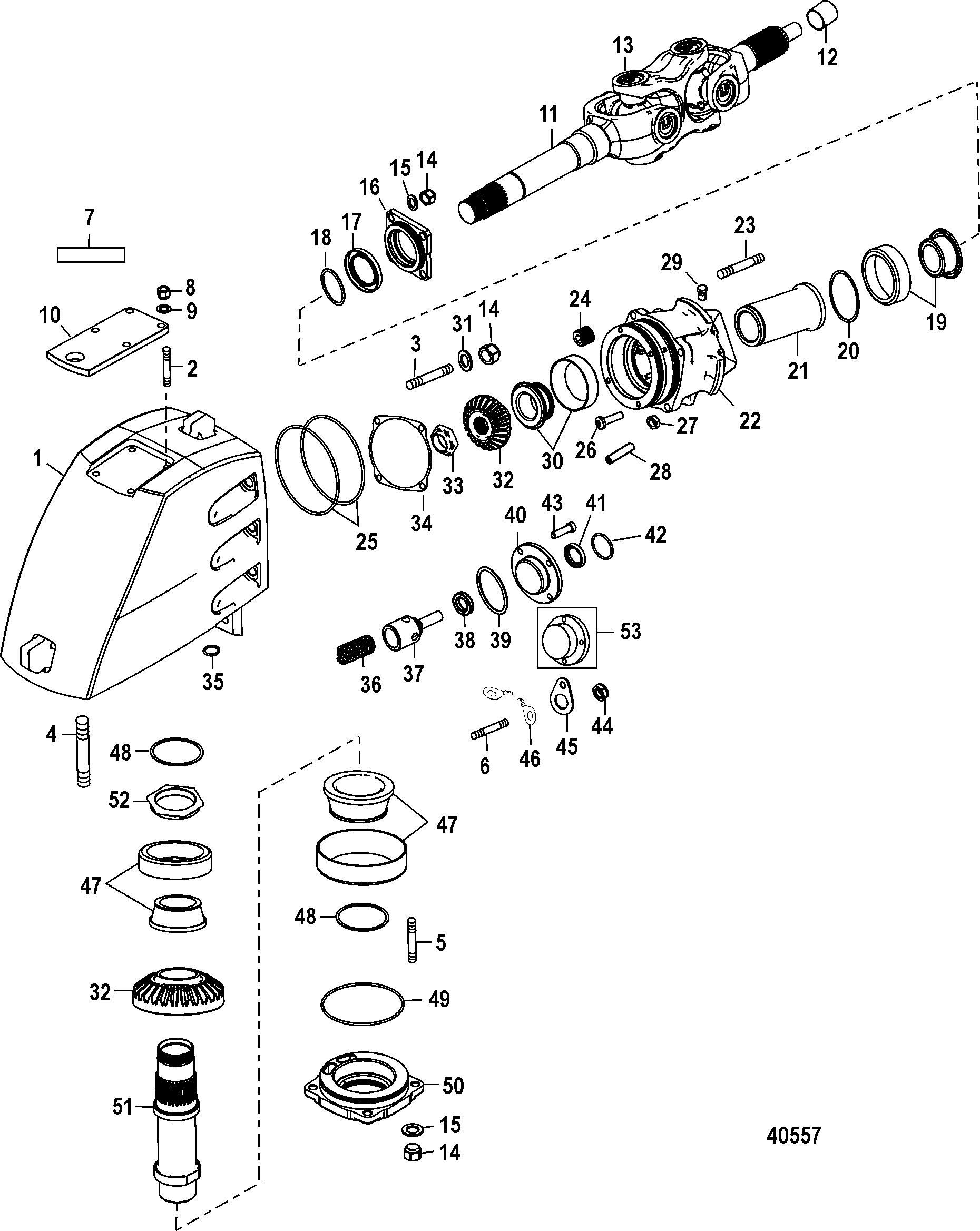

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Cable Actuator Components, Design-I
- Cable Actuator Components, Design-II
- Connector Block And Hydraulic Hoses
- Gear Housing Assembly (Dry Sump Six-NXT1 - Driveshaft)
- Gear Housing Assembly (Dry Sump Six-NXT1 - Propshaft)
- Gear Housing Assembly (SSM Seven - Driveshaft-Propshaft)
- Gear Housing Assembly (SSM Six - Driveshaft)
- Gear Housing Assembly (SSM Six - Propshaft)
- Gimbal Housing Assembly (Close Couple)
- Gimbal Housing Assembly (Driveline)
- Gimbal Ring And Bell Housing Assembly (With Trim Sensor)
- Gimbal Ring And Bell Housing Assembly (Without Trim Sensor)
- Inner Transom Plate Assembly (Dry Sump Six)
- Inner Transom Plate Assembly (SSM Six And Seven)
- Prop Ventilation Kit, SSM Six
- Spacer Kit (.500 Inch Thru 3.00 Inch)-SSM Six
- Spacer Kit (1.00 Inch Thru 3.00 Inch)-SSM Seven
- Spacer Kit (5.75 Inch)-SSM Six
- Steering Cylinder Assembly
- Tool List (Dry Sump Six-NXT1 SSM Six - Lower)
- Tool List (Dry Sump Six-NXT1 SSM Six - Transom)
- Tool List (Dry Sump Six-NXT1 SSM Six - Upper)
- Tool List (SSM Seven)
- Tool List (SSM Six)
- Trim Cylinder Assembly (With Trim Sensor Plate)
- Trim Cylinder Assembly (Without Trim Sensor Plate)
- Trim Pump Assembly (843017T03)
- Trim Pump Assembly (846860T1)
- Trim Pump Components (Design I - 846859A1)
- Trim Pump Components (Design II - 846859A1)
- U Joint Housing Assembly (Dry Sump Six-NXT1 SSM)
- U Joint Housing Assembly (SSM Seven)
- U Joint Housing Assembly (SSM Six - Early Style)
- U Joint Housing Assembly (SSM Six - Late Style)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 3524-848236A23 | HOUSING ASSEMBLY, Driveshaft | 1 | |||||||
| 2 | 16-847344 | STUD, (.500-13/.500-20 x 2.340) | 4 | |||||||
| 3 | 16-57984 | STUD, (.437-14/.437-20 x 2.380) | 4 | |||||||
| 4 | 16-846385 | STUD, (.562-12/.562-18 x 3.810) | 8 | |||||||
| 5 | 16-579203 | STUD, (.437-14/.437-20 x 2.060) | 4 | |||||||
| 6 | 16-846345 | STUD, (#10-32 x .750) | 1 | |||||||
| 7 | 37-840359 | DECAL, Mercury Racing | 2 | SN# 0M965835 & Below | ||||||
| 7 | 37-8M0048257 | DECAL, Mercury Racing | 2 | SN# 0M965836 & Up | ||||||
| 8 | 11-35000 | NUT, (.500-20) Stainless Steel | 4 | |||||||
| 9 | 12-844104 | WASHER | 4 | |||||||
| 10 | 847389 | PLATE, Tie Bar | 1 | |||||||
| 11 | 841166T01 | U JOINT ASSEMBLY | 1 | Dry Sump Six | ||||||
| 11 | 899866T | U JOINT ASSEMBLY | 1 | NXT1 Models | ||||||
| 12 | 23-848221 | SLEEVE, Bearing | 1 | Dry Sump Six | ||||||
| 12 | 844358 | SLEEVE, Bearing | 1 | NXT1 Models - Not included with U Joint | ||||||
| 13 | 848043 | CROSS/BEARING ASSEMBLY | 2 | |||||||
| 14 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 12 | ||||||
| 15 | 12-842922 | WASHER, (.450 x .750 x .060) Stainless Steel | 8 | |||||||
| 16 | 847307A1 | RETAINER ASSEMBLY | 1 | |||||||
| 17 | 26-846495 | SEAL | 1 | |||||||
| 18 | 25-847379 | O-RING, (3.237 x .090) | 1 | |||||||
| 19 | 31-847377T1 | BEARING SET, Cup And Cone | 1 | |||||||
| 20 | 15-847553A1 | SHIM SET | 1 | |||||||
| 21 | 8M0050831 | SPACER, Cone | 1 | 23-847305 | ||||||
| 22 | 847281A2 | HOUSING ASSEMBLY, Input | 1 | |||||||
| 23 | 16-57982 | STUD, (.437-14/.437-20 x 1.875) | 4 | |||||||
| 24 | 22-568001 | PLUG, Pipe (.0625-27) | 1 | |||||||
| 25 | 25-847376 | O-RING, (5.234 x .120) | 2 | |||||||
| 26 | 10-807675 | SCREW, (.312-24 x .380), Plug | 2 | |||||||
| 27 | 11-90095 | NUT, (.312-24) Stainless Steel | 2 | |||||||
| 28 | 8496731 | NOZZLE | 2 | |||||||
| 29 | 22-328022 | PLUG, Pipe (.125-27) Brass | 1 | |||||||
| 30 | 31-846490T1 | BEARING SET, Cup And Cone | 1 | |||||||
| 31 | 12-35935 | WASHER, (.435 x .875 x .105) Stainless Steel | 4 | |||||||
| 32 | 8M0051360 | GEAR SET | AR | 43-841171A01 | (1.153:1) | |||||
| 32 | 43-843201A01 | GEAR SET | AR | 43-846583A1 | (1.24:1) | |||||
| 32 | 43-849175A1 | GEAR SET | AR | (1.35:1) | ||||||
| 32 | 43-848787A1 | GEAR SET | AR | (1.47:1) | ||||||
| 32 | 43-849840A1 | GEAR SET | AR | (1.62:1) | ||||||
| 33 | 11-846392 | NUT, (1.25-16 RH) | 1 | |||||||
| 34 | 15-847306A1 | SHIM SET | 1 | |||||||
| 35 | 25-32509 | O-RING, (.489 x .070), Oil Tube Passage | 1 | |||||||
| 36 | 24-846339 | SPRING | 1 | |||||||
| 37 | 846422 | VALVE | 1 | |||||||
| 38 | 25-846350 | QUAD RING | 1 | |||||||
| 39 | 25-457101 | O-RING, (1.424 x .103) | 1 | |||||||
| 40 | 847304A1 | SEAT ASSEMBLY | 1 | Dry Sump Six | ||||||
| 41 | 26-846349 | SEAL | 1 | Dry Sump Six | ||||||
| 42 | 25-33466 | O-RING | 1 | Dry Sump Six | ||||||
| 43 | 10-846347 | SCREW, (#10-32 x .625) Stainless Steel | 4 | |||||||
| 44 | 11-8267096 | NUT, (#10-32) Stainless Steel | 1 | |||||||
| 45 | 847035 | PLATE, Bonding | 1 | |||||||
| 46 | 847062A1 | BONDING KIT | 1 | |||||||
| 47 | 31-847375T1 | BEARING SET, Cup And Cone | 2 | |||||||
| 48 | 15-34822A1 | SHIM SET | 2 | |||||||
| 49 | 25-847376 | O-RING, (5.234 x .120) | 1 | |||||||
| 50 | 8473112 | COVER, Bottom | 1 | |||||||
| 51 | 8M0051212 | SHAFT, Drive | 1 | 45-847512 | ||||||
| 52 | 11-848256 | NUT, (1.875-16) Special | 1 | |||||||
| 53 | 8M0010256 | COVER, Seat Valve | 1 | NXT1 |
