225 EFI Pro Max and Super Mag - Serial 0G857000 Thru 0T429939 - Bleed System

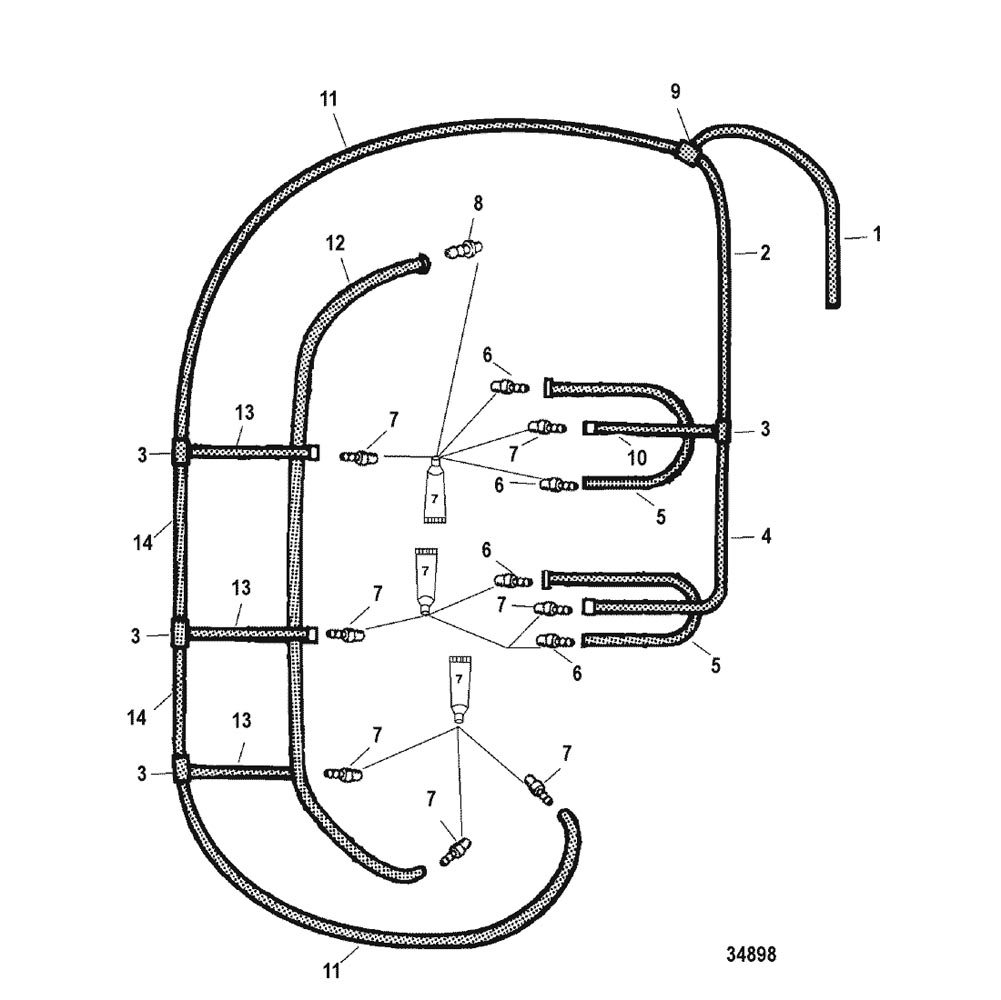

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 32-9912688         TUBING, (36.00 Inches Bulk) (7-1/4 IN.) 1
2 32-892024122         TUBING, (20.00 Feet Bulk) (3-1/2 IN.) 1 99130122
3 22-59169003         FITTING, Tee 4 591692
4 32-892024122         TUBING, (20.00 Feet Bulk) (5-1/2 IN.) 1 99130122
5 32-892024122         TUBING, (20.00 Feet Bulk) (9 IN.) 2 99130122
6 22-56759         FITTING, Barbed (PRESS-IN) 4
7 21-426982         CHECK VALVE (PRESS-IN - 13/16 LONG) 7 426981
8 21-426233         CHECK VALVE (PRESS-IN - 11/16 LONG) 1 426231
9 22-18205         TEE 1 No Longer Available
10 32-892024122         TUBING, (20.00 Feet Bulk) (1-1/4 IN.) 1 99130122
11 32-892024122         TUBING, (20.00 Feet Bulk) (9 IN.) 2 99130122
12 32-892024122         TUBING, (20.00 Feet Bulk) (19 IN.) 1 99130122
13 32-892024122         TUBING, (20.00 Feet Bulk) (1 IN.) 3 99130122
14 32-892024122         TUBING, (20.00 Feet Bulk) (4-1/2 IN.) 2 99130122
- 808603T94         POWERHEAD ASSEMBLY 1 No Longer Available
