225 EFI Pro Max and Super Mag - Serial 0G857000 Thru 0T429939 - Gear Housing, Propeller Shaft – Torque Master

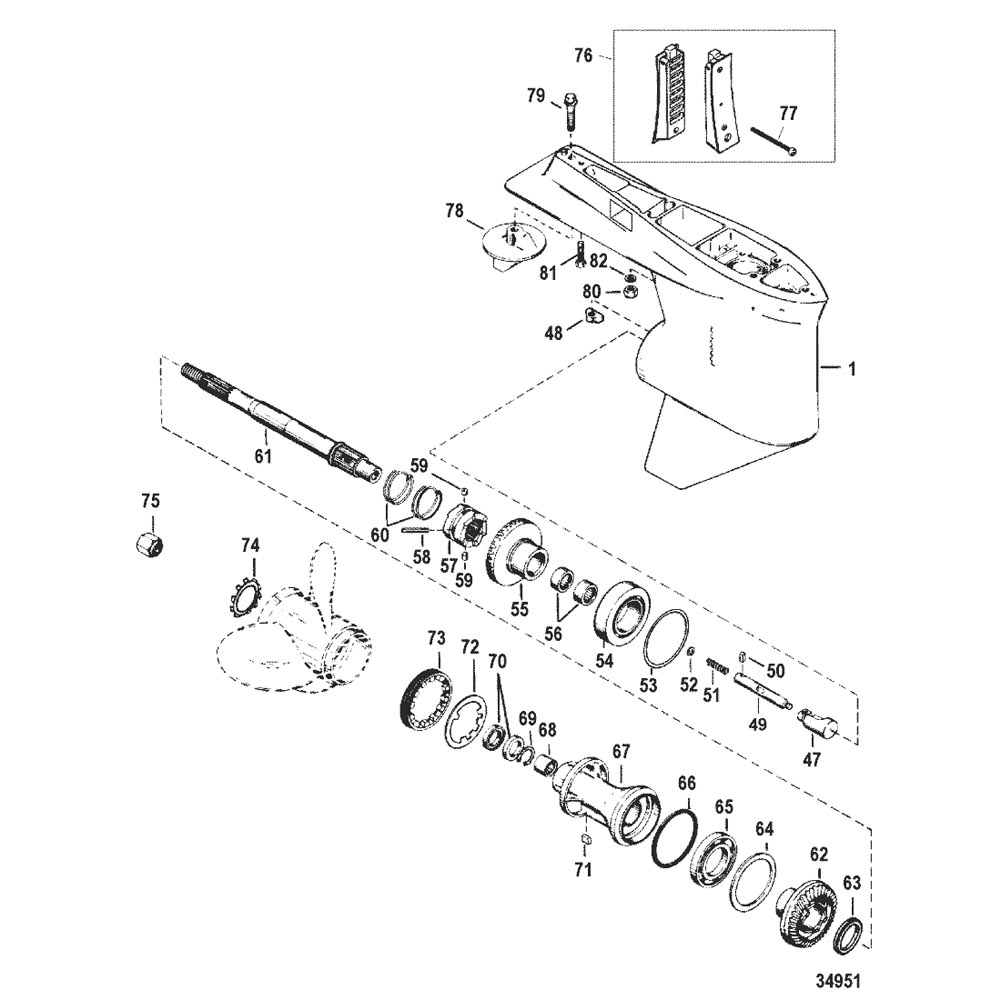

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1686-827214T23         GEAR HOUSING ASSEMBLY, Complete (1.87:1) 1 827214T14 No Longer Available
1 1686-827214T25         GEAR HOUSING ASSEMBLY, Basic 1 827214T16
47 89594A1         FOLLOWER ASSEMBLY 1
48 789562         SHIFT CAM 1
49 79911A1         ROD 1
50 17-8M0084245         PIN 1 78906
51 24-79910         SPRING 1
52 12-78910         WASHER AR
53 15-47397A1         SHIM SET AR
54 31-78172A1         BEARING ASSEMBLY, Tapered Roller 1
55 43-44104A7         GEAR SET 1
56 31-549281         BEARING, Roller 1
57 52-42672T         RATCHET 1
58 17-42671         PIN, Cross 1
59 17-78909         PIN, Detent 2
60 24-78962         SPRING 2
61 44-822820F1         PROPELLER SHAFT 1 No Longer Available
62 43-822824A1         GEAR ASSEMBLY, Reverse 1
63 23-822823         THRUST RING 1
64 681001         RING, Thrust 1
65 30-88957T         BEARING, Ball 1
66 25-31534         O-RING 1
67 848840A1         CARRIER ASSEMBLY, Bearing 1 848840T1
68 31-817072         BEARING, Roller 1
69 53-817071         RING, Snap 1
70 26-815565         SEAL, Oil 2
71 28-30281         KEY 1
72 14-79447         TAB WASHER 1
73 8M2011027         RETAINER 1 79448
74 13-423511         LOCKWASHER, Toothed 1
75 11-52707Q1         PROP NUT KIT, (.750-16) 1 52707A1
76 832066A1         PLATE KIT, Water Inlet 1
77 10-188642         SCREW, (#8-32 x .500) 4
78 97-76214Q5         ANODE KIT 1
79 10-66024         SCREW, (.437-14 x 1.75) 1
80 11-859116         NUT, (.4375-20) 2 134391
81 10-30206         SCREW, (.375-16 x 1.00) Stainless Steel 1
82 12-822836         WASHER, (.445 x .805 x .108) 2
- 26-89238A3         SEAL KIT, Gear Housing 1
- 27-813859A95         GASKET SET 1
