225 EFI Pro Max and Super Mag - Serial 0G857000 Thru 0T429939 - Reed Block and Cylinder Head

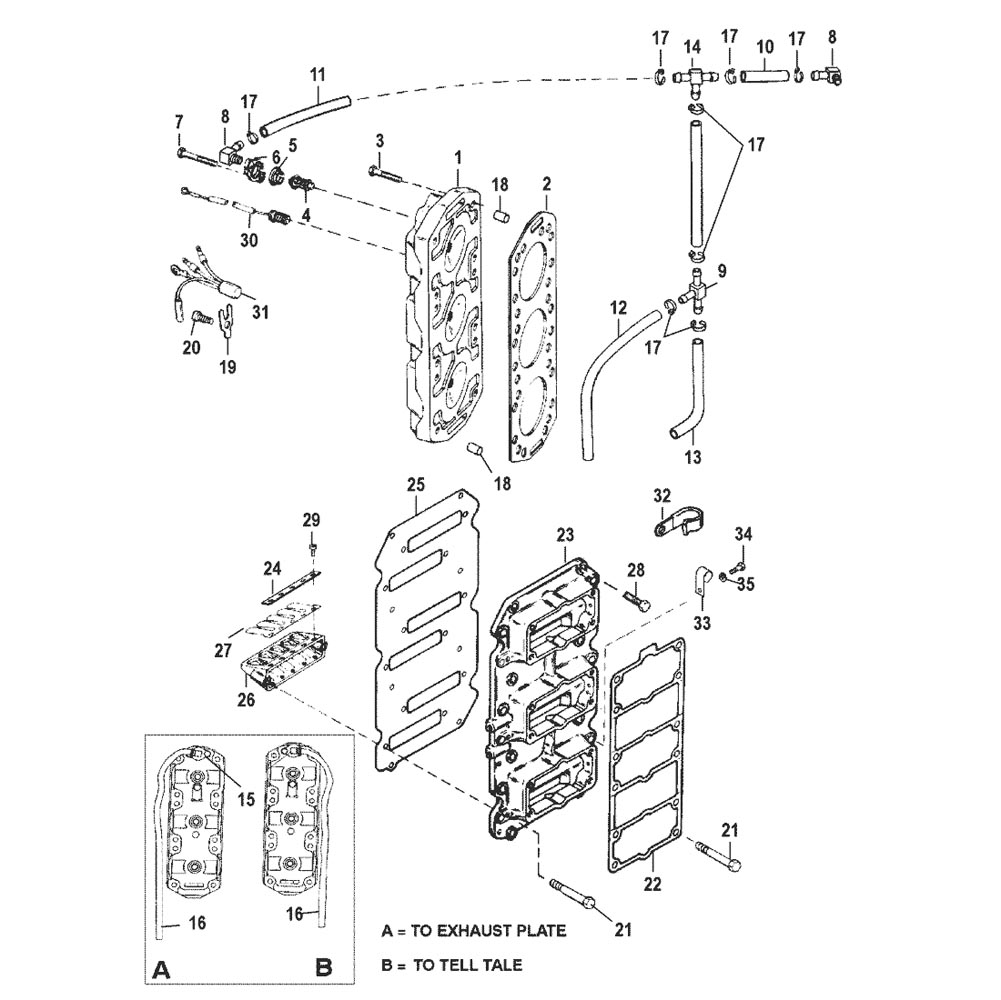

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- Driveshaft Housing (Offshore)
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump and Fuel Filter
- Gear Housing, Driveshaft – Counter/Standard – Sport Master
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Propeller Shaft – Counter – Sport Master
- Gear Housing, Propeller Shaft – Torque Master
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short/Offshore)
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets(Short/Offshore)
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 18789F1 | CYLINDER HEAD | 2 | ||||||
| 2 | 27-8146581 | GASKET | 2 | ||||||
| 3 | 10-98534 | SCREW, (.375-16 x 2.30) | 24 | ||||||
| 4 | 75692 | THERMOSTAT | 2 | ||||||
| 5 | 27-62386001 | GASKET | 2 | 62386 | |||||
| 6 | 90390A1 | COVER KIT | 2 | ||||||
| 7 | 10-35386 | SCREW, (.312-18 x 1.00) | 4 | ||||||
| 8 | 22-136071 | ELBOW, WATER HOSES | 2 | ||||||
| 9 | 22-815914 | T-FITTING | 1 | ||||||
| 10 | 32-8M0108349 | TUBING, (.312) (70.00 Inches Bulk) (2-1/2 IN.) | 1 | 830757130 | |||||
| 11 | 32-77653101 | HOSE, (48.00 Inches Bulk) (10-1/2 IN.) | 1 | ||||||
| 12 | 32-77653101 | HOSE, (48.00 Inches Bulk) (14-1/2 IN.) | 1 | ||||||
| 13 | 32-8M0108349 | TUBING, (.312) (70.00 Inches Bulk) (7-1/2 IN.) | 2 | 830757130 | |||||
| 14 | 22-90824001 | TEE | 1 | 90824 | |||||
| 15 | 22-687271 | FITTING, (.250-18) 90 Degree - Brass | 2 | ||||||
| 16 | 32-774572 | HOSE, (48.00 Inches Bulk) (20 IN.) | 2 | ||||||
| 17 | 54-816311T | TIE STRAP, (8.00 Inches) | AR | ||||||
| 18 | 17-63779 | PIN, Dowel (.250 x .625) | 4 | ||||||
| 19 | 137151 | RETAINER | 2 | ||||||
| 20 | 10-98257 | SCREW, (.312-18 x .500) | 2 | ||||||
| 21 | 10-28668 | 676-9-78127 | 700-22440 | SCREW, (.250-20 x .875) Stainless Steel | 12 | ||||
| 22 | 27-167371 | GASKET | 1 | ||||||
| 23 | 12124A3 | PLATE ASSEMBLY | 1 | ||||||
| 24 | 903911 | CLAMP, Reed | 12 | ||||||
| 25 | 27-883775 | GASKET | 1 | 813859 | |||||
| 26 | 87692T3 | BLOCK | 6 | 876922 | |||||
| 27 | 34-815242A3 | REED KIT | 6 | ||||||
| 28 | 10-28668 | 676-9-78127 | 700-22440 | SCREW, (.250-20 x .875) Stainless Steel | 8 | ||||
| 29 | 10-823588 | SCREW, (#8-32 x .250) | 84 | ||||||
| 30 | 78799 | SENDER, Temperature (19.50 Inch) | 1 | ||||||
| 31 | 13536A6 | SENSOR ASSEMBLY, Temperature | 1 | ||||||
| 32 | 54-55098 | J CLIP | 1 | ||||||
| 33 | 54-23567 | CLIP | 1 | ||||||
| 34 | 10-878608 | SCREW, (#10-16 x .500) | 1 | 812832 | |||||
| 35 | 8M0084613 | C WASHER | 1 | 69205 | |||||
| - | 27-813859A95 | GASKET SET | 1 | ||||||
| - | 809430T01 | POWERHEAD ASSEMBLY | 1 | 809430T95 |
