225 EFI Pro Max and Super Mag - Serial 0G857000 Thru 0T429939 - Cylinder Block and End Caps

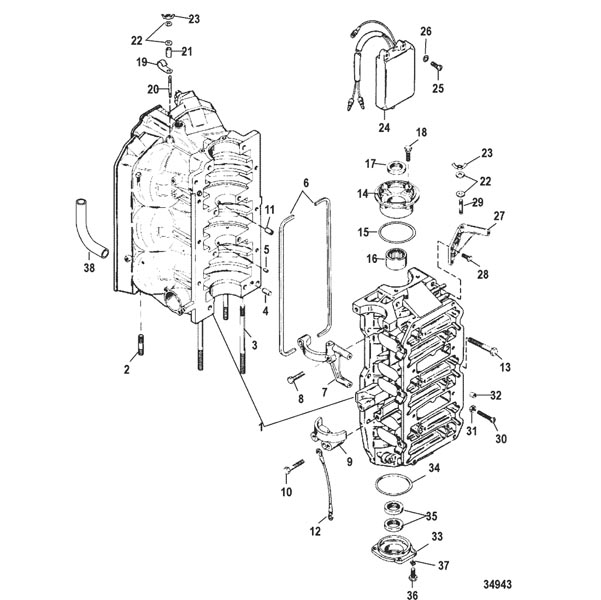

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- Driveshaft Housing (Offshore)
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump and Fuel Filter
- Gear Housing, Driveshaft – Counter/Standard – Sport Master
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Propeller Shaft – Counter – Sport Master
- Gear Housing, Propeller Shaft – Torque Master
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short/Offshore)
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets(Short/Offshore)
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 884-9763T65 | CYLINDER BLOCK | 1 | 9763T62 | |||||
| 2 | 16-8M0034443 | STUD, (.375-16/.375-24 x 2.040) | 2/6 | 847530 | |||||
| 2 | 16-8M0034430 | STUD, (.375-16/.375-24 x 2.490) | 4 | 847529 | |||||
| 3 | 16-670654 | STUD, (.375 x 5.620) | 2 | 670653 | |||||
| 3 | 16-8M0034437 | STUD, (.375-16/.375-24 x 5.750) | 2/4 | 847532 | |||||
| 3 | 16-8M0034454 | STUD, (.375 x 6.870) | 2 | 784384 | |||||
| 4 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625) | 2 | ||||||
| 5 | 17-8M0036405 | PIN (BEARING RACE) | 2 | 67296 | |||||
| 6 | 27-11338 | GASKET | 2 | ||||||
| 7 | 8M0088723 | COVER (UPPER) | 1 | 42249 | |||||
| 8 | 10-828213 | SCREW, (.312-18 x 1.500) Hex Flange | 2 | ||||||
| 9 | 76867 | COVER (LOWER) | 1 | ||||||
| 10 | 10-828214 | SCREW, (.312-18 x 2.00) Hex Flange | 2 | ||||||
| 11 | 23-99448 | BUSHING | 1 | ||||||
| 12 | 84-88807A20 | CABLE ASSEMBLY | 1 | ||||||
| 13 | 10-66717 | SCREW, (.375-16 x 3.250) | 8 | ||||||
| 13 | 10-74824 | SCREW, (.312-18 x 1.250) | 6 | ||||||
| 14 | 1159-858521T1 | END CAP ASSEMBLY | 1 | ||||||
| 15 | 25-54029 | O-RING, (2.800 x .103) | 1 | ||||||
| 16 | 31-16756A4 | BEARING KIT | 1 | ||||||
| 17 | 26-41953 | SEAL | 1 | ||||||
| 18 | 10-30225 | SCREW WITH LOCKWASHER, (.312-18 x 1.00) | 4 | ||||||
| 19 | 54-814634 | CLAMP | 1 | ||||||
| 20 | 16-15094 | STUD, (.190-32 x 1.870) | 1 | ||||||
| 21 | 23-67269 | SPACER | 1 | ||||||
| 22 | 12-49221 | WASHER, (.187 x .500 x .062) Neoprene | 3 | ||||||
| 23 | 11-816874 | WING NUT, (#10-32) | 3 | ||||||
| 24 | 87076A10 | IDLE SPEED CONTROL | 1 | ||||||
| 25 | 10-690201 | SCREW, (#10-32 x .875) | 3 | 69020 | |||||
| 26 | 12-38833 | WASHER | 3 | ||||||
| 27 | 422482 | BRACKET | 1 | 42248 | |||||
| 28 | 10-49668 | SCREW, (.250-20 x .750) | 2 | ||||||
| 29 | 16-8M0034435 | STUD, (#10-32 x 1.00) | 2 | 15093 | |||||
| 30 | 10-64022 | SCREW, (.250-20 x 2.125) | 1 | ||||||
| 31 | 11-64015 | NUT, (.250-20) | 1 | ||||||
| 32 | 26852 | CAP, Nylon | 1 | ||||||
| 33 | 1156-7809T1 | END CAP ASSEMBLY | 1 | ||||||
| 34 | 25-62700 | O-RING, (3.237 x .103) | 1 | ||||||
| 35 | 26-41953 | SEAL | 2 | ||||||
| 36 | 10-28636 | SCREW, (.250-20 x .750) | 4 | ||||||
| 37 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 4 | ||||||
| 38 | 32-8M0108355 | HOSE, (57.00 Inches Bulk) (Cyl's 3 thru 6) | 4 | 830756109 | |||||
| - | 27-813859A95 | GASKET SET | 1 | ||||||
| - | 809430T01 | POWERHEAD ASSEMBLY | 1 | 809430T95 |
