225 EFI Pro Max and Super Mag - Serial 0G857000 Thru 0T429939 - Swivel Bracket(Long)

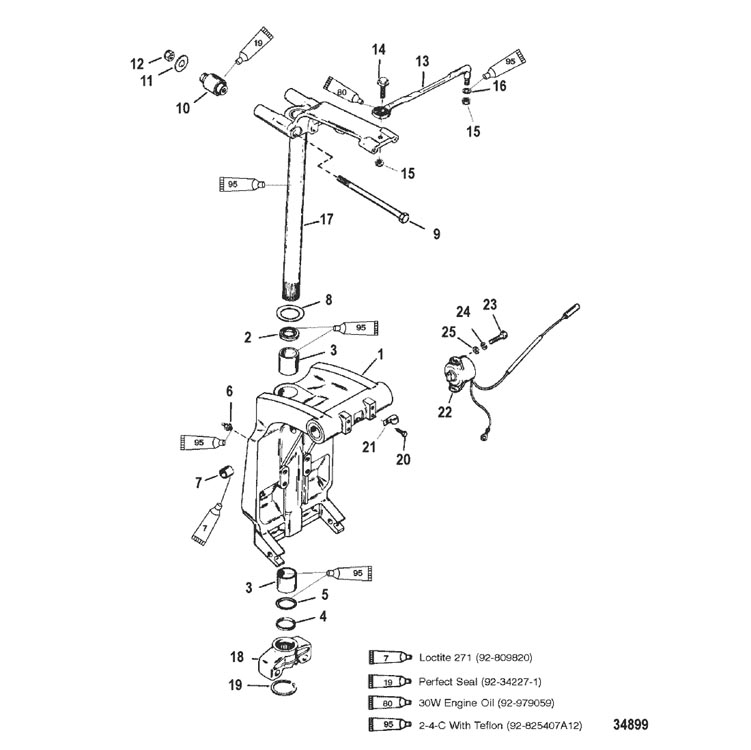

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- Driveshaft Housing (Offshore)
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump and Fuel Filter
- Gear Housing, Driveshaft – Counter/Standard – Sport Master
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Propeller Shaft – Counter – Sport Master
- Gear Housing, Propeller Shaft – Torque Master
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short/Offshore)
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets(Short/Offshore)
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1499-8M0102865 | SWIVEL BRACKET ASSEMBLY | 1 | 8710A20 | |||||
| 1 | 1499-8710T20 | SWIVEL BRACKET ASSEMBLY | 1 | No Longer Available | |||||
| 2 | 26-87735 | SEAL, Oil | 1 | ||||||
| 3 | 23-818764 | BUSHING | 2 | ||||||
| 4 | 23-816039 | SPACER | 1 | ||||||
| 5 | 25-33504 | O-RING | 1 | ||||||
| 6 | 22-74036 | FITTING, Grease | 2 | ||||||
| 7 | 23-821207 | BUSHING | 2 | ||||||
| 8 | 12-816432 | THRUST WASHER | 1 | ||||||
| 9 | 10-8M0000491 | SCREW, (.437-20 x 7.50) | 2 | 78689 | |||||
| 10 | 776981 | MOUNT | 2 | ||||||
| 11 | 12-78688 | WASHER | 2 | 814432 | |||||
| 12 | 11-34933 | NUT, (.437-20) Stainless Steel | 2 | ||||||
| 13 | 92876A12 | LINK ASSEMBLY, Steering | 1 | 92876A1 | |||||
| 14 | 10-849838 | SCREW, (.375-24 x 1.250) | 1 | ||||||
| 15 | 11-826709113 | NUT, (.375-24) | 2 | 34863 | |||||
| 16 | 12-34931 | WASHER, (.406 x .734 x .063) Stainless Steel | 2 | ||||||
| 17 | 17-826432A2 | SWIVEL PIN ASSEMBLY, Steering Arm | 1 | No Longer Available | |||||
| 17 | 17-826432A2 | SWIVEL PIN ASSEMBLY, Steering Arm | 1 | 67706A56 | |||||
| 18 | 878182T | YOKE ASSEMBLY, Bottom | 1 | No Longer Available | |||||
| 18 | 878182T | YOKE ASSEMBLY, Bottom | 1 | No Longer Available | |||||
| 19 | 53-67684 | RING, Retaining | 1 | ||||||
| 20 | 10-64014 | SCREW, (.250-28 x .500) | 2 | ||||||
| 21 | 54-54457 | J CLIP | 1 | ||||||
| 23 | 10-852368 | SCREW, (#10-24 x .750) | 2 | ||||||
| 24 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 25 | 12-89302 | WASHER, (.203 x .406 x .040) | 2 |
