225 EFI Pro Max and Super Mag - Serial 0G857000 Thru 0T429939 - Driveshaft Housing (Offshore)

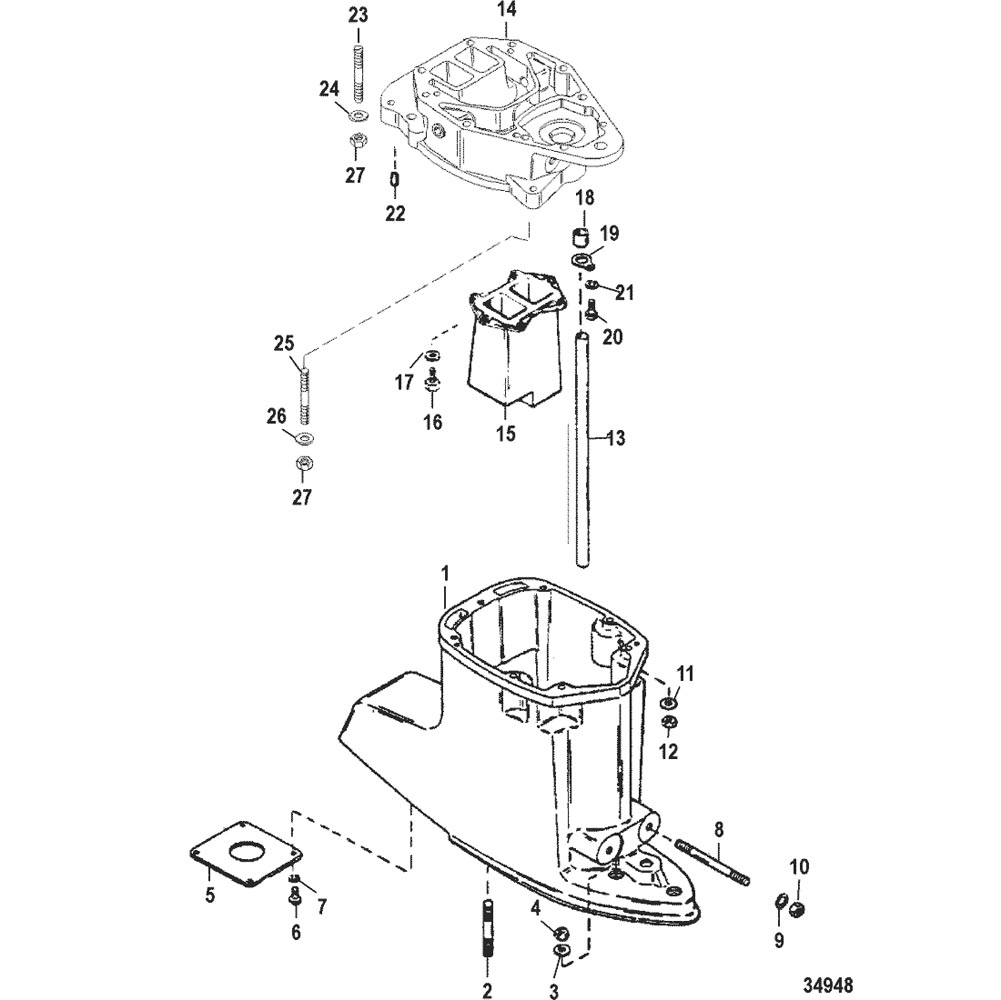

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- Driveshaft Housing (Offshore)
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump and Fuel Filter
- Gear Housing, Driveshaft – Counter/Standard – Sport Master
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Propeller Shaft – Counter – Sport Master
- Gear Housing, Propeller Shaft – Torque Master
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short/Offshore)
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets(Short/Offshore)
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1581-8683A57 | HOUSING ASSEMBLY, Driveshaft | 1 | 8683T57 | No Longer Available | ||||
| 2 | 16-59579 | STUD, (.437-14/.437-20 x 2.812) | 3 | ||||||
| 3 | 12-822836 | WASHER, (.445 x .805 x .108) | 3 | ||||||
| 4 | 11-859116 | NUT, (.4375-20) | 3 | 134391 | |||||
| 5 | 818261 | PLATE, Exhaust Block Off | 1 | ||||||
| 6 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel | 4 | ||||||
| 7 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 4 | ||||||
| 8 | 16-818908 | STUD, (.500-13/.500-20 x 4.120) | 2 | ||||||
| 9 | 12-816056 | WASHER | 2 | ||||||
| 10 | 11-898832 | NUT, (.500-20) | 2 | 28040 | |||||
| 11 | 12-822838 | WASHER, (.401 x .745 x .097) | 10 | ||||||
| 12 | 11-82671013 | NUT, (.375-24) | 8 | 34932 | |||||
| 12 | 11-826709113 | NUT, (.375-24) Stainless Steel | 2 | ||||||
| 13 | 32-8476503 | TUBE, Water | 1 | ||||||
| 14 | 848284T11 | PLATE ASSEMBLY, Extension - Exhaust | 1 | No Longer Available | |||||
| 15 | 848545T1 | EXTENSION, Exhaust | 1 | ||||||
| 16 | 10-823258 | SCREW, (.312-18 x 1.250) | 6 | ||||||
| 17 | 12-822714 | WASHER | 6 | ||||||
| 18 | 26-88397 | SEAL | 1 | ||||||
| 19 | 8476581 | RETAINER | 1 | ||||||
| 20 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel | 1 | ||||||
| 21 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 1 | ||||||
| 22 | 17-8M0043826 | PIN, Dowel (.875), PLATE TO POWERHEAD | 2 | 823106 | |||||
| 22 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625), PLATE TO DRIVESHAFT HOUSING | 2 | ||||||
| 23 | 16-56295 | STUD, (.437 x 2.69) | 3 | ||||||
| 24 | 12-822836 | WASHER, (.445 x .805 x .108) | 3 | ||||||
| 25 | 16-54674 | STUD, (.437-14/.437-20 x 2.250) | 2 | ||||||
| 26 | 12-822836 | WASHER, (.445 x .805 x .108) | 2 | ||||||
| 27 | 11-859116 | NUT, (.4375-20) | 5 | 134391 |
