225 EFI Pro Max and Super Mag - Serial 0G857000 Thru 0T429939 - Vapor Separator Components

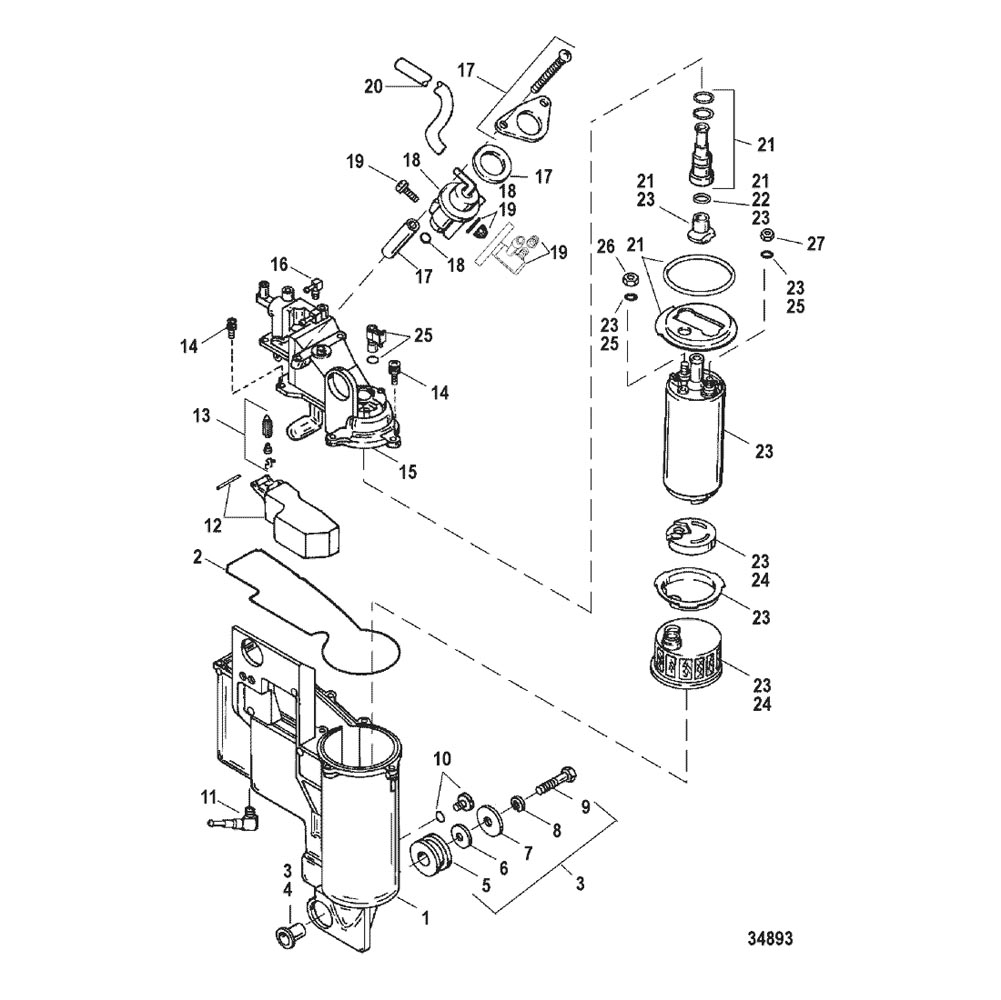

Section Drawing: (Hover or click to view larger)
