225 EFI Pro Max and Super Mag - Serial 0G857000 Thru 0T429939 - Oil Injection Components

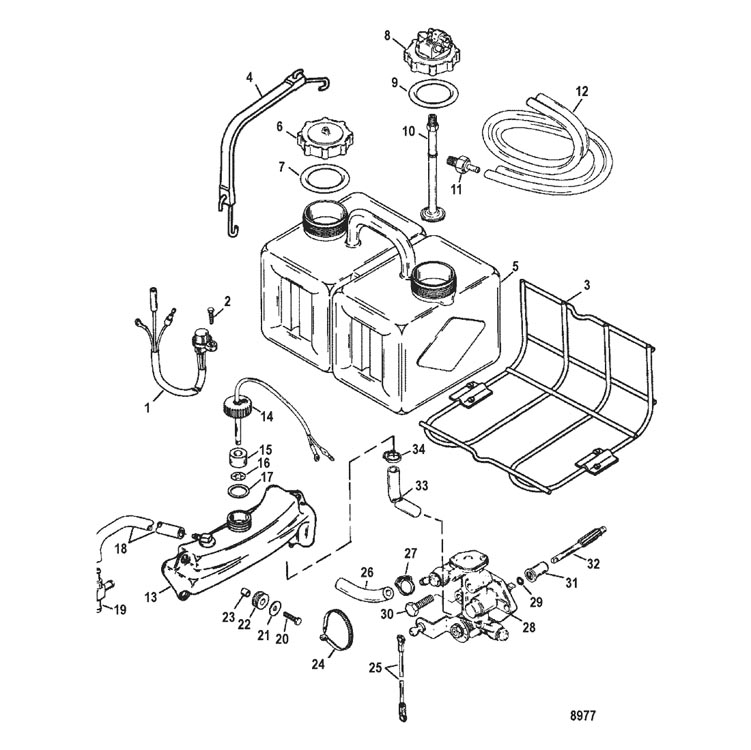

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 12430A4         SENSOR ASSEMBLY 1
2 10-878609         SCREW, (#10-16 x .600) 1 8128321
3 824954A1         BRACKET KIT, Oil Reservoir Hold Down 1
4 12323A1         CORD/HOOK KIT 1
5 15943A1         TANK ASSEMBLY, Oil 1 15943A2
6 36-43298A2         CAP ASSEMBLY 1
7 25-11332         O-RING, (2.225 x .210) 1
8 816190A4         HOUSING ASSEMBLY, Adapter 1 816190A3
9 25-11332         O-RING, (2.225 x .210) 1
10 32-99802         TUBE 1
11 21-8781051         FITTING (CRANKCASE) 1 43278
12 32-99439         HOSE, (114.00 Inches) 1
13 994436         RESERVOIR, Oil 1 994433
14 36-43300A9         CAP ASSEMBLY 1
15 99022A1         FLOAT ASSEMBLY 1
16 11-99265         PUSH NUT 1
17 27-43307T         GASKET 1 43307
18 32-8M0108355         HOSE, (57.00 Inches Bulk) (Cut to 5-1/4 Inches) 1 830756109
18 32-8M0108355         HOSE, (57.00 Inches Bulk) (Cut to 6 Inches) 1 830756109
19 22-42425         TEE 1   No Longer Available
19 22-424254         FITTING 1
20 10-690201         SCREW, (#10-32 x .875) 3 69020
21 12-42118         WASHER 6
22 25-42117         GROMMET 3
23 23-42116         BUSHING 3
24 54-816311T         TIE STRAP, (8.00 Inches) AR 816311
25 1938512         LINK ASSEMBLY 1
26 32-82381335         TUBING, (10.00 Inches Bulk) (Cut to 7 IN.) 1 82381325
27 54-816311T         TIE STRAP, (8.00 Inches) 2 816311
28 815699T         PUMP ASSEMBLY, Oil 1 815699
29 25-11379         O-RING 1
30 10-32228         SCREW, (#10-32 x .625) 1
30 10-41507         SCREW, (#10-32 x 1.120) 1
31 23-41429A2         BEARING ASSEMBLY 1
32 43-14563         GEAR, Driven 1
33 32-82381455         TUBING, (15.500 Inches Bulk) (Cut to 4-3/4 IN.) 1 82381436
34 54-816311T         TIE STRAP, (8.00 Inches) 2 816311
- 809839T94         POWERHEAD ASSEMBLY 1 809839A94
- 808603T94         POWERHEAD ASSEMBLY 1 808603A94 No Longer Available
