225 EFI Pro Max and Super Mag - Serial 0G857000 Thru 0T429939 - Temperature Sensor

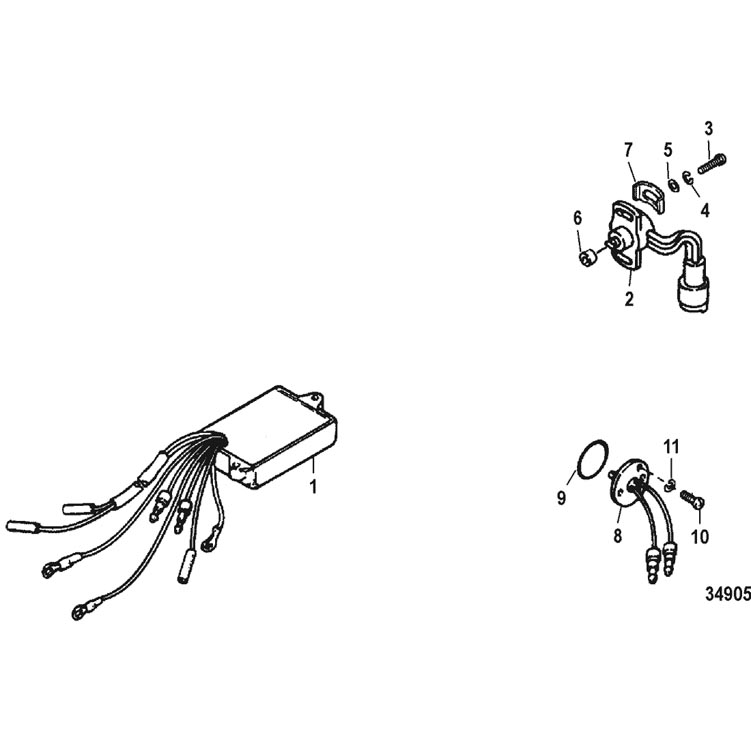

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- Driveshaft Housing (Offshore)
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump and Fuel Filter
- Gear Housing, Driveshaft – Counter/Standard – Sport Master
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Propeller Shaft – Counter – Sport Master
- Gear Housing, Propeller Shaft – Torque Master
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short/Offshore)
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets(Short/Offshore)
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 41470A25 | MODULE ASSEMBLY, Oil Injection Warning | 1 | ||||||
| 2 | 14851T03 | INDICATOR, Throttle Position | 1 | 14851 | |||||
| 3 | 10-15150 | SCREW, (#8-32 x .625) | 2 | ||||||
| 4 | 13-26995 | LOCKWASHER, (#8) Stainless Steel | 2 | ||||||
| 5 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | 2 | ||||||
| 6 | 23-15885 | SLEEVE | 1 | ||||||
| 7 | 813501 | PLATE | 2 | ||||||
| 8 | 13221T01 | SENSOR ASSEMBLY, Temperature | 1 | 13221A1 | |||||
| 9 | 25-45711 | 676-9-76553 | O-RING, (.612 x .103) | 1 | |||||
| 10 | 10-57583T | SCREW, (#8-32 x .375) | 3 | 57583 | |||||
| 11 | 13-26995 | LOCKWASHER, (#8) Stainless Steel | 3 | ||||||
| - | 27-823142A98 | GASKET SET, Engine | 1 |
