225 EFI Pro Max and Super Mag - Serial 0G857000 Thru 0T429939 - Crankshaft, Pistons and Connecting Rods

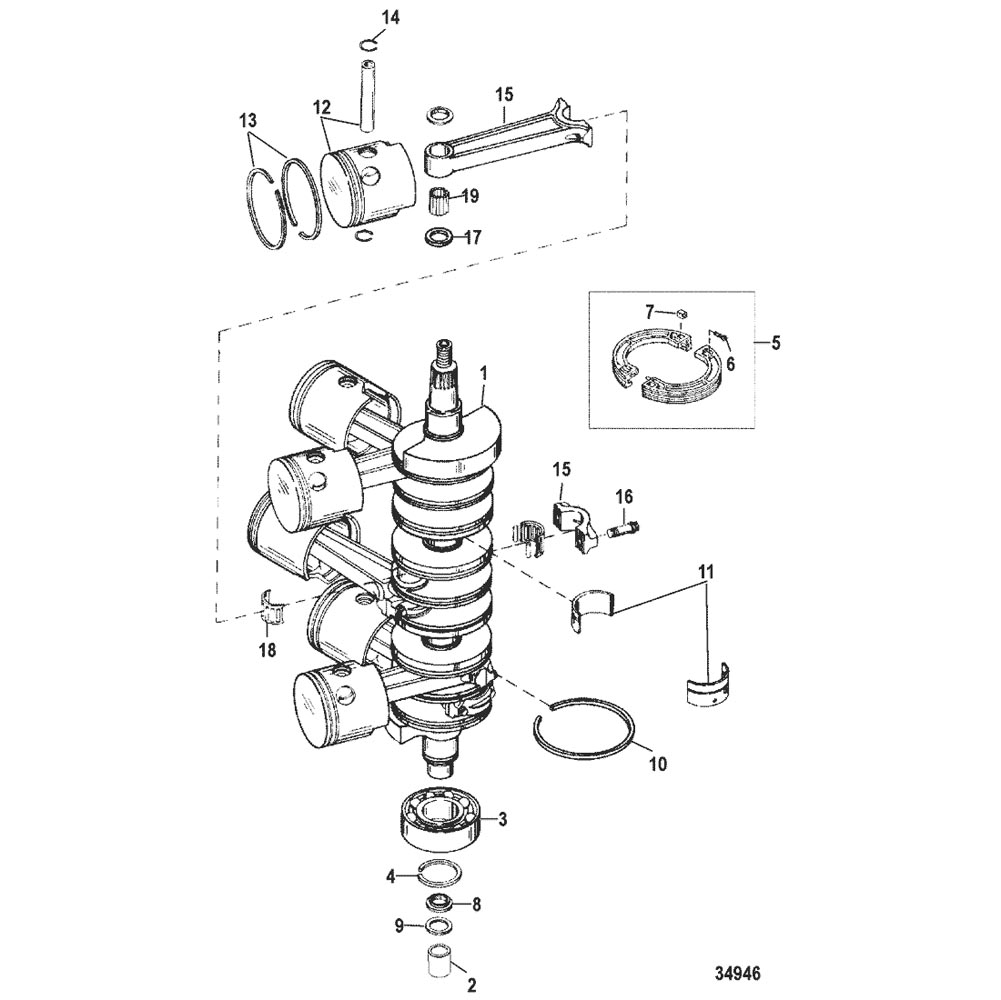

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 455-850690T1         CRANKSHAFT ASSEMBLY 1 No Longer Available
2 78662         WEAR SLEEVE 1
3 30-67923T         BEARING, Ball (LOWER) 1
4 53-67446         RING 1
5 43-14513A09         GEAR SEGMENT KIT, Drive 1 14513A2
6 10-813073         SCREW, (#6-32 x .620) Socket Head 2
7 11-813134         NUT, (#6-32) Special 2
8 54196A6         CARRIER ASSEMBLY 1
9 65800         PACKING 1
10 39-67377T         RING, Sealing 7 67377
11 31-16756A6         BEARING KIT 2
12 785-841089T1         PISTON ASSEMBLY 3 9738T11
12 785-841088T1         PISTON ASSEMBLY 3 9737T11
13 39-848202A12         RING SET 1
14 40-857196         RING, Lock 12 52035
15 644-8M0081411         CONNECTING ROD ASSEMBLY 6
16 10-763491         SCREW, (.312-24 x .875) 12
17 12-8M0012298         WASHER 12 812876
18 31-8M0082405         BEARING KIT 6
19 29-822553         BEARING, Needle 174
- 27-813859A95         GASKET SET 1
- 809430T01         POWERHEAD ASSEMBLY 1 809430T95
