225 EFI Pro Max and Super Mag - Serial 0G857000 Thru 0T429939 - Gear Housing, Driveshaft – Counter/Standard – Sport Master

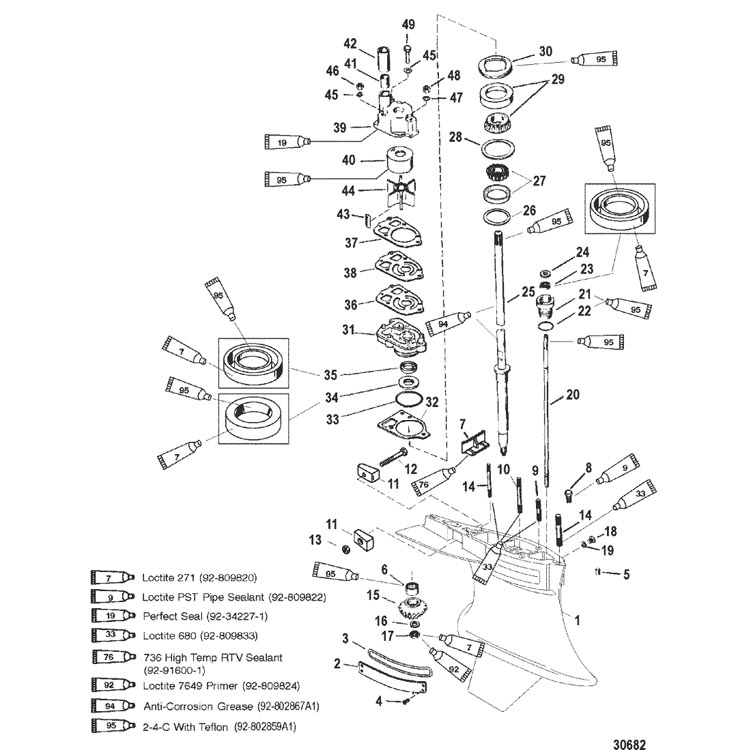

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- Driveshaft Housing (Offshore)
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump and Fuel Filter
- Gear Housing, Driveshaft – Counter/Standard – Sport Master
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Propeller Shaft – Counter – Sport Master
- Gear Housing, Propeller Shaft – Torque Master
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short/Offshore)
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets(Short/Offshore)
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Note: THE BASIC GEAR HOUSING LISTED IS GENERIC. IT DOES NOT INCLUDE STUDS. | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1687-8M0084203 | GEAR HOUSING ASSEMBLY, Basic-Without Torque Tab | 1 | 848474A39 | |||||
| 2 | 847950T3 | COVER | 2 | 8479503 | No Longer Available | ||||
| 3 | 25-34776 | O-RING | 2 | ||||||
| 4 | 10-815904 | SCREW, (#10-32 x .500) | 12 | ||||||
| 5 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625) | 2 | ||||||
| 6 | 31-42647A1 | BEARING ASSEMBLY, Roller | 1 | ||||||
| 7 | 8M0039169 | FILLER BLOCK | 1 | 67891 | |||||
| 8 | 22-847949 | PLUG, Pipe | 1 | ||||||
| 9 | 16-8M0034463 | STUD, (.312-18/.324-24 x 3.380) | 1 | 562972 | |||||
| 10 | 16-69501 | STUD (5/16 X 3-1/4 IN.) | 1 | ||||||
| 11 | 16-59579 | STUD, (.437-14/.437-20 x 2.812) | 3 | ||||||
| 11 | 16-786382 | STUD, (.437-14/.437-20 x 3.120) | 1 | ||||||
| 11 | 16-579203 | STUD, (.437-14/.437-20 x 2.060) | 2 | ||||||
| 11 | 16-74730 | STUD (7/16 X 7.06 IN.) | 2 | No Longer Available | |||||
| 11 | 16-74732 | STUD (7/16 X 7.69 IN.) | 3 | No Longer Available | |||||
| 11 | 16-78639 | STUD (7/16 X 8-1/8 IN.) | 1 | No Longer Available | |||||
| 12 | 826134Q | ANODE | 2 | 826134 | |||||
| 13 | 10-4000333 | SCREW, (M6 x 40) | 1 | ||||||
| 14 | 11-401386 | NUT, (M6) | 1 | 8268336 | |||||
| 15 | NSS | Pinion Gear-Part of 43-15845A2 or 43-817515A2 | 1 | Not Sold Separate | |||||
| 16 | 12-92721 | WASHER | 1 | ||||||
| 17 | 11-35921 | NUT, (.625-18) | 1 | ||||||
| 18 | 10-79953Q04 | SCREW KIT, (.375-16 x .250) | 1 | 79953A2 | |||||
| 19 | 12-191833 | WASHER, Fiber | 1 | 19183 | |||||
| 20 | 789022 | SHIFT SHAFT, LOWER | 1 | ||||||
| 21 | 23-77631A2 | BUSHING ASSEMBLY | 1 | ||||||
| 22 | 25-25439 | O-RING, (.862 x .103) | 1 | ||||||
| 23 | 26-8164641 | SEAL, Oil | 1 | ||||||
| 24 | 12-77674 | WASHER | 1 | ||||||
| 25 | 45-848449A4 | DRIVESHAFT ASSEMBLY | 1 | ||||||
| 25 | 45-848449A5 | DRIVESHAFT ASSEMBLY | 1 | ||||||
| 25 | 45-848449A6 | DRIVESHAFT ASSEMBLY | 1 | ||||||
| 26 | 15-8M0063268 | SHIM ASSEMBLY | 1 | No Longer Available | |||||
| 27 | 31-48939A2 | BEARING, Tapered Roller | 1 | ||||||
| 28 | 15-8M0063267 | SHIM SET | AR | No Longer Available | |||||
| 29 | 31-36387A1 | BEARING ASSEMBLY, Roller/Cup | 1 | ||||||
| 30 | 8245191 | RETAINER | 1 | 824519 | |||||
| 31 | 46-44292A3 | BASE ASSEMBLY, Water Pump | 1 | ||||||
| 32 | 27-426311 | GASKET | 1 | ||||||
| 33 | 25-896523 | O-RING, (2.175 x .175) | 1 | 90011 | |||||
| 34 | 26-89238 | SEAL, Oil | 1 | ||||||
| 35 | 26-16977 | SEAL, Oil | 1 | ||||||
| 36 | 27-18051 | GASKET, LOWER | 1 | ||||||
| 37 | 27-858524 | GASKET, UPPER | 1 | 856091 | |||||
| 38 | 324351 | FACE PLATE | 1 | 32435 | |||||
| 39 | 46-96148T1 | BODY ASSEMBLY, Water Pump | 1 | 96148A1 | |||||
| 40 | 48752T | INSERT | 1 | 48752 | |||||
| 41 | 26-38970 | SEAL | 1 | ||||||
| 42 | 23-29804T | SLEEVE | 1 | 29804 | |||||
| 43 | 28-8M0032834 | KEY | 1 | 56654 | |||||
| 44 | 47-89984T4 | IMPELLER | 1 | 899844 | |||||
| 45 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 46 | 11-8267119 | NUT, (.250-28) | 2 | 13438 | |||||
| 47 | 12-36001 | WASHER | 1 | ||||||
| 48 | 11-13436 | NUT | 1 | ||||||
| 49 | 10-96411 | SCREW, (#14-8 x 2.25) | 1 | ||||||
| - | 26-89238A3 | SEAL KIT, Gear Housing | 1 | ||||||
| - | 56-59579 | STUD KIT | 1 | No Longer Available | |||||
| - | 56-90415A25 | STUD KIT | 1 | No Longer Available | |||||
