225 EFI Pro Max and Super Mag - Serial 0G857000 Thru 0T429939 - Throttle Lever and Shift Shaft

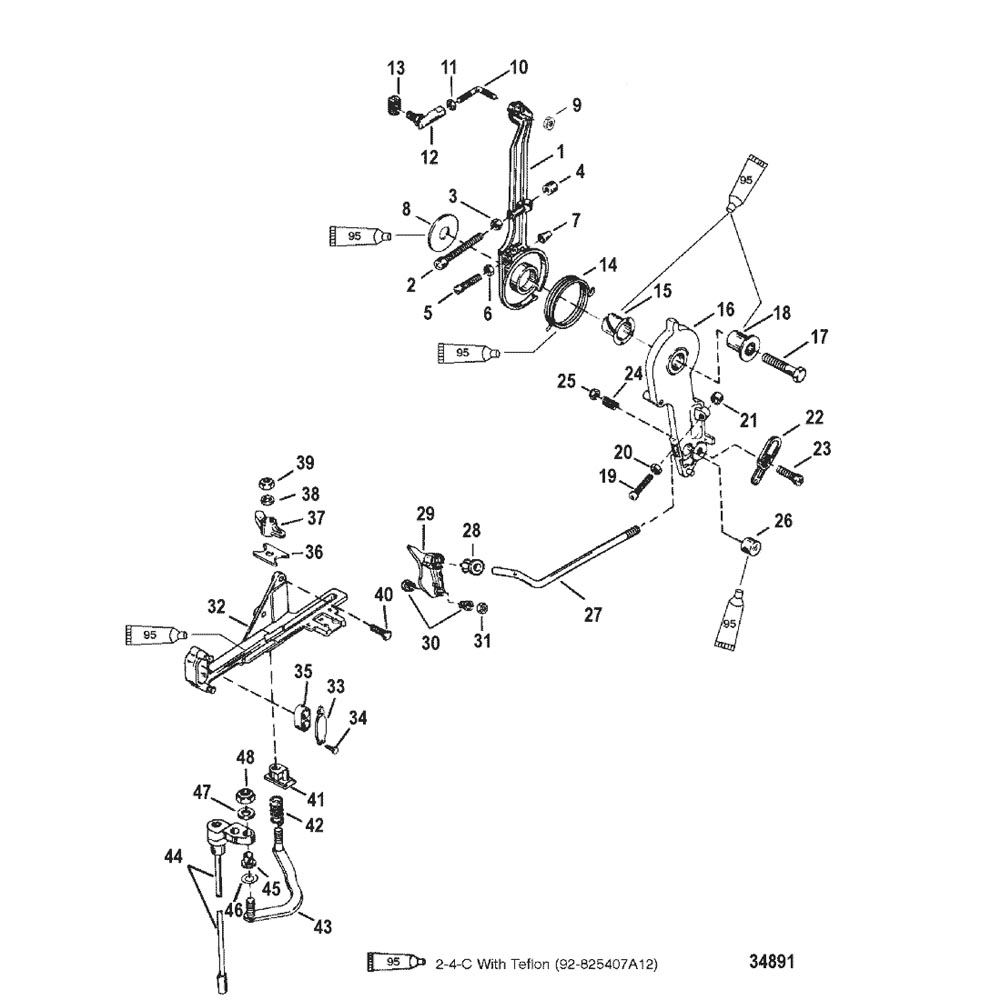

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- Driveshaft Housing (Offshore)
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump and Fuel Filter
- Gear Housing, Driveshaft – Counter/Standard – Sport Master
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Propeller Shaft – Counter – Sport Master
- Gear Housing, Propeller Shaft – Torque Master
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short/Offshore)
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets(Short/Offshore)
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 41094A3 | LEVER ASSEMBLY | 1 | ||||||
| 2 | 10-64022 | SCREW, (.250-20 x 2.125) | 1 | ||||||
| 3 | 11-64015 | NUT, (.250-20) | 1 | ||||||
| 4 | 26852 | CAP, Nylon | 1 | ||||||
| 5 | 10-13627 | SCREW, (.190-32 x 1.250) | 1 | ||||||
| 6 | 11-68219 | NUT, (#10-32) Stainless Steel | 1 | ||||||
| 7 | 48039 | CAP | 1 | ||||||
| 8 | 12-46765 | WASHER, (.390 x 1.50 x .120) | 1 | ||||||
| 9 | 11-46438 | NUT, (#10-32) | 1 | ||||||
| 10 | 76035 | ROD | 1 | ||||||
| 11 | 11-45076 | NUT, (#10-32) Brass | 1 | ||||||
| 12 | 62459T | BALL JOINT ASSEMBLY | 1 | 62459 | |||||
| 13 | 74897T | PIVOT | 1 | 74897 | |||||
| 14 | 24-823235 | SPRING | 1 | ||||||
| 15 | 23-55171 | BUSHING | 1 | ||||||
| 16 | 410952 | LEVER | 1 | 41095 | |||||
| 17 | 10-818165 | SCREW, (.375-16 x 1.75) | 1 | ||||||
| 18 | 23-55164 | BUSHING | 1 | ||||||
| 19 | 10-64022 | SCREW, (.250-20 x 2.125) | 1 | ||||||
| 20 | 11-64015 | NUT, (.250-20) | 1 | ||||||
| 21 | 26852 | CAP, Nylon | 1 | ||||||
| 22 | 39483 | LATCH | 1 | ||||||
| 23 | 10-69026 | SCREW, (.250-28 x .880) | 1 | ||||||
| 24 | 24-20099 | SPRING | 1 | ||||||
| 25 | 11-826709109 | NUT, (.250-28) | 1 | 35045 | |||||
| 26 | 14638 | BARREL | 1 | ||||||
| 27 | 14634 | ROD | 1 | ||||||
| 28 | 23-932481 | BUSHING | 1 | ||||||
| 29 | 8142392 | CAM | 1 | 8142391 | |||||
| 30 | 23-26856 | BUSHING | 2 | ||||||
| 31 | 11-826709109 | NUT, (.250-28) | 1 | 35045 | |||||
| 32 | 814283A2 | BRACKET ASSEMBLY | 1 | ||||||
| 33 | 98889 | LATCH | 1 | ||||||
| 34 | 10-42975 | DRIVE SCREW | 2 | ||||||
| 35 | 39519 | CUP | 1 | ||||||
| 36 | 52100 | WEAR PLATE | 1 | ||||||
| 37 | 8M0036768 | LATCH | 1 | 38279 | |||||
| 38 | 12-69056 | WASHER, (.255 x .620 x .030) Stainless Steel | 1 | ||||||
| 39 | 11-826709109 | NUT, (.250-28) | 1 | 35045 | |||||
| 40 | 10-53167T | SCREW, (.312-18 x .880) | 3 | 53167 | |||||
| 41 | 814284 | GUIDE BLOCK | 1 | ||||||
| 42 | 24-20099 | SPRING | 1 | ||||||
| 43 | 67073A1 | LINK ROD ASSEMBLY | 1 | ||||||
| 44 | 79932A18 | SHIFT SHAFT ASSEMBLY | 1 | ||||||
| 44 | 79932A16 | SHIFT SHAFT ASSEMBLY | 1 | ||||||
| 45 | 23-26856 | BUSHING | 1 | ||||||
| 46 | 13-29720 | WAVE WASHER | 1 | ||||||
| 47 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 1 | ||||||
| 48 | 11-826709109 | NUT, (.250-28) | 1 | 35045 |
