225 EFI Pro Max and Super Mag - Serial 0G857000 Thru 0T429939 - Exhaust Divider and Exhaust Plate

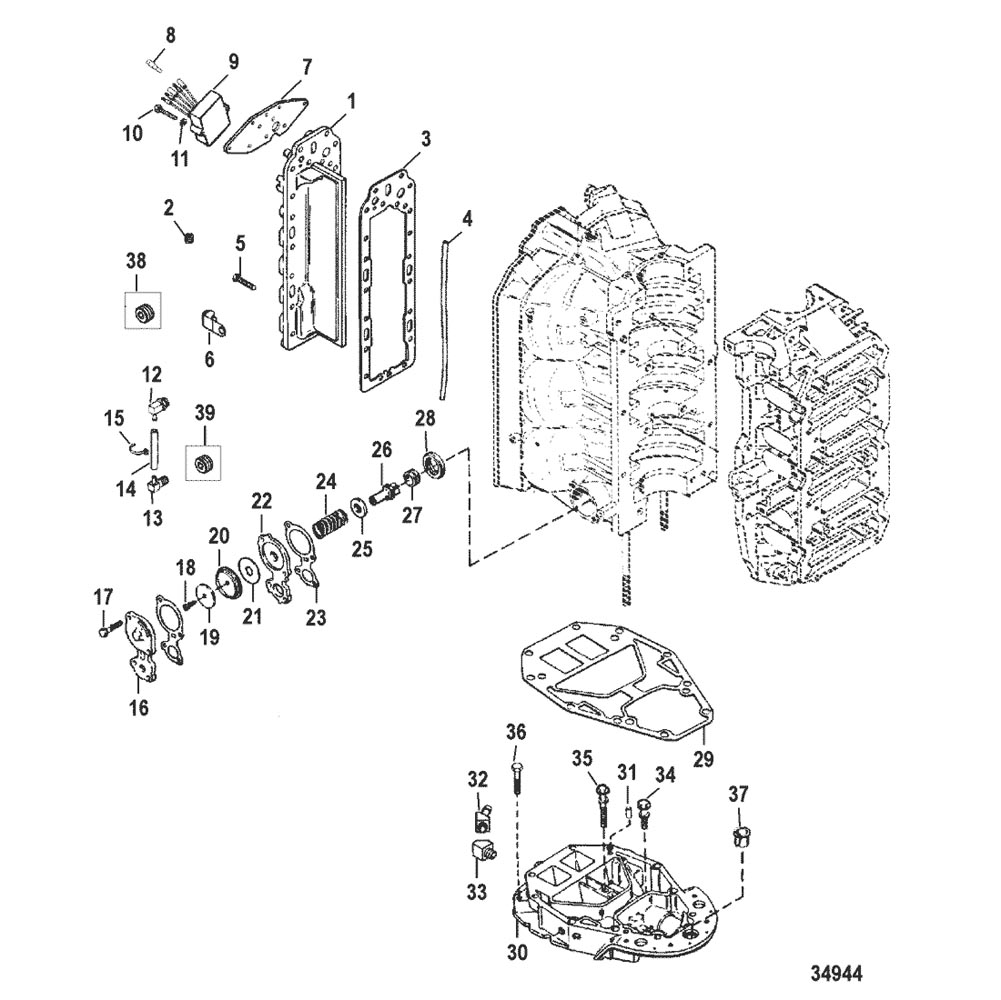

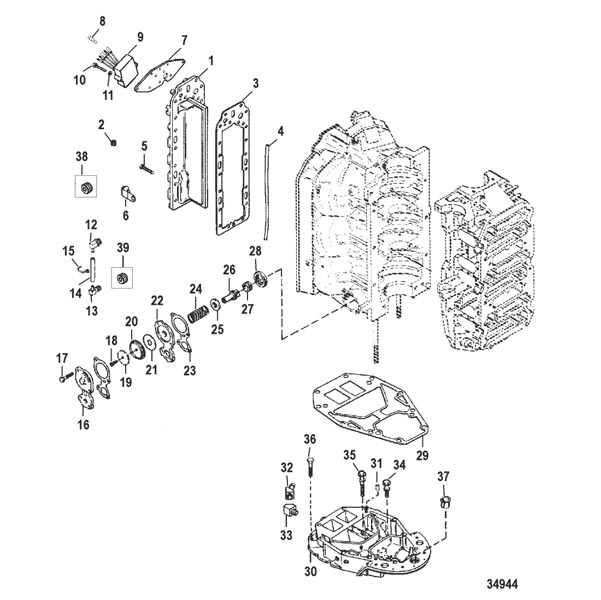

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- Driveshaft Housing (Offshore)
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump and Fuel Filter
- Gear Housing, Driveshaft – Counter/Standard – Sport Master
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Propeller Shaft – Counter – Sport Master
- Gear Housing, Propeller Shaft – Torque Master
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short/Offshore)
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets(Short/Offshore)
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 815552T1 | PLATE, Exhaust Divider | 1 | ||||||
| 2 | 22-328022 | PLUG, Pipe (.125-27) Brass | 1 | ||||||
| 3 | 27-847525004 | GASKET | 1 | 8475251 | |||||
| 4 | 26-814754 | SEAL, (12.50 Inches) | 1 | ||||||
| 5 | 10-848496 | SCREW, (.312-18 x 1.50) | 18 | ||||||
| 5 | 10-848497 | SCREW, (.312-18 x 1.00) | 2 | ||||||
| 6 | 54-814634 | CLAMP | AR | ||||||
| 6 | 54-642352 | J CLIP | 1 | ||||||
| 7 | 8478951 | PLATE, Regulator | 1 | ||||||
| 8 | 13541 | PLUG, Male | 2 | ||||||
| 9 | 8M0084173 | REGULATOR | 1 | 854515T1 | |||||
| 10 | 10-69697 | SCREW, (.250-28 x 1.50) | 4 | No Longer Available | |||||
| 11 | 11-826709109 | NUT, (.250-28) | 4 | 35045 | |||||
| 12 | 22-8144301 | FITTING | 1 | ||||||
| 13 | 22-920071 | FITTING, (90 Degree) | 1 | ||||||
| 14 | 32-8M0108355 | HOSE, (57.00 Inches Bulk) (23-1/2 IN.) | 1 | 830756109 | |||||
| 15 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
| 16 | 8M0039767 | COVER | 1 | 68729 | |||||
| 17 | 10-74824 | SCREW, (.312-18 x 1.250) | 4 | ||||||
| 18 | 10-69570 | SCREW, (#10-16 x .750) | 1 | ||||||
| 19 | 12-76451 | WASHER | 1 | ||||||
| 20 | 144791 | DIAPHRAGM | 1 | 14479 | |||||
| 21 | 16496 | DEFLECTOR, Water | 1 | ||||||
| 22 | 16497A1 | PLATE | 1 | ||||||
| 23 | 27-78690002 | GASKET | 2 | 78690 | |||||
| 24 | 24-64878 | SPRING, (Black) | 1 | ||||||
| 25 | 12-85303 | WASHER | 1 | ||||||
| 26 | 14480 | POPPET | 1 | ||||||
| 27 | 25-64872 | GROMMET | 1 | ||||||
| 28 | 65848 | CARRIER | 1 | ||||||
| 29 | 27-8231422 | GASKET | 2 | ||||||
| 30 | 18260T5 | PLATE ASSEMBLY, Exhaust | 1 | ||||||
| 31 | 17-8M0043826 | PIN, Dowel (.875) | 2 | 823106 | |||||
| 32 | 22-14867 | ELBOW, 45 Degree | 1 | ||||||
| 33 | 22-8M0109010 | FITTING, Elbow (45 Degree) | 1 | 29085 | |||||
| 34 | 10-66727 | SCREW, (.312-18 x 1.250) | 1 | ||||||
| 35 | 10-68783 | SCREW, (.312-18 x 2.50) | 1 | ||||||
| 36 | 10-898833 | SCREW, (.375-16 x 3.50) | 3 | 66725 | |||||
| 37 | 23-27132 | BUSHING | 1 | ||||||
| 38 | 22-384071 | FITTING, (1/2-14) (1/2-14) | 1 | ||||||
| 39 | 22-73379 | PLUG, (.250-18) | 1 | ||||||
| - | 27-813859A95 | GASKET SET | 1 | ||||||
| - | 809430T01 | POWERHEAD ASSEMBLY | 1 | 809430T95 |
