Your shopping cart is currently empty.
225 EFI Pro Max and Super Mag - Serial 0G857000 Thru 0T429939 - Fuel Pump and Fuel Filter

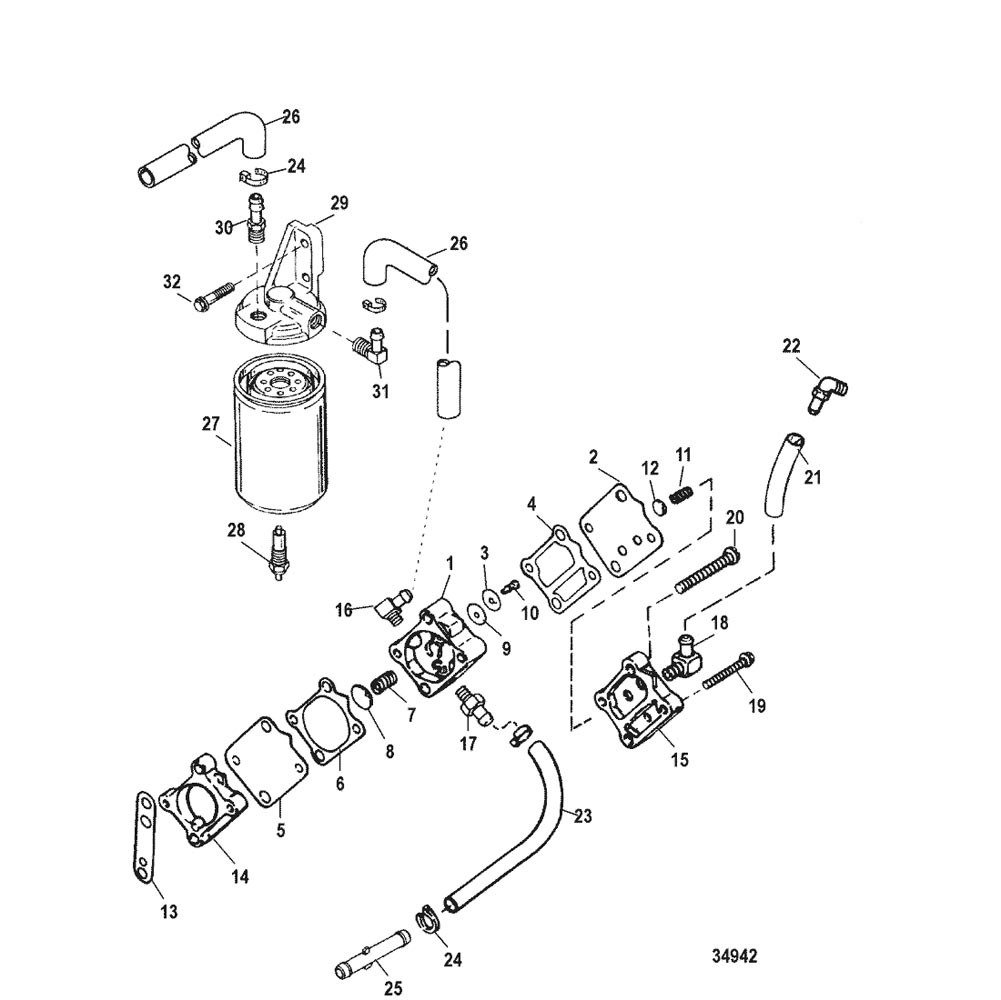

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing
- Driveshaft Housing (Offshore)
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel Management System
- Fuel Pump and Fuel Filter
- Gear Housing, Driveshaft – Counter/Standard – Sport Master
- Gear Housing, Driveshaft – Torque Master
- Gear Housing, Propeller Shaft – Counter – Sport Master
- Gear Housing, Propeller Shaft – Torque Master
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short/Offshore)
- Temperature Sensor
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets (Long)
- Transom Brackets(Short/Offshore)
- Trim Solenoid Plate
- Vapor Separator Components
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 14360T75 | PUMP ASSEMBLY, Fuel | 1 | 14360A53 | |||||
| 2 | 21-857005A1 | DIAPHAGM KIT | 1 | 42990A10 | |||||
| 3 | NSS | Check Valve-Rubber | 2 | ||||||
| 4 | NSS | Gasket-Boost | 1 | ||||||
| 5 | NSS | Diaphragm | 2 | ||||||
| 6 | NSS | Gasket-Pulse | 1 | ||||||
| 7 | NSS | Spring | 1 | ||||||
| 8 | NSS | Cap | 1 | ||||||
| 9 | NSS | Check Valve | 2 | ||||||
| 10 | NSS | Retainer | 2 | ||||||
| 11 | NSS | Spring | 1 | ||||||
| 12 | NSS | Cap | 1 | ||||||
| 13 | 27-987691 | GASKET, Base | 1 | ||||||
| 14 | 144303 | BASE | 1 | ||||||
| 15 | 987752 | PLATE | 1 | ||||||
| 16 | 22-996642 | ELBOW | 1 | 996641 | |||||
| 17 | 22-291112 | CONNECTOR | 1 | 29111 | |||||
| 18 | 22-433351 | CONNECTOR, 90 Degree (.125-27) Nylon | 1 | 43335 | |||||
| 19 | 10-82104540 | SCREW, (M5 x 40) | 2 | ||||||
| 20 | 10-16452 | SCREW, (#12-24 x 2.00) | 2 | ||||||
| 21 | 32-9912878 | HOSE, (.187) (26.00 Inches Bulk) (7-1/2 IN.) | 1 | ||||||
| 22 | 22-997511 | FITTING, (.0625-27) Brass | 1 | 99751 | |||||
| 23 | 32-8M0108349 | TUBING, (28.00 Inches Bulk) (13-1/2 IN.) | 1 | 83075780 | |||||
| 24 | 54-816311T | TIE STRAP, (8.00 Inches) | AR | 816311 | |||||
| 25 | 22-822769 | CONNECTOR | 1 | ||||||
| 26 | 32-1350385 | TUBING, (33.00 Inches Bulk) (15-1/2 IN.)(19 IN.) | 2 | ||||||
| 27 | 35-18458Q4 | FILTER KIT | 1 | 18458A4 | |||||
| 28 | 8285861 | PROBE | 1 | 828586 | |||||
| 29 | 13170A3 | BASE | 1 | ||||||
| 30 | 22-89771Q2 | CONNECTOR, (.250-18) (STRAIGHT) | 1 | 897712 | |||||
| 31 | 22-136071 | ELBOW | 1 | ||||||
| 32 | 10-455611 | SCREW, (.250-20 x 1.12) | 2 | 45561 | |||||
| - | 27-813859A95 | GASKET SET | 1 | ||||||
| - | 809430T01 | POWERHEAD ASSEMBLY | 1 | 809430T95 |
