525 SC GM 454 V-8 1991-1992 - Serial 0D456000 Thru 0F348963 - Alternator Assembly (Prestolite 8EM2003KA)

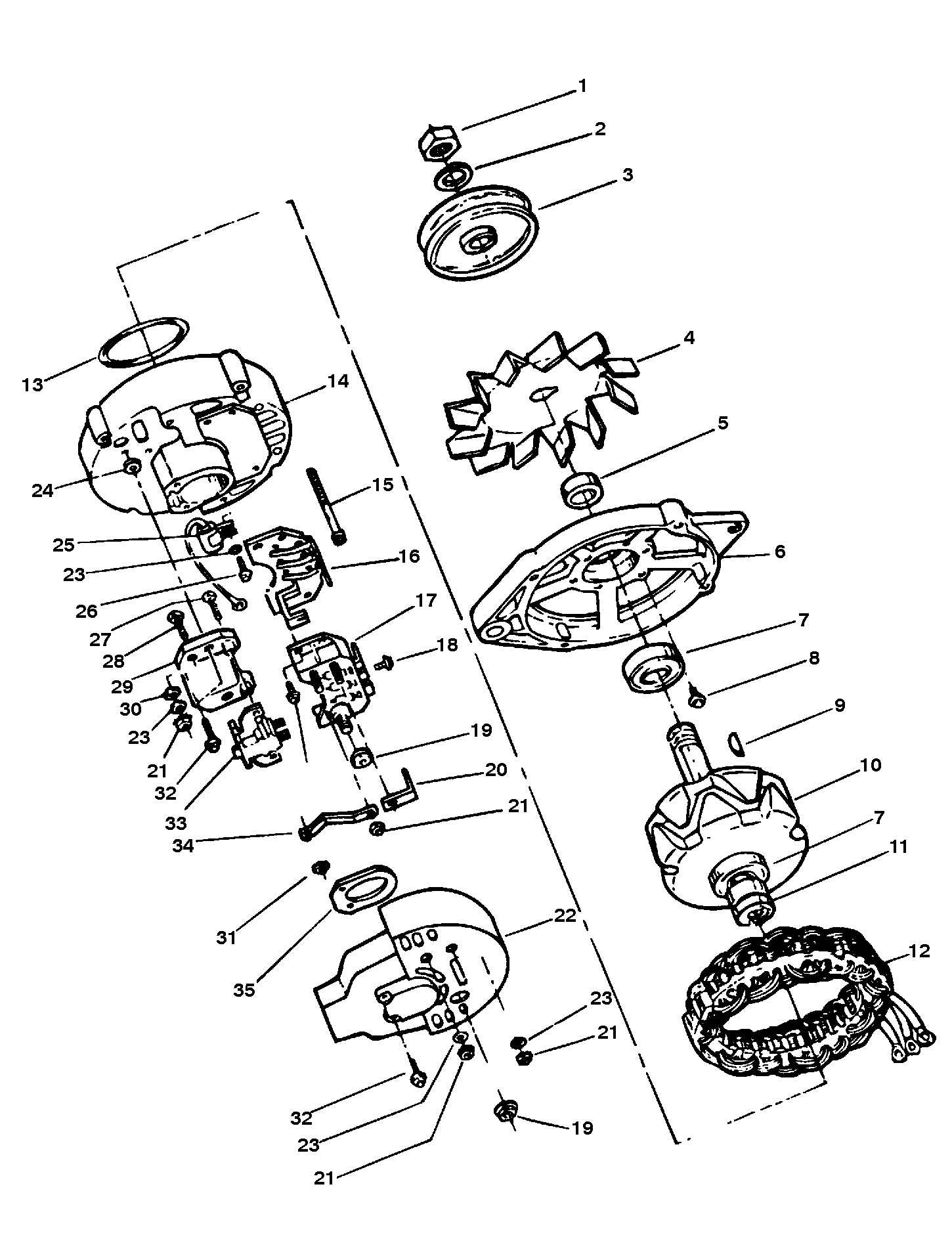

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando Ac-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 817119A4 | 620-3186M | 676-9-19101 | ALTERNATOR ASSEMBLY (55 AMP) | 1 | 92497A3 | 4 | ||
| 1 | 390-7027 | NUT | 1 | This Part is No Longer Available | |||||
| 2 | 390-7033 | WASHER | 1 | This Part is No Longer Available | |||||
| 3 | 390-8637 | PULLEY | 1 | This Part is No Longer Available | |||||
| 4 | 390-7004 | FAN | 1 | ||||||
| 5 | 813969 | SPACER | 1 | This Part is No Longer Available | |||||
| 6 | 813961 | HOUSING-Front | 1 | This Part is No Longer Available | |||||
| 7 | 390-7005 | BEARING-Ball | 2 | This Part is No Longer Available | |||||
| 8 | 10-813978A1 | SCREW KIT | 4 | This Part is No Longer Available | |||||
| 9 | 390-7034 | KEY | 1 | This Part is No Longer Available | |||||
| 10 | 813962 | ROTOR ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 11 | 390-7014 | RING-Slip | 1 | This Part is No Longer Available | |||||
| 12 | 813963 | STATOR ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 13 | 390-7007 | RETAINER | 1 | This Part is No Longer Available | |||||
| 14 | 813964 | HOUSING-Rear | 1 | This Part is No Longer Available | |||||
| 15 | 10-813975 | BOLT | 4 | This Part is No Longer Available | |||||
| 16 | 813966 | DIODE BRIDGE | 1 | This Part is No Longer Available | |||||
| 17 | 813965 | DIODE FIELD | 1 | This Part is No Longer Available | |||||
| 18 | 10-813981 | SCREW | 3 | This Part is No Longer Available | |||||
| 19 | 11-813976 | NUT | 2 | This Part is No Longer Available | |||||
| 20 | 813973 | STRAP | 1 | This Part is No Longer Available | |||||
| 21 | 390-7021 | NUT | 5 | This Part is No Longer Available | |||||
| 22 | 813971 | COVER ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 23 | 12-813984 | WASHER | 5 | This Part is No Longer Available | |||||
| 24 | 390-7022 | WASHER | 2 | This Part is No Longer Available | |||||
| 25 | 813972 | CAPACITOR | 1 | This Part is No Longer Available | |||||
| 26 | 10-813982 | SCREW | 1 | This Part is No Longer Available | |||||
| 27 | 10-813979 | SCREW | 2 | This Part is No Longer Available | |||||
| 28 | 10-813983 | SCREW | 2 | This Part is No Longer Available | |||||
| 29 | 813974 | REGULATOR-Voltage | 1 | This Part is No Longer Available | |||||
| 30 | 12-813985 | WASHER | 2 | This Part is No Longer Available | |||||
| 31 | 11-813977 | NUT | 2 | This Part is No Longer Available | |||||
| 32 | 10-813980 | SCREW | 8 | This Part is No Longer Available | |||||
| 33 | 813968 | BRUSH ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 34 | 813967 | STRAP (D+) | 1 | This Part is No Longer Available | |||||
| 35 | 27-813970 | GASKET-Felt | 1 | This Part is No Longer Available |
