525 SC GM 454 V-8 1991-1992 - Serial 0D456000 Thru 0F348963 - Fuel Pump and Fuel Filter

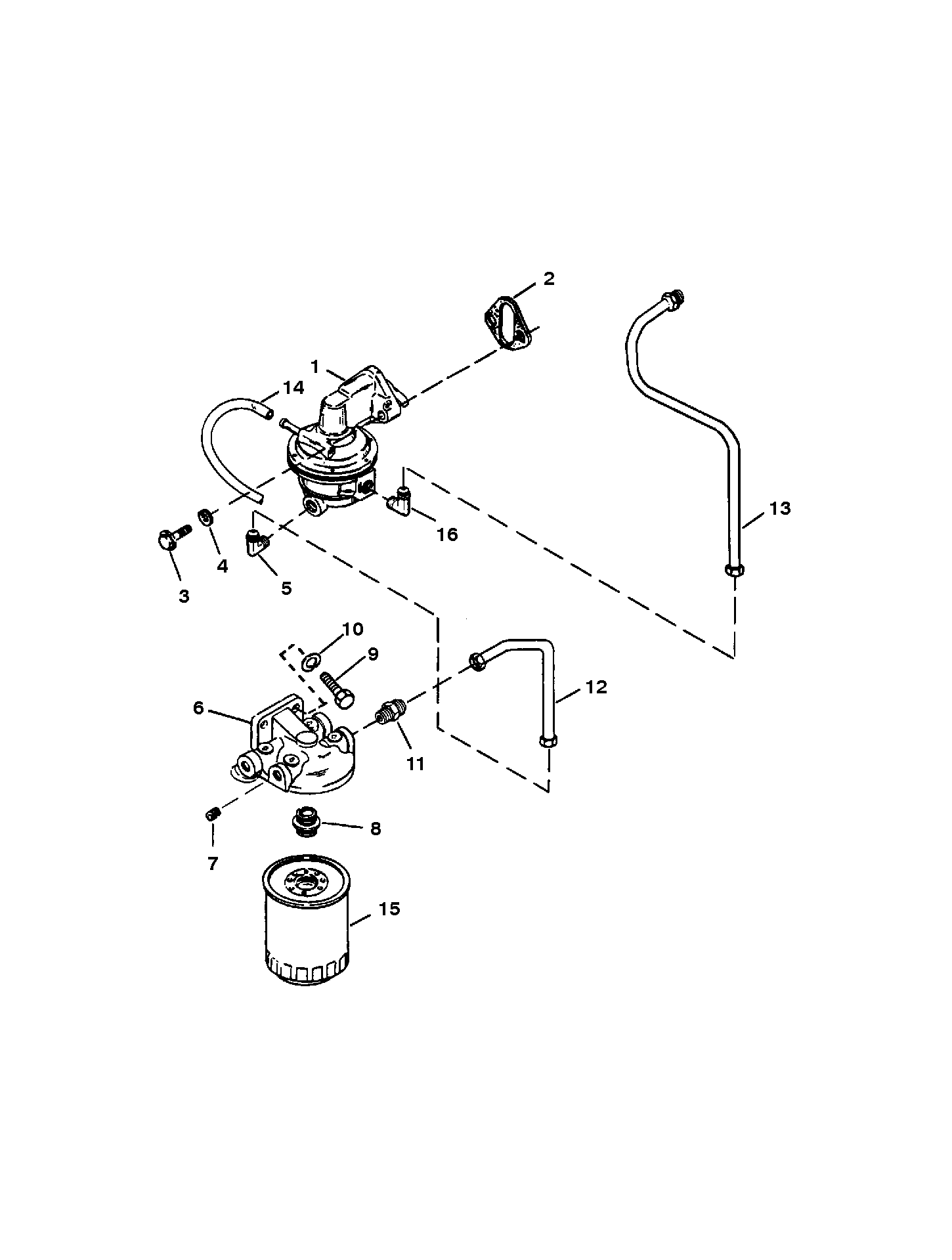

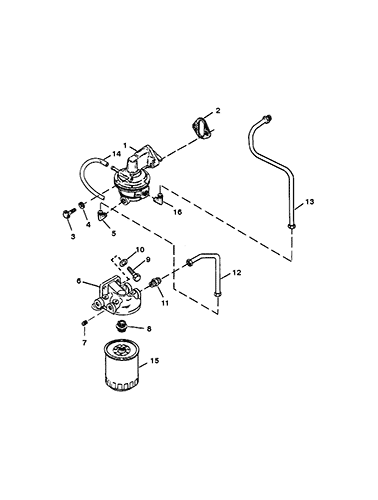

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando Ac-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 861677T | PUMP ASSEMBLY-Fuel | 1 | 818383T | |||||
| 2 | 27-34213 | GASKET-Fuel Pump | 1 | 14 | |||||
| 3 | 10-34354 | SCREW (.375-16 x 1.500) | 2 | ||||||
| 4 | 13-35048 | LOCKWASHER (.375) | 2 | ||||||
| 5 | 22-93385 | FITTING (90 deg.) | 1 | ||||||
| 6 | 89876A3 | BASE ASSEMBLY-Fuel Filter | 1 | ||||||
| 7 | 22-32561 | PLUG-Pipe | 3 | ||||||
| 8 | 22-816133 | FITTING | 1 | 22-8161331 | |||||
| 9 | 10-28782 | SCREW (.312-18 x .875) | 2 | ||||||
| 10 | 13-26993 | LOCKWASHER (.312 in.) | 1 | ||||||
| 11 | 22-33821 | CONNECTOR | 2 | ||||||
| 12 | 32-848602 | LINE-Fuel-Filter to Pump | 1 | 32-847598 | |||||
| 13 | 32-822105 | LINE-Fuel-Fuel Pump to Carburetor | 1 | This Part is No Longer Available | |||||
| 14 | 32-9337070 | TUBING (48.00 In. Bulk) (Cut 36.00 In.)-Fuel Pump to Carburetor | 1 | This Part is No Longer Available | |||||
| 15 | 35-802893Q01 | FILTER-Fuel | 1 | 35-8052691 | 4 | ||||
| 16 | 22-817395 | FITTING (45 Degrees) | 1 | ||||||
| - | 27-827014A98 | Gasket Set | - | 27-827014A92 |
