525 SC GM 454 V-8 1991-1992 - Serial 0D456000 Thru 0F348963 - Starter Assembly (50-17251A3)

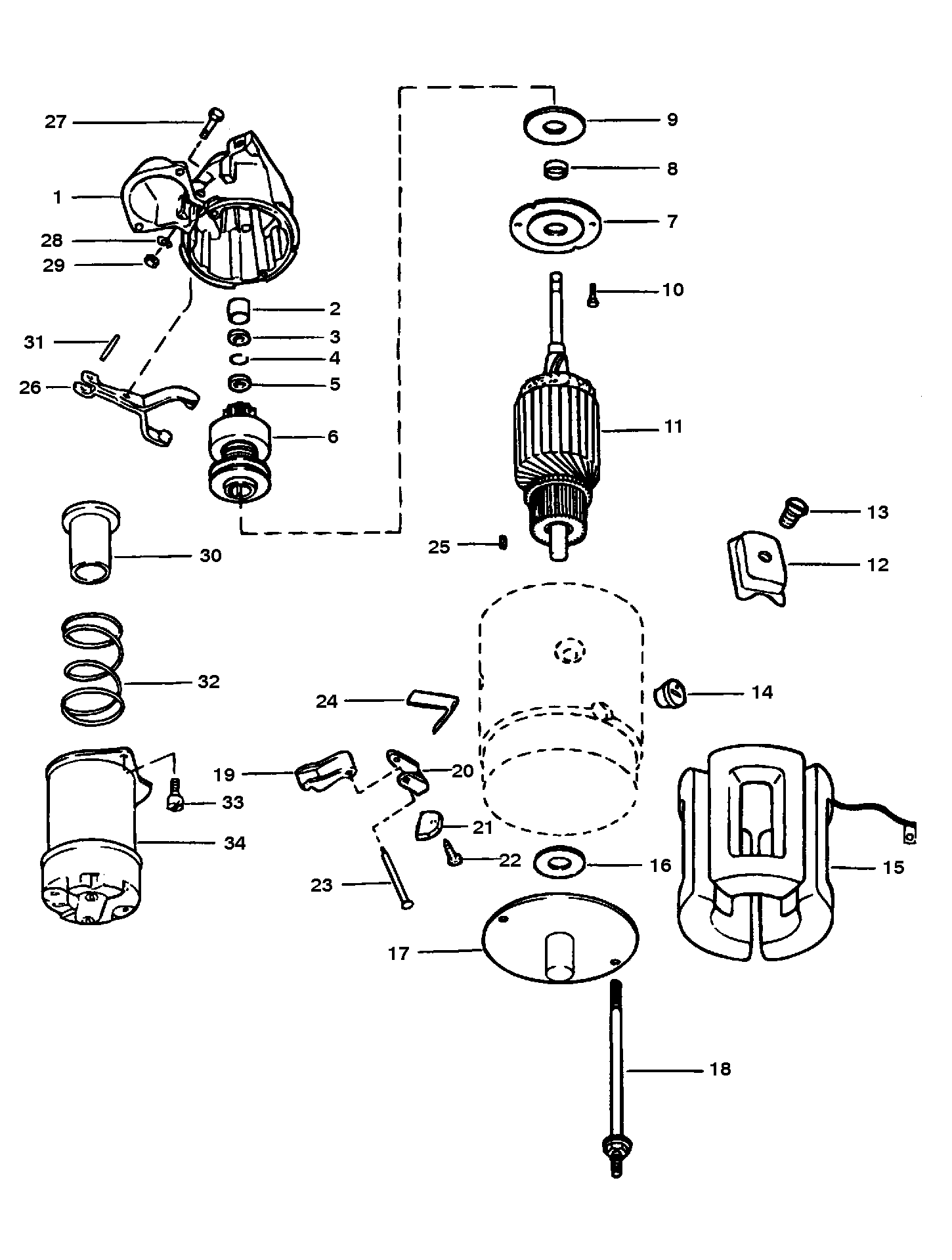

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando Ac-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Note: PARTS LISTED | NSS | (NOT SOLD SEPARATELY) SHOULD BE ORDERED FROM A LOCAL SUPPLIER USING THE APPROPRIATE MANUFACTURER'S PART NUMBER.|||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| - | 50-808011A05 | STARTER ASSEMBLY | 1 | 50-17251A3 | (TRANSMISSION & DRIVELINE MODELS) 4 | |||||
| 1 | 79206 | HOUSING ASSEMBLY | 1 | This Part is No Longer Available | ||||||
| 2 | 23-33369 | BUSHING-Drive End Housing | 1 | This Part is No Longer Available | ||||||
| 3 | 23-809457 | COLLAR-- st | 1 | 814474 | This Part is No Longer Available | |||||
| 4 | 53-33290 | RING-Retaining-Pinion Stop Collar | 1 | |||||||
| 5 | 33291 | COLLAR-Pinion Stop | 1 | |||||||
| 6 | 68608 | DRIVE ASSEMBLY-Clutch | 1 | This Part is No Longer Available | ||||||
| 7 | 79396 | PLATE-Bearing | 1 | This Part is No Longer Available | ||||||
| 8 | 23-71694 | BUSHING-Bearing Plate | 1 | This Part is No Longer Available | ||||||
| 9 | 12-68614 | WASHER-Bearing Plate | 1 | This Part is No Longer Available | ||||||
| 10 | 10-79209 | SCREW-Bearing | 2 | This Part is No Longer Available | ||||||
| 11 | 68606 | ARMATURE | 1 | This Part is No Longer Available | ||||||
| 12 | NSS | NOT SOLD SEPERATE, SHOE-Pole-Field Coil (Delco Remy #810601) | 4 | This Part is not sold separately 1 | ||||||
| 13 | NSS | NOT SOLD SEPERATE, SCREW (Delco Remy #1968396) | 4 | This Part is not sold separately 1 | ||||||
| 14 | NSS | NOT SOLD SEPERATE, GROMMET-Field Coil (Delco Remy #1846097) | 1 | This Part is not sold separately 1 | ||||||
| 15 | NSS | NOT SOLD SEPERATE, FIELD COIL ASSY (Delco Remy #1970467) | 1 | This Part is not sold separately 1 | ||||||
| 16 | NSS | NOT SOLD SEPERATE, WASHER-Leather (Delco Remy #1985617) | 1 | This Part is not sold separately 1 | ||||||
| 17 | 79211 | FRAME-Commutator End | 1 | This Part is No Longer Available | ||||||
| 18 | NSS | NOT SOLD SEPERATE, BOLT-- (Delco Remy #1939970) | 1 | This Part is not sold separately 1 | ||||||
| 19 | 33284 | HOLDER-Insulated-Field Frame Brush | 2 | This Part is No Longer Available | ||||||
| 20 | 33283 | HOLDER-Field Frame Brush Ground | 2 | This Part is No Longer Available | ||||||
| 21 | 33270 | BRUSH-Field Frame | 4 | |||||||
| 22 | NSS | NOT SOLD SEPERATE, SCREW-Brush Lead (Delco Remy #1967747) | 2 | This Part is not sold separately 1 | ||||||
| 22 | NSS | NOT SOLD SEPERATE, SCREW-Brush Lead (Delco Remy #443527) | 2 | This Part is not sold separately 1 | ||||||
| 23 | 33294 | SUPPORT | 2 | This Part is No Longer Available | ||||||
| 24 | 24-33285 | SPRING-Field Frame Brush | 4 | This Part is No Longer Available | ||||||
| 25 | NSS | NOT SOLD SEPERATE, PIN-Dowel (Delco Remy #1985696) | 1 | This Part is not sold separately 1 | ||||||
| 26 | 33297 | LEVER-Shift | 1 | This Part is No Longer Available | ||||||
| 27 | NSS | NOT SOLD SEPERATE, STUD-Shift Lever (Delco Remy #1814529) | 1 | This Part is not sold separately 1 | ||||||
| 28 | 12-68615 | WASHER-Shift Lever Stud | 1 | This Part is No Longer Available | ||||||
| 29 | 11-26484 | NUT (.312-18)-Shift Lever Stud | 1 | |||||||
| 30 | 33317 | PLUNGER | 1 | This Part is No Longer Available | ||||||
| 31 | 17-79207 | PIN-Plunger to Shift Lever | 1 | This Part is No Longer Available | ||||||
| 32 | 24-46889 | SPRING-Plunger Return | 1 | This Part is No Longer Available | ||||||
| 33 | NSS | NOT SOLD SEPERATE, SCREW-Solenoid (Delco Remy #132255) | 2 | This Part is not sold separately 1 | ||||||
| 34 | 89-18080 | 676-9-15102 | 700-72460 | SOLENOID | 1 | |||||
