525 SC GM 454 V-8 1991-1992 - Serial 0D456000 Thru 0F348963 - Oil Cooler (Transmission)

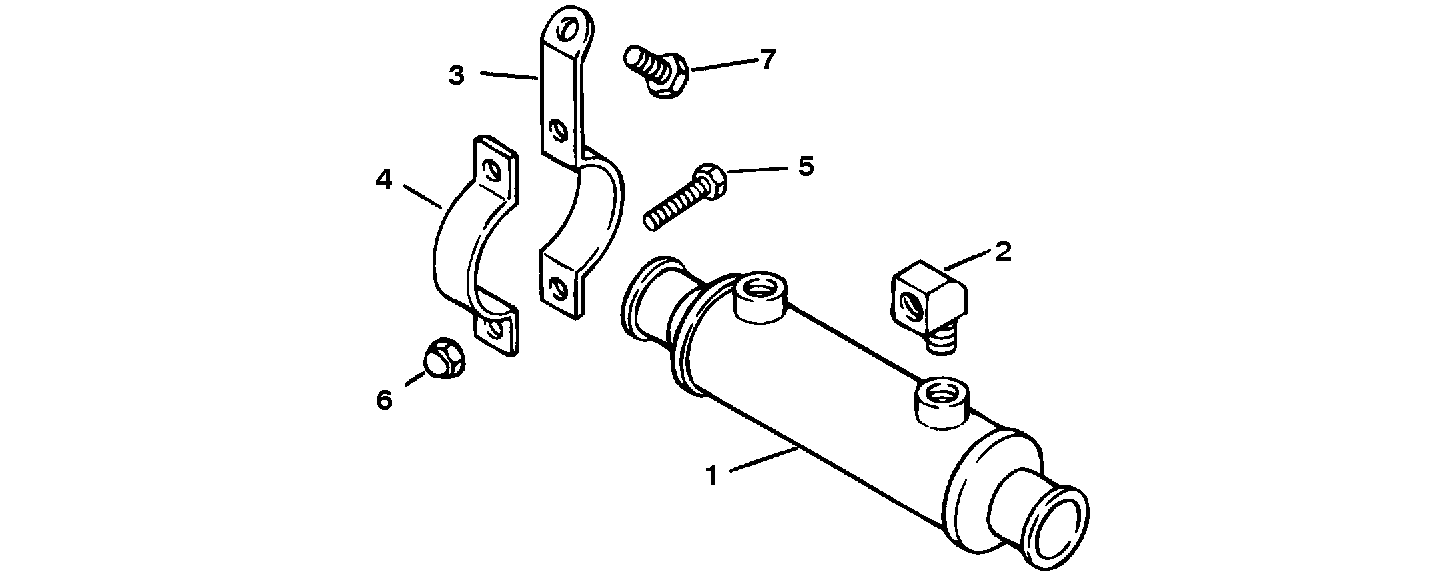

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando Ac-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 63832A1 | COOLER ASSEMBLY-Oil | 1 | ||||||
| 2 | 22-63835 | ELBOW (45 DEGREES) | 1 | ||||||
| 2 | 22-47629 | ELBOW (90 DEGREES) | 1 | ||||||
| 3 | 63820T | BRACKET (LONG) | 1 | ||||||
| 4 | 56328A1 | BRACKET (SHORT) | 1 | ||||||
| 5 | 10-60300 | SCREW (.250-28 x .750) | 2 | ||||||
| 6 | 11-30506 | NUT (.250-28) | 2 | ||||||
| 7 | 10-35765A1 | SCREW KIT (Screw & Washer) (.312-18 x .625) | 1 |
