525 SC GM 454 V-8 1991-1992 - Serial 0D456000 Thru 0F348963 - Starter and Alternator

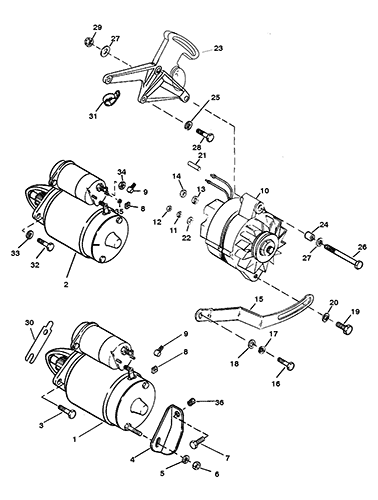

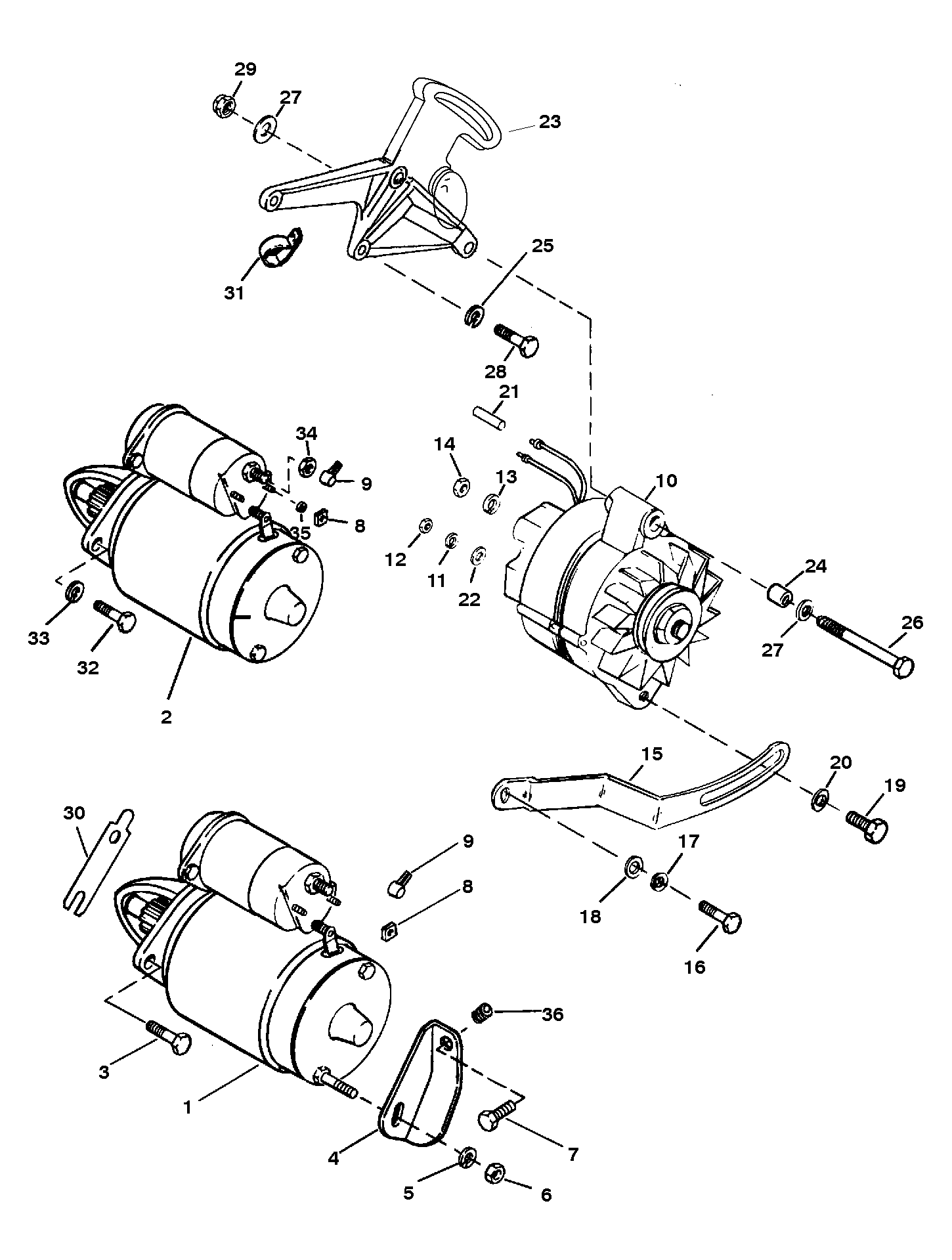

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando Ac-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-863007A1 | STARTER ASSEMBLY | 1 | 50-99418A2 | SEE STARTER ASSEMBLY (50-99418A2) NOT SOLD SEPARATE 4 | ||||
| 2 | 50-808011A05 | STARTER ASSY | 1 | 50-17251A3 | (TRANSMISSION & DRIVELINE MODELS) SEE STARTER ASSEMBLY (50-17251A3) OPTIONAL 4 | ||||
| 3 | 10-94435001 | SCREW (.375-16 x 4.656)-Starter Motor | 2 | 10-94435 | AS REQUIRED | ||||
| 4 | 89057 | BRACE-Starter Motor | 1 | This Part is No Longer Available SUPERSEDES TO ANOTHER PART NUMBER | |||||
| 5 | 13-26996 | LOCKWASHER (#10)-Starter Motor Stud | 1 | SERIAL NUMBER AND BELOW | |||||
| 6 | 11-15874 | NUT (10MM)-Battery Terminal | 1 | SERIAL NUMBER AND ABOVE | |||||
| 7 | 10-35765A1 | SCREW & WASHER (.312-18 x .625)-Brace to Engine | 1 | MISCELLANEOUS NOTES | |||||
| 8 | 11-400211 | NUT (5MM)-Starter Switch Terminal | 1 | COMPONENT OF FUEL PUMP DIAPHRAGM KIT | |||||
| 9 | 85-79695T | BOOT-Insulator-Starter Terminal | 1 | 85-79695 | |||||
| 10 | 817119A4 | 620-3186M | 676-9-19101 | ALTERNATOR ASSEMBLY (BLACK) | 1 | SEE ALTERNATOR ASSEMBLY (MANDO #AC-155603) COMPONENT OF CARB REPAIR KIT | |||
| 10 | 8171191 | ALTERNATOR ASSEMBLY (BLUE) | 1 | SEE ALTERNATOR ASSEMBLY (MANDO #AC-155603) COMPONENT OF CARB GASKET SET | |||||
| 11 | 13-26996 | LOCKWASHER (#10)-Alternator Terminal | 1 | COMPONENT OF G/H WATER PUMP REPAIR KIT | |||||
| 12 | 11-79989 | NUT (#10-24)-Alternator Terminal | 1 | COMPONENT OF G/H SEAL KIT | |||||
| 13 | 13-26992 | LOCKWASHER (.250)-Alternator Terminal | 1 | COMPONENT OF ENGINE GASKET SET [27-817118A90] AND [27-827014A92] | |||||
| 14 | 11-8267098 | NUT (.250-20)-Alternator Terminal | 1 | 11-56374 | COMPONENT OF POWERHEAD | ||||
| 15 | 85013T | BRACE-Alternator Adjusting | 1 | PART NUMBER IS NEW AND LISTED FOR THE FIRST TIME | |||||
| 16 | 10-47462 | SCREW (.437-14 x 1.250)-Alternator Brace | 1 | ||||||
| 17 | 13-32993 | LOCKWASHER (.437)-Alternator Brace Screw | 1 | ||||||
| 18 | 12-31263 | WASHER-Alternator Brace Screw | 1 | ||||||
| 19 | 10-29198 | SCREW & LOCKWASHER (.312-18 x .875)-Alt Brace | 1 | ||||||
| 20 | 12-26168 | WASHER-Alternator Brace Screw | 1 | ||||||
| 21 | 5790811 | SLEEVE-Alternator Lead | 1 | ||||||
| 22 | 12-96457 | WASHER-Alternator Terminal | 1 | ||||||
| 23 | 848146T | BRACKET-Alternator Mount (.437 Holes) | 1 | 848146 | |||||
| 23 | 815251T1 | BRACKET Kit-Alternator Mount (.375 Holes) | 1 | 815251A1 | This Part is No Longer Available | ||||
| 24 | 23-33186 | BUSHING-Alternator Bracket Screw | 1 | ||||||
| 25 | 13-35048 | LOCKWASHER (.375)-Alternator Bracket Screw | 3 | ||||||
| 25 | 13-32993 | LOCKWASHER (.437)-Alternator Bracket Screw | 3 | ||||||
| 26 | 10-48308 | SCREW (.375-24 x 3.750)-Alternator | 1 | ||||||
| 27 | 12-20553 | WASHER-Alternator Bracket Screw | 3 | ||||||
| 28 | 10-37612 | SCREW (.375-16 x 1.250)-Alternator Bracket | 1 | ||||||
| 28 | 10-34353 | SCREW (.375-16 x 1.00)-Alternator Bracket | 2 | ||||||
| 28 | 10-47462 | SCREW (.437-14 x 1.250)-Alternator Bracket | 1 | ||||||
| 28 | 10-47461 | SCREW (.437-14 x 1.00)-Alternator Bracket | 2 | ||||||
| 29 | 11-23161 | NUT (.375-24)-Alternator Bracket Screw | 1 | ||||||
| 30 | 15-817272 | SHIM | AR | 3 | |||||
| 31 | 54-848130 | CLIP-Hose-Circulating Pump | 1 | No longer made, limited availability | |||||
| 32 | 10-47461 | SCREW (.437-14 x 1.00) | 2 | ||||||
| 33 | 13-32993 | LOCKWASHER (.437) | 2 | ||||||
| 34 | 11-4013610 | NUT (M10) | 1 | 11-400266 | |||||
| 35 | 13-26996 | LOCKWASHER (#10) | 1 | ||||||
| 36 | 22-325611 | PLUG (Special)-Mounting Bolt to Block | 1 |
