525 SC GM 454 V-8 1991-1992 - Serial 0D456000 Thru 0F348963 - Power Steering Components

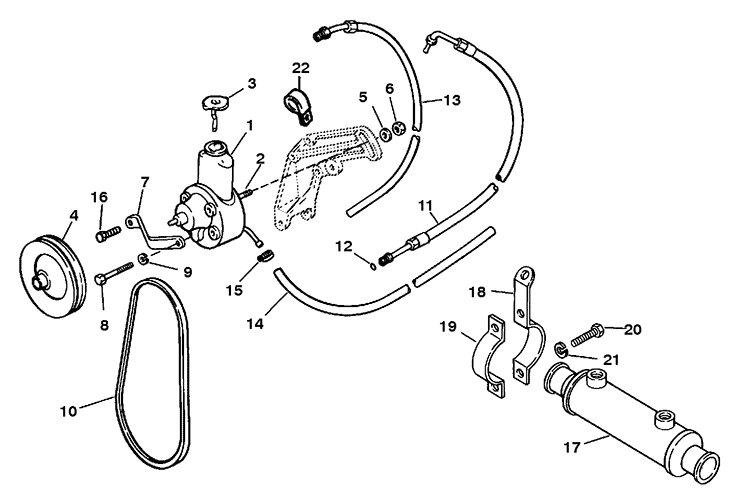

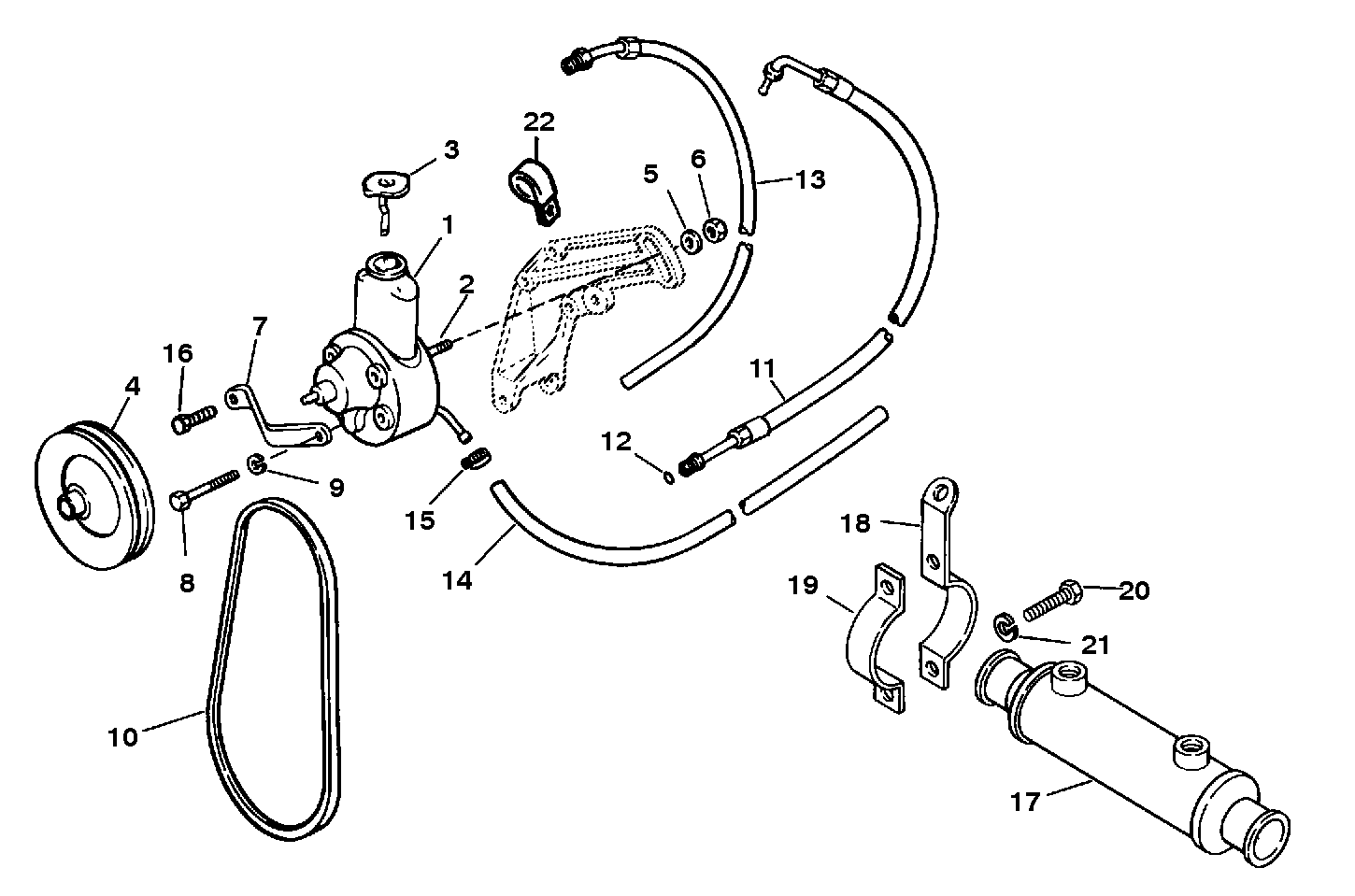

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 16792A39         PUMP ASSEMBLY-Power Steering (BLACK) 1 16792A1 Pump DOES NOT come with pulley
1 16792A25         PUMP ASSEMBLY-Power Steering (BLUE) 1

2 16-41877         STUD 1

3 36-95805         CAP 1

4 73873A1         PULLEY (BLACK) 1

4 738733         PULLEY (BLUE) 1   This Part is No Longer Available
5 12-34567         WASHER (BRACE SLOT) 3

6 11-90517         NUT 2

7 98813F1         BRACE-Pump Mounting 1 98813A1 (S/N: 0D456000 - 0D763745) 5
7 847765         BRACE-Pump Mounting 1
(S/N: 0D763746 - 0F348963) 6
8 10-40001188         SCREW (M10 x 20) 1

9 13-400248         LOCKWASHER 1

10 57-96834Q         V BELT (50.00 In.) 1 57-96834T
11 32-98494         HOSE (FITTINGS ON BOTH ENDS) 1

12 25-89879         O RING 1

13 32-9884339         HOSE (FITTINGS ON ONE END) 1

14 32-8M0062341         HOSE (53.00 In. Bulk) (Cut as Req'd) 1 32-5251914
15 54-180761         CLAMP 3

16 10-37612         SCREW (.375-16 x 1.250) 1
(S/N: 0D456000 - 0D763745) 5
16 10-47462         SCREW (.437-14 x 1.250) 1
(S/N: 0D763746 - 0F348963) 6
17 99356A2         COOLER ASSEMBLY-Oil-Power Steering 1

18 63820F3         BRACKET (LONG) 1 638203
19 563281         BRACKET (SHORT) 1

20 10-49668         SCREW (.250-20 x .750) 2

21 13-26992         LOCKWASHER (.250) 2

22 54-848183         J CLIP-Power Steering Hose 1
