525 SC GM 454 V-8 1991-1992 - Serial 0D456000 Thru 0F348963 - Wiring and Electrical Components (0D763871 - 0F348963)

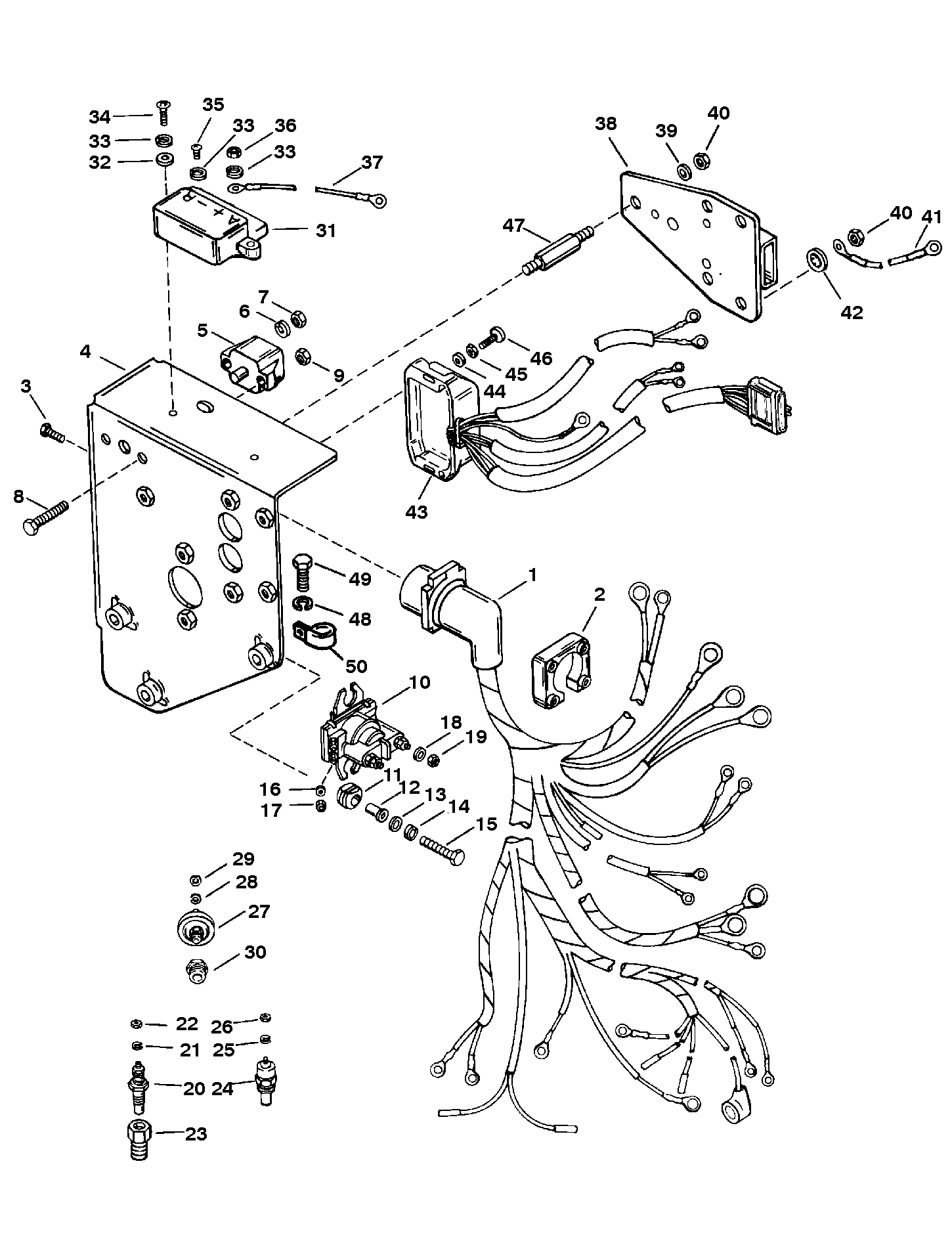

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando Ac-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 84-847722A2 | HARNESS ASSEMBLY-Wiring | 1 | 84-847722A1 | 4 | ||||
| 2 | 26079A2 | PLATE KIT | 1 | ||||||
| 3 | 10-15001 | SCREW (#8-16 x .875) | 4 | ||||||
| 4 | 8476761 | BRACKET- Mount (.375 Holes) | 1 | (S/N: 0D763891 - 0F213142) 5 | |||||
| 4 | 8481311 | BRACKET- Mount (.437 Holes) | 1 | This Part is No Longer Available (S/N: 0F213143 - 0F348963) 6 | |||||
| 5 | 88-11178A01 | BREAKER-Circuit (50 AMP) | 1 | 88-11178 | This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. | ||||
| 6 | 13-26996 | LOCKWASHER (#10) | 2 | ||||||
| 7 | 11-68219 | NUT (#10-32) | 2 | ||||||
| 8 | 10-45862 | SCREW (#10-32 x .875) | 2 | ||||||
| 9 | 11-61356 | NUT (#10-32) | 2 | ||||||
| 10 | 89-818999A2 | SOLENOID ASSEMBLY-Starter | 1 | ||||||
| 11 | 25-818967 | GROMMET | 2 | ||||||
| 12 | 23-818968 | BUSHING | 2 | ||||||
| 13 | 12-29245 | WASHER | 2 | ||||||
| 14 | 13-26992 | LOCKWASHER (.250) | 2 | ||||||
| 15 | 10-76630 | SCREW (.250-20 x 1.00) | 2 | ||||||
| 16 | 13-26995 | LOCKWASHER (#8) | 2 | ||||||
| 17 | 11-26419 | NUT (#8-32) | 2 | ||||||
| 18 | 13-26992 | LOCKWASHER (.250) | 2 | ||||||
| 19 | 11-94330 | NUT (.250-20) | 2 | ||||||
| 20 | 13611 | SENDER UNIT-Oil Temperature | 1 | ||||||
| 21 | 13-26996 | LOCKWASHER (#10) | 1 | ||||||
| 22 | 11-45076 | NUT (#10-32) | 1 | ||||||
| 23 | 22-36492 | REDUCER | 1 | ||||||
| 24 | 806490T | SENDER ASSEMBLY-Water Temperature | 1 | 97257A1 | |||||
| 24 | 49734 | SENDER ASSEMBLY-Water Temperature (Dual) | OPT | 49734A1 | 2 | ||||
| 25 | 13-26996 | LOCKWASHER (#10) | 1 | ||||||
| 26 | 11-45076 | NUT (#10-32) | 1 | ||||||
| 27 | 8M0068784 | SENDER ASSEMBLY-Oil Pressure | 1 | 815425 | |||||
| 27 | 37293T | SENDER ASSEMBLY-Oil Pressure (Dual) | OPT | 37293 | 2 | ||||
| 28 | 13-26996 | LOCKWASHER (#10) | 1 | ||||||
| 29 | 11-45076 | NUT (#10-32) | 1 | ||||||
| 30 | 22-64013 | REDUCER | 1 | ||||||
| 31 | 42600A09 | CONTROLLER ASSEMBLY | 1 | 42600A3 | |||||
| 32 | 12-30164 | WASHER | 2 | ||||||
| 33 | 13-26996 | LOCKWASHER (#10) | 7 | ||||||
| 34 | 10-41771 | SCREW (#10-24 x .875) | 2 | ||||||
| 35 | 10-62568 | SCREW (#10-16 x .375) | 1 | ||||||
| 36 | 11-68219 | NUT (#10-32) | 4 | ||||||
| 37 | 84-86322A17 | CABLE ASSEMBLY (Black) | 1 | This Part is No Longer Available | |||||
| 38 | 15899A1 | IGNITION MODULE ASSEMBLY | 1 | 814295A1 | This Part is No Longer Available order 15899T01 | ||||
| 39 | 12-29245 | WASHER | 2 | ||||||
| 40 | 11-8267098 | NUT (.250-20) | 3 | 11-56374 | |||||
| 41 | 84-62826A6 | CABLE ASSEMBLY (Black) | 1 | ||||||
| 42 | 13-21272 | LOCKWASHER (.250 Internal) | 1 | ||||||
| 43 | 823755T1 | OVERSPEED ASSEMBLY | 1 | 823755A1 | |||||
| 44 | 12-30164 | WASHER | 2 | ||||||
| 45 | 13-26996 | LOCKWASHER (#10) | 2 | ||||||
| 46 | 10-41069 | SCREW (#10-24 x .750) | 2 | ||||||
| 47 | 16-847738 | STUD-Electrical Bracket Mount | 3 | ||||||
| 48 | 13-35048 | LOCKWASHER (.375) | 3 | ||||||
| 48 | 13-32993 | LOCKWASHER (.437) | 3 | ||||||
| 49 | 10-37612 | SCREW (.375-16 x 1.250)-Bracket Mount | 3 | ||||||
| 49 | 10-47462 | SCREW (.437-14 x 1.250)-Bracket Mount | 3 | ||||||
| 50 | 54-848183 | J CLIP-Electrical Harness | 1 |
