525 SC GM 454 V-8 1991-1992 - Serial 0D456000 Thru 0F348963 - Transmission (Plug-In)

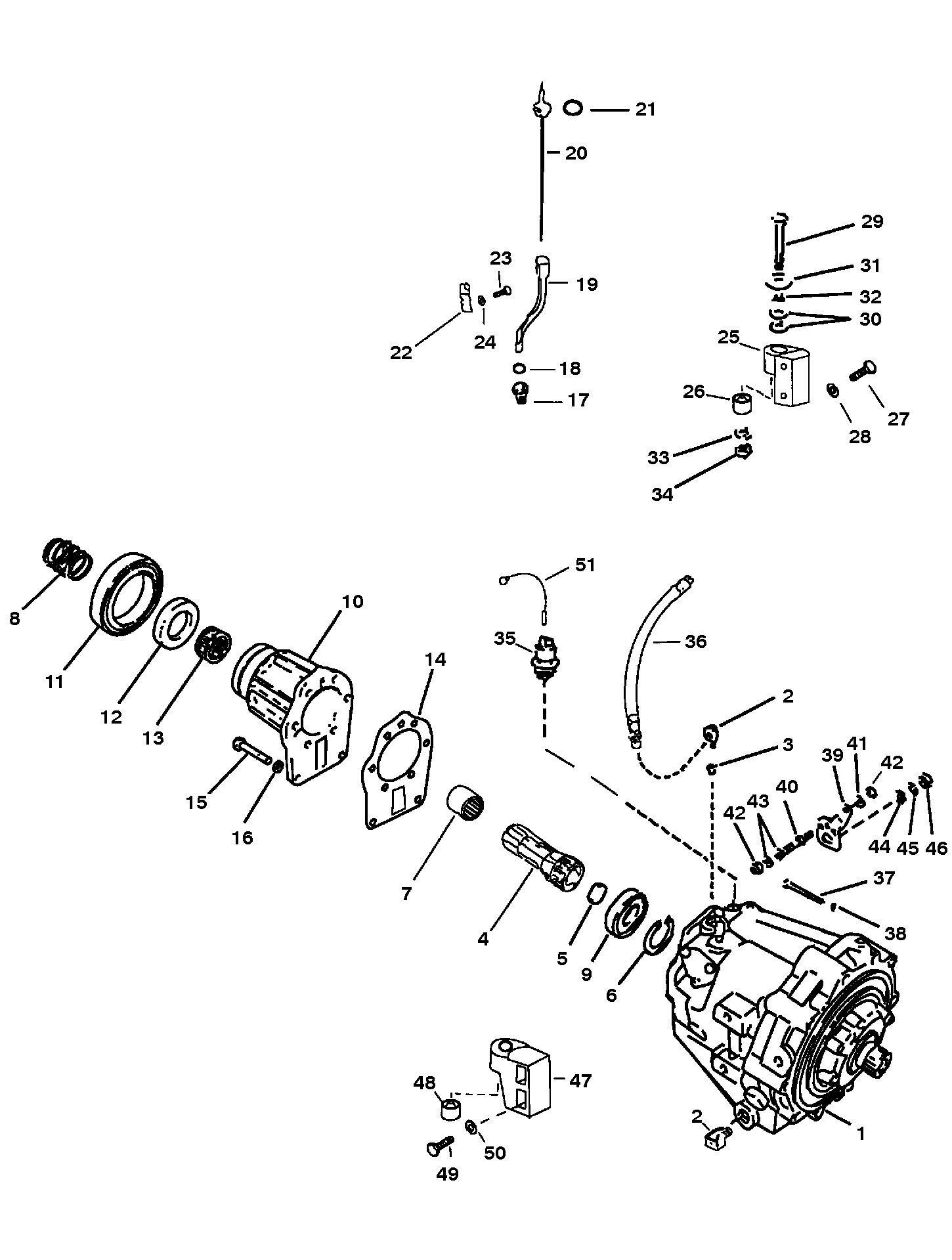

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando Ac-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 14746A1 | TRANSMISSION ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 2 | 22-47629 | ELBOW-Transmission to Oil Hose | 2 | ||||||
| 3 | 22-88517 | ADAPTOR-Reducing-Transmission Elbow | 1 | ||||||
| 4 | 47339A4 | COUPLING ASSEMBLY-Engine | 1 | No longer made, limited availability | |||||
| 5 | 19-47463 | PLUG-Expansion-Engine Coupling | 1 | ||||||
| 6 | 53-47469 | RING-Snap-Ball Bearing to Engine Coupling | 1 | ||||||
| 7 | 23-47471T | BEARING-Engine Coupling | 1 | 23-47471 | |||||
| 8 | 24-47755 | SPRING-Guide-Engine Coupling | 1 | ||||||
| 9 | 30-47470 | BEARING-Ball | 1 | ||||||
| 10 | 47333A1 | HOUSING ASSEMBLY-Bearing Support | 1 | This Part is No Longer Available | |||||
| 11 | 25-47756 | O RING-Bearing Support Housing | 1 | ||||||
| 12 | 26-47465 | SEAL-Oil-Bearing Support Housing | 1 | ||||||
| 13 | 31-47468T | BEARING-Needle-Bearing Support Housing | 1 | 31-47468 | This Part is No Longer Available | ||||
| 14 | 27-47903 | GASKET-Bearing Support Housing | 1 | 14 | |||||
| 15 | 10-47462 | SCREW (.437-14 x 1.250) | 8 | ||||||
| 16 | 13-32993 | LOCKWASHER (.437)-Support Housing Screw | 8 | ||||||
| 17 | 48461 | ADAPTOR-Oil Level Gauge-Tube to Transmission | 1 | This Part is No Longer Available | |||||
| 18 | 25-48462 | O RING-Oil Level Tube Adaptor | 1 | ||||||
| 19 | 48463 | TUBE-Oil Level Gauge | 1 | This Part is No Longer Available | |||||
| 20 | 48464 | DIPSTICK-Oil Level | 1 | This Part is No Longer Available | |||||
| 21 | 25-35276 | O RING-Oil Level Gauge | 1 | ||||||
| 22 | 48466 | BRACKET-Mounting-Oil Level Gauge Tube | 1 | This Part is No Longer Available | |||||
| 23 | 10-32417 | SCREW (.250-28 x .625) | 2 | ||||||
| 24 | 13-26992 | LOCKWASHER (.250)-Mounting Bracket Screw | 2 | ||||||
| 25 | 47340A1 | BRACKET ASSEMBLY-Transmission Mount (PORT) | 1 | ||||||
| 26 | 35852 | MOUNT-Transmission Mount Bracket | 1 | ||||||
| 27 | 10-47462 | SCREW (.437-14 x 1.250)-Bracket to Transmission | 2 | ||||||
| 28 | 13-32993 | LOCKWASHER (.437)-Mount Bracket Screw | 2 | ||||||
| 29 | 10-47467 | SCREW (.625-18 x 5.500)-Tailstock to Transom Plate | 2 | ||||||
| 30 | 12-47466 | WASHER-Tailstock Screws (NEOPRENE) | 4 | ||||||
| 31 | 12-47475 | WASHER-Tailstock Screws | 2 | ||||||
| 32 | 13-34846 | LOCKWASHER-Tailstock Screws | 2 | ||||||
| 33 | 12-33171 | WASHER-Tailstock Screws | 2 | ||||||
| 34 | 11-22339 | NUT (.625-18)-Tailstock Screws | 2 | ||||||
| 35 | 87-88031 | SWITCH-Temperature | 1 | ||||||
| 36 | 32-475166 | HOSE ASSEMBLY (30.00 In.)-Transmission to Oil Cooler | 2 | ||||||
| 37 | 10-60179 | SCREW (.437-14 x 3.500)-Transmission to Engine | 6 | ||||||
| 38 | 13-32993 | LOCKWASHER (.437)-Transmission Screw | 6 | ||||||
| 39 | 12128 | LEVER-Shift-Transmission | 1 | ||||||
| 40 | 16-63335 | STUD-Shift Lever | 1 | This Part is No Longer Available | |||||
| 41 | 12-39143 | WASHER-Shift Lever Stud | 1 | ||||||
| 42 | 11-8267089 | NUT (.250-28)-Shift Lever Stud | 2 | 11-20361 | |||||
| 43 | 12-29245 | WASHER-Shift Lever Stud | 2 | ||||||
| 44 | 12-20722 | WASHER-Transmission Lever Stud | 1 | This Part is No Longer Available | |||||
| 45 | 13-26993 | LOCKWASHER (.312)-Transmission Lever Stud | 1 | ||||||
| 46 | 11-22053 | NUT (.312-24)-Transmission Lever Stud | 1 | ||||||
| 47 | 47334A2 | BRACKET ASSEMBLY-Mount (STARBOARD) | 1 | This Part is No Longer Available | |||||
| 48 | 35852 | MOUNT-Transmission Mount Bracket | 1 | ||||||
| 49 | 10-47462 | SCREW (.437-14 x 1.250)-Bracket to Transmission | 2 | ||||||
| 50 | 13-32993 | LOCKWASHER (.437)-Mount Bracket Screw | 2 | ||||||
| 51 | 84-88032A5 | CABLE ASSEMBLY (TAN/BLUE) | 1 | ||||||
| 51 | 84-86322A22 | CABLE ASSEMBLY (BLACK) | 1 | This Part is No Longer Available | |||||
| - | 27-817118A90 | Gasket Set | - | This Part is No Longer Available | |||||
| - | 27-827014A98 | Gasket Set | - | 27-827014A92 |
