525 SC GM 454 V-8 1991-1992 - Serial 0D456000 Thru 0F348963 - Drivehshaft and Tailstock (Driveline)

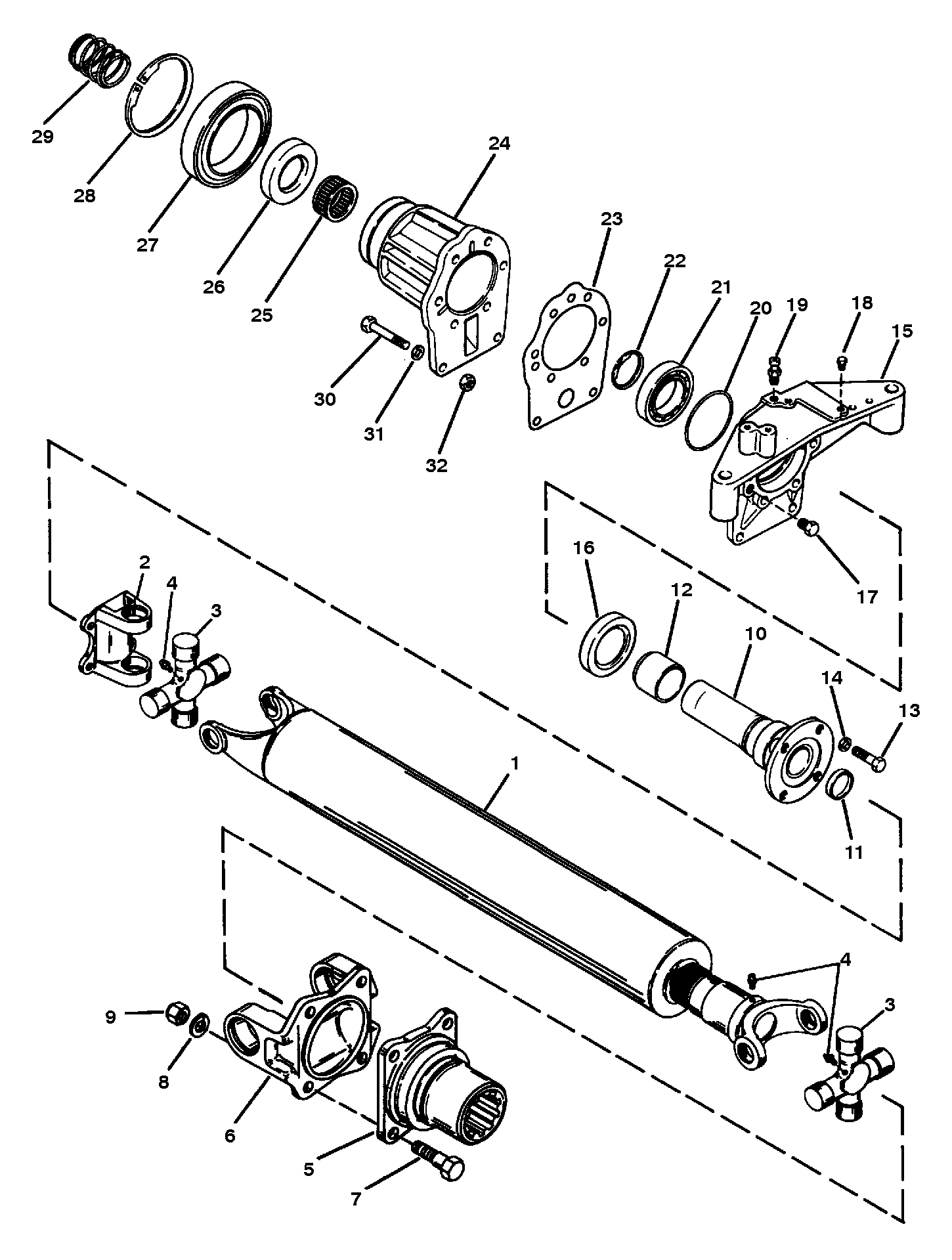

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando Ac-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 45-86978A3 | DRIVESHAFT ASSEMBLY (37.00 In.) | 1 | 45-86978A1 | |||||
| 1 | 45-53967A1 | DRIVESHAFT ASSEMBLY (43.00 In.) | 1 | This Part is No Longer Available | |||||
| 2 | 61218 | FLANGE-Driveshaft | 1 | ||||||
| 3 | 61221T | UNIVERSAL JOINT | 2 | 61221 | |||||
| 4 | 22-74036 | FITTING-Grease | 2 | ||||||
| 5 | 96276T4 | YOKE ASSEMBLY | 1 | 96276A2 | |||||
| 6 | 61218 | FLANGE-Yoke | 1 | ||||||
| 7 | 10-68743 | SCREW (.437-20 x 1.250) | 4 | This Part is No Longer Available | |||||
| 8 | 13-47659 | LOCKWASHER (.437) | 4 | ||||||
| 9 | 11-34933 | 676-9-72004 | NUT (.437-20) | 4 | |||||
| 10 | 52505A1 | SHAFT ASSEMBLY-Drive Extension | 1 | This Part is No Longer Available | |||||
| 11 | 19-47463 | PLUG | 1 | ||||||
| 12 | 23-47471T | BEARING | 1 | 23-47471 | |||||
| 13 | 10-60106 | SCREW (.437-20 x 1.250) | 4 | This Part is No Longer Available | |||||
| 14 | 12-45176 | WASHER | 4 | ||||||
| 15 | 55434A2 | HOUSING ASSEMBLY-Driveshaft Extension | 1 | This Part is No Longer Available | |||||
| 16 | 26-52499 | SEAL-Oil | 1 | ||||||
| 17 | 22-36382 | 700-21887 | PLUG-Pipe (.250) | 1 | |||||
| 18 | 22-328022 | PLUG-Pipe (.125) | 1 | 22-32802 | 4 | ||||
| 19 | 22-47902 | FITTING | 1 | ||||||
| 20 | 15-49264A1 | SHIM SET | 1 | This Part is No Longer Available | |||||
| 21 | 30-47470 | BEARING-Ball | 1 | ||||||
| 22 | 53-52502 | RING-Snap | 1 | ||||||
| 23 | 27-52501 | GASKET-Bearing Support Housing | 1 | ||||||
| 24 | 52506A1 | HOUSING ASSEMBLY-Bearing Support | 1 | This Part is No Longer Available | |||||
| 25 | 31-47468T | BEARING-Needle | 1 | 31-47468 | This Part is No Longer Available | ||||
| 26 | 26-47465 | SEAL-Oil | 1 | ||||||
| 27 | 53-52507 | RING-Support | 1 | This Part is No Longer Available | |||||
| 28 | 53-52503 | RING-Snap | 1 | This Part is No Longer Available | |||||
| 29 | 24-47755 | SPRING | 1 | ||||||
| 30 | 10-32695 | SCREW (.437-20 x 2.250) | 4 | ||||||
| 30 | 10-56393 | SCREW (.437-20 x 1.750) | 2 | ||||||
| 30 | 10-32515 | SCREW (.437-20 x 2.500) | 2 | ||||||
| 31 | 12-22248 | WASHER | 8 | ||||||
| 32 | 11-35053 | NUT (.437-20) | 8 |
