525 SC GM 454 V-8 1991-1992 - Serial 0D456000 Thru 0F348963 - Flywheel Housing (Bravo Driveshaft Models)

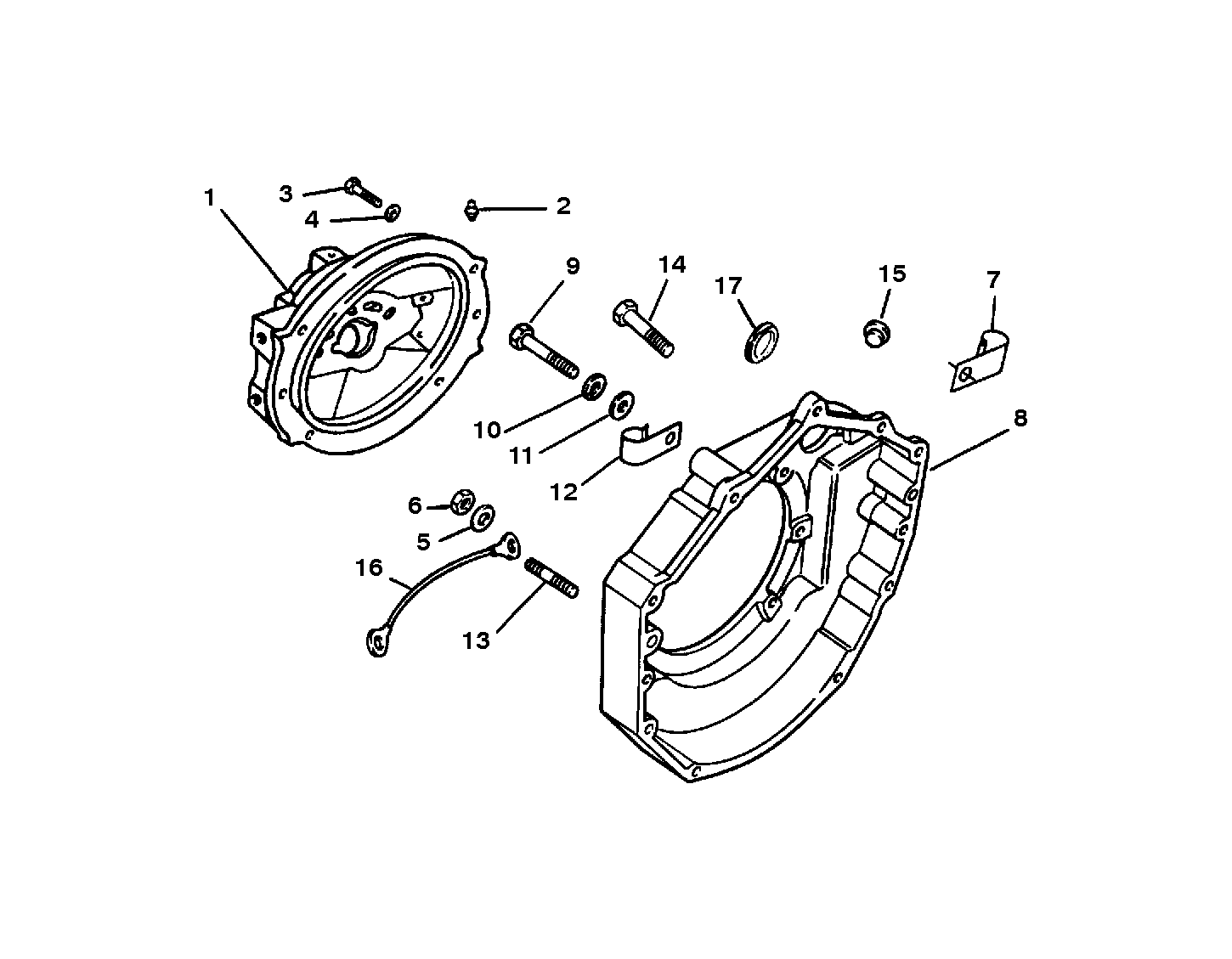

Section Drawing: (Hover or click to view larger)
