525 SC GM 454 V-8 1991-1992 - Serial 0D456000 Thru 0F348963 - Sea Water Pump Assembly (0D456000 - 0D763745)

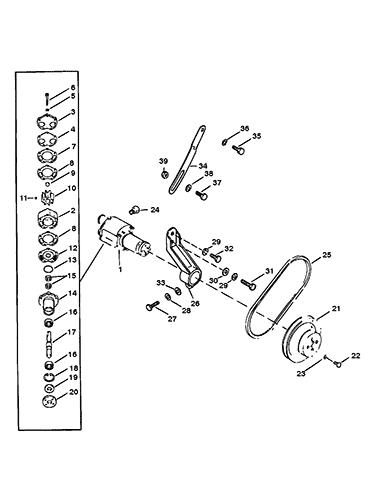

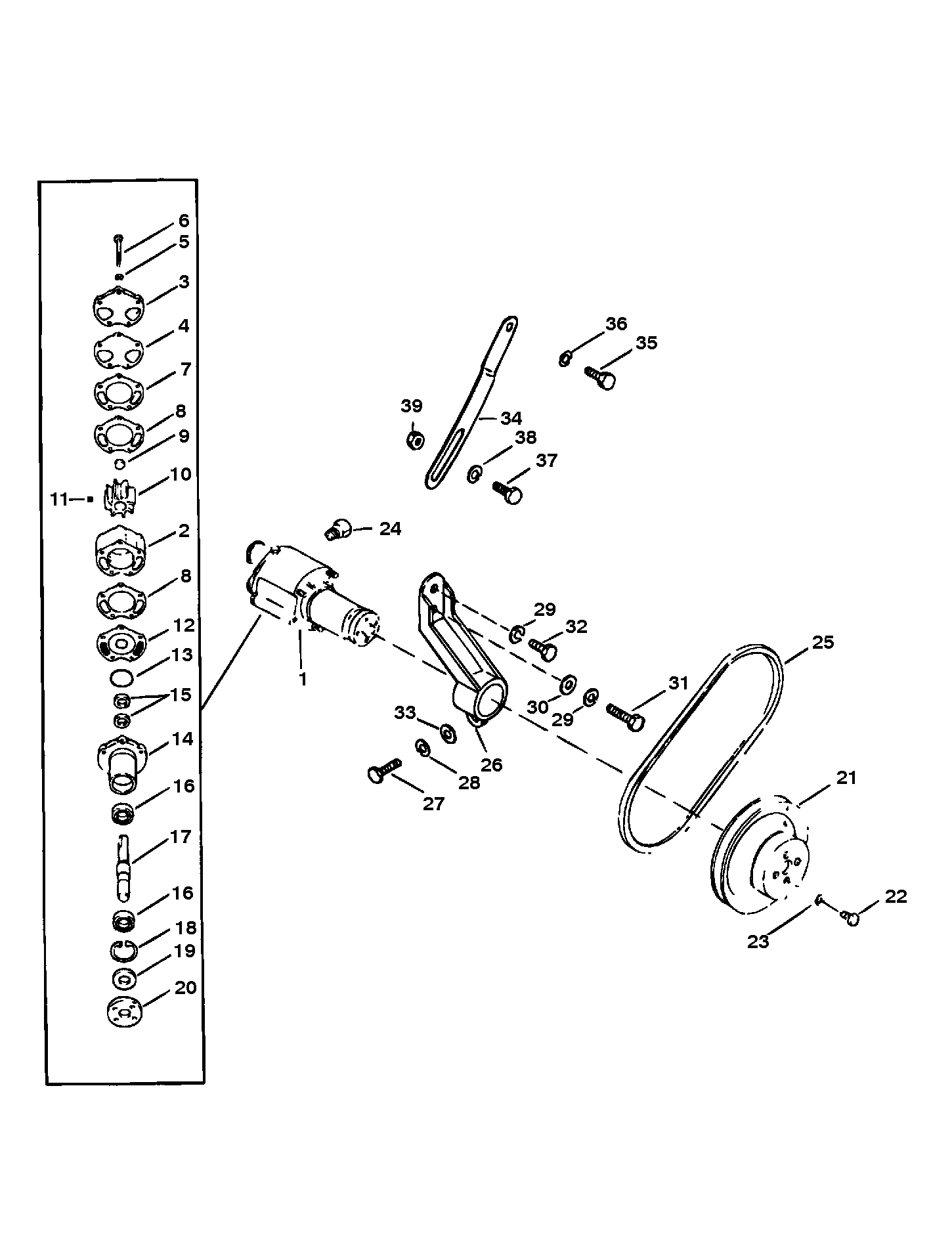

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando Ac-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 46-72774A32 | PUMP ASSEMBLY-Water | 1 | ||||||
| 2 | 46-72774A40 | BODY ASSEMBLY-Water Pump | 1 | This Part is No Longer Available | |||||
| 3 | 87631A4 | COVER ASSEMBLY-Water Pump | 1 | ||||||
| 4 | 27-8052151 | GASKET-Cover to Outer Wear Plate | 1 | ||||||
| 5 | 12-20084 | WASHER-Cover Screw | 5 | ||||||
| 6 | 10-73275 | SCREW (.312-18 x 2.875) | 5 | ||||||
| 7 | 94916 | WEAR PLATE-Outer | 1 | ||||||
| 8 | 27-94914 | GASKET-Body to Wear Plate | 2 | ||||||
| 9 | 19-59504 | PLUG-Impeller | 1 | ||||||
| 10 | 47-59362T1 | 625-4011 | 676-9-45375 | 700-89740 | IMPELLER (USE WITHOUT KEY) | 1 | 47-593621 | ||
| 11 | 8M0032837 | KEY-Impeller Drive (Use where Applicable) | 1 | 28-56662 | |||||
| 12 | 94576 | WEAR PLATE-Inner | 1 | ||||||
| 13 | 25-94288 | QUAD RING-Pump Housing | 1 | ||||||
| 14 | 46-94913A1 | HOUSING ASSEMBLY-Water Pump | 1 | ||||||
| 15 | 26-90562 | 676-9-76107 | 700-85080 | SEAL-Oil-Water Pump Shaft | 2 | ||||
| 16 | 30-72961 | BEARING-Ball-Water Pump Shaft | 2 | ||||||
| 17 | 59501A1 | SHAFT-Water Pump | 1 | ||||||
| 18 | 53-23720 | RING-Snap-Ball Bearing Retaining | 1 | ||||||
| 19 | 26-72785 | SEAL-Oil-Water Pump Shaft | 1 | ||||||
| 20 | 47530 | HUB-Water Pump Pulley | 1 | ||||||
| 21 | 73798A1 | PULLEY-Water Pump | 1 | No longer made, limited availability | |||||
| 22 | 10-47277 | SCREW (.312-24 x .750)-Pulley | 4 | ||||||
| 23 | 13-39107 | 700-21496 | LOCKWASHER (.312)-Pulley Screw | 4 | |||||
| 24 | 22-328022 | PLUG-Pipe (FOR WATER PUMP BODY) | 1 | 22-32802 | 4 | ||||
| 25 | 57-74271Q | V BELT-Water Pump | 1 | 57-74271T | |||||
| 26 | 47489A2 | BRACKET KIT-Water Pump | 1 | This Part is No Longer Available | |||||
| 27 | 10-34354 | SCREW (.375-16 x 1.500)-Water Pump Bracket | 1 | ||||||
| 28 | 13-35048 | LOCKWASHER (.375) | 1 | ||||||
| 29 | 13-32993 | LOCKWASHER (.437)-Bracket Screw | 1 | ||||||
| 30 | 12-27025 | WASHER-Bracket Screw | 1 | ||||||
| 31 | 10-47462 | SCREW (.437-14 x 1.00)-Water Pump Bracket | 1 | ||||||
| 32 | 10-48948 | SCREW (.437-14 x .875)-Water Pump Bracket | 1 | This Part is No Longer Available | |||||
| 33 | 12-29330 | WASHER (FOR SLOT) | 1 | ||||||
| 34 | 64177 | BRACE-Water Pump | 1 | This Part is No Longer Available | |||||
| 35 | 10-47462 | SCREW (.437-14 x 1.250)-Brace to Engine | 1 | ||||||
| 36 | 13-32993 | LOCKWASHER (.437)-Brace Screw | 1 | ||||||
| 37 | 10-35786 | SCREW (.375-24 x 1.00)-Water Pump Brace | 1 | ||||||
| 38 | 13-35048 | LOCKWASHER (.375)-Brace Screw | 1 | ||||||
| 39 | 11-46335 | NUT (.375-24)-Brace Screw | 1 |
