525 SC GM 454 V-8 1991-1992 - Serial 0D456000 Thru 0F348963 - Cylinder Head and Rocker Cover

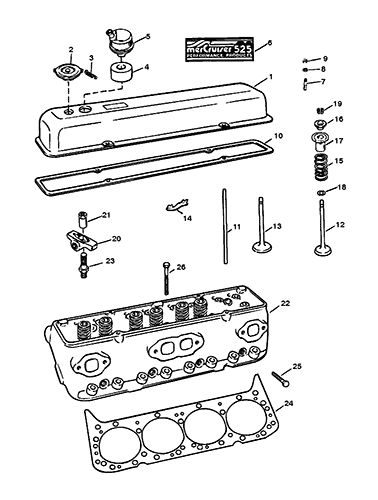

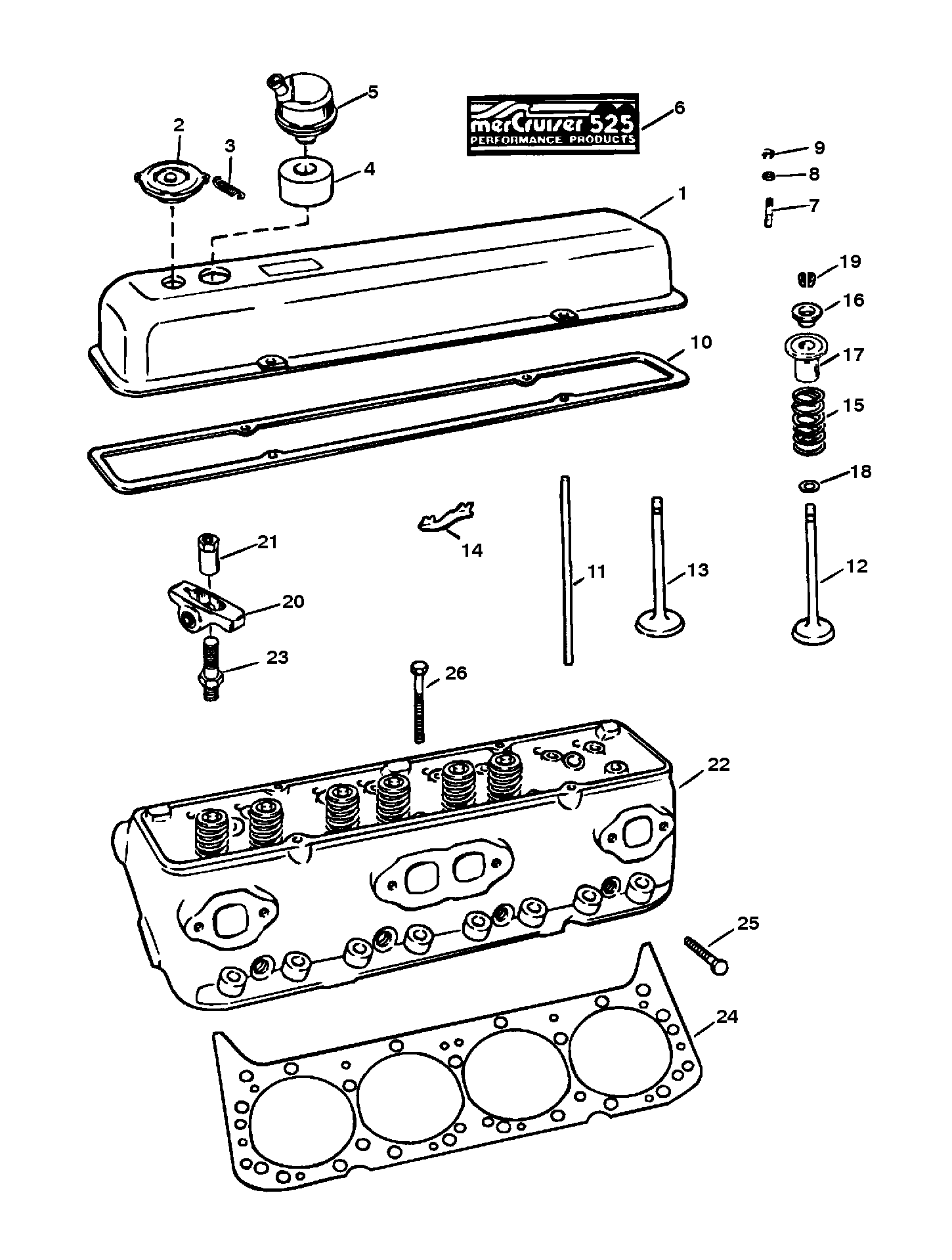

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando Ac-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 821948T1 | COVER ASSEMBLY-Valve | 2 | 821948A1 | This Part is No Longer Available (S/N: 0D456000 - 0D725808) 5 | ||||
| 1 | 821948T4 | COVER ASSEMBLY-Valve | 2 | 821948A4 | This Part is No Longer Available (S/N: 0D763746 - 0F348963) 6 | ||||
| 2 | 17345 | CAP-Oil Filler | 2 | 42336 | (S/N: 0D456000 - 0D456699) 5 | ||||
| 2 | 36-811569 | CAP-Oil Filler | 2 | (S/N: 0D725506 - 0F348963) 6 | |||||
| 3 | 24-70086 | SPRING-Filler Cap | 2 | No longer made, limited availability | |||||
| 4 | 25-49767 | GROMMET-Rocker Cover | 2 | This Part is No Longer Available No longer made, limited availability | |||||
| 5 | 41598T | BREATHER-Rocker Cover | 2 | 14902 | This Part is No Longer Available | ||||
| 6 | 37-818991 | DECAL | 2 | ||||||
| 7 | 16-56766 | STUD-Rocker Cover | 14 | ||||||
| 8 | 12-39143 | WASHER-Rocker Cover Stud | 14 | ||||||
| 9 | 11-8267089 | NUT-Rocker Cover Stud | 14 | 11-20361 | |||||
| 10 | 27-14765 | 676-9-61311 | GASKET-Rocker Cover | 2 | 14 | ||||
| 11 | 848263 | ROD-Valve Push (INLET) | 8 | ||||||
| 11 | 848266 | ROD-Valve Push (EXHAUST) | 8 | ||||||
| 12 | 843080 | VALVE-Exhaust (STANDARD) | 8 | 13024 | |||||
| 13 | 986781 | VALVE-Inlet (STANDARD) | 8 | ||||||
| 14 | 49132 | GUIDE-Push Rod | 8 | (S/N: 0D456000 - 0D725808) 5 | |||||
| 14 | 845707 | GUIDE-Push Rod | 8 | 811586 | (S/N: 0D763746 - 0F348963) 6 | ||||
| 15 | 24-13455T | SPRING-Valve | 16 | 24-13455 | |||||
| 16 | 843376 | RETAINER-Valve Spring | 16 | 98598 | |||||
| 17 | 26-827645 | SEAL-Valve Stem | 16 | 15832 | 14 | ||||
| 18 | 15-845669 | SHIM (.015)-Valve Spring | AR | 15-54531 | 3 | ||||
| 18 | 15-77624 | SHIM (.030)-Valve Spring | AR | 3 | |||||
| 19 | 96028 | KEY-Valve Stem (INCLUDES 32 KEYS) | 1 | ||||||
| 20 | 69304T | ARM-Valve Rocker | 16 | 69304 | This Part is No Longer Available | ||||
| 21 | 11-848610 | NUT-Valve Rocker Arm | 16 | 11-44481 | |||||
| 22 | 938-817129T | HEAD-Cylinder | 2 | 938-8171291 | This Part is No Longer Available (S/N: 0D456000 - 0D725808) 5 | ||||
| 22 | 938-8115293 | HEAD-Cylinder (.375) | 2 | This Part is No Longer Available (S/N: 0D763746 - 0F213142) 5,6 | |||||
| 22 | 938-826363T3 | HEAD ASSY-Cylinder (.437) | 2 | 938-826363A1 | This Part is No Longer Available (S/N: 0F213143 - 0F348963) 6 | ||||
| 23 | 95820 | STUD-Valve Rocker Arm | 16 | ||||||
| 23 | 16-821836 | STUD-Valve Rocker Arm | 16 | ||||||
| 24 | 8M0049045 | 700-36110 | GASKET-Cylinder Head | 2 | 27-13687 | (S/N: 0D456000 - 0D725808) 14,5 | |||
| 24 | 879150139 | GASKET-Cylinder Head | 2 | 27-811546 | (S/N: 0D763746 - 0F348963) 14,6 | ||||
| 25 | 10-8M0000463 | BOLT (2.00 In.)-Cylinder Head | 8 | 10-491061 | |||||
| 26 | 10-8M0000482 | BOLT (4.125 In.)-Cylinder Head | 24 | 10-49105 | |||||
| - | 27-817118A90 | Gasket Set | - | This Part is No Longer Available | |||||
| - | 27-827014A98 | Gasket Set | - | 27-827014A92 |
