525 SC GM 454 V-8 1991-1992 - Serial 0D456000 Thru 0F348963 - Cylinder Block and Camshaft

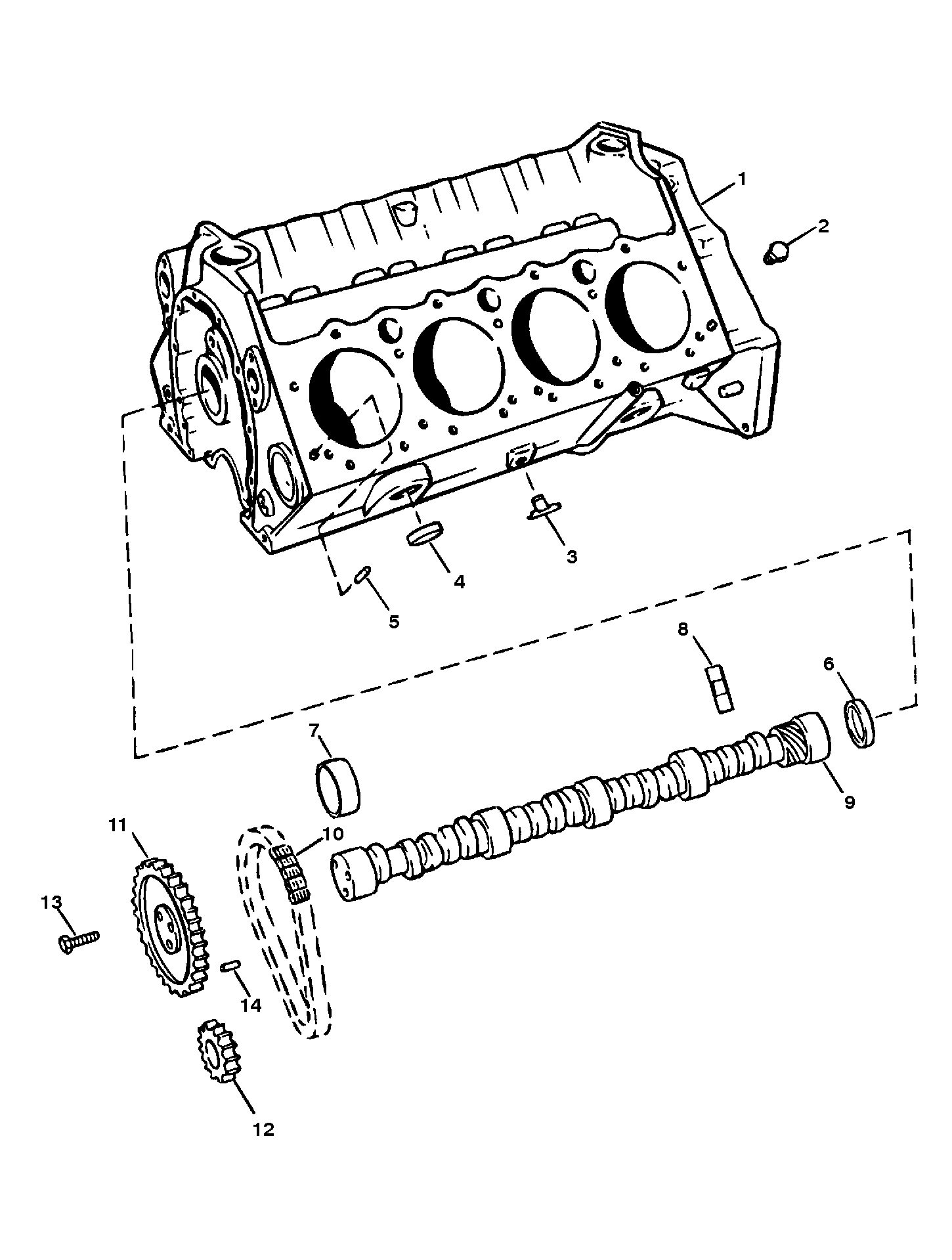

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando Ac-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Note 1: CYLINDER BLOCK ASSEMBLY INCLUDES STANDARD PISTONS, PISTON RINGS, CRANKSHAFT BEARING AND CAMSHAFT BEARINGS. CAUTION: THESE PISTONS CANNOT BE USED IN 525SC ENGINE. NOTE 2: IF CHANGING FROM MARK IV STYLE ENGINE TO GERNERATION V STYLE, AN UPDATE KIT PART NUMBER 847818A2 WILL BE REQUIRED. |
|||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 817358A7 | LONG BLOCK | 1 | This Part is No Longer Available (S/N: 0D456000 - 0D725808) (NOTE #2) 5 | |||||
| - | 805541A1 | LONG BLOCK | 1 | This Part is No Longer Available (S/N: 0D763746 - 0F348963) (NOTE #2) 6 | |||||
| 1 | 842-9638 | CYLINDER ASSY | 1 | This Part is No Longer Available (S/N: 0D456000 - 0D725808) (NOTE #1) 5 | |||||
| 1 | 842-801999 | CYLINDER ASSY | 1 | This Part is No Longer Available (S/N: 0D763746 - 0F348963) (NOTE #1) 6 | |||||
| 2 | 22-32561 | PLUG-Pipe (.250) | 4 | 22-48340 | |||||
| 2 | 22-48358T | PLUG-Pipe (.375) | 2 | 22-48358 | |||||
| 3 | 22-36382 | 700-21887 | PLUG | 2 | |||||
| 4 | 22-69300 | PLUG-Expansion (1.750 Dia.) | 8 | ||||||
| 5 | 17-52190 | PIN-Dowel | 4 | ||||||
| 6 | 19-94140 | PLUG-Expansion | 1 | ||||||
| 7 | 23-85684 | BEARING UNIT (SET) | 1 | ||||||
| 8 | 93722T | LIFTER | 16 | 93722 | |||||
| 9 | 451-7892 | CAMSHAFT | 1 | ||||||
| 10 | 61728 | CHAIN-Timing | 1 | This Part is No Longer Available (S/N: 0D456000 - 0D725808) 5 | |||||
| 10 | 845796T | CHAIN-Timing | 1 | 811580 | (S/N: 0D763746 - 0F348963) 6 | ||||
| 11 | 43-61726 | SPROCKET-Camshaft | 1 | This Part is No Longer Available (S/N: 0D456000 - 0D725808) 5 | |||||
| 11 | 43-811578 | SPROCKET-Camshaft | 1 | (S/N: 0D763746 - 0F348963) 6 | |||||
| 12 | 43-61727 | SPROCKET-Crankshaft | 1 | This Part is No Longer Available (S/N: 0D456000 - 0D725808) 5 | |||||
| 12 | 43-845794T | SPROCKET-Crankshaft | 1 | 43-811579 | (S/N: 0D763746 - 0F348963) 6 | ||||
| 13 | 10-845942 | SCREW (.312-18 x .750) | 3 | 10-35339 | |||||
| 14 | 17-843378 | PIN-Dowel (.250 Dia.) | 1 | 17-35312 | |||||
| NS | 27-817118A90 | GASKET SET-Complete | 1 | This Part is No Longer Available (S/N: 0D456000 - 0D725808) 5 | |||||
| NS | 27-827014A98 | GASKET SET-Complete | 1 | 27-827014A92 | (S/N: 0D763746 - 0F348963) 6 | ||||
| NS | 847818A2 | UPDATE KIT | 1 | This Part is No Longer Available (REFERENCE NOTE # 2) | |||||
