525 SC GM 454 V-8 1991-1992 - Serial 0D456000 Thru 0F348963 - Oil Cooler and Oil Filter and Adaptor

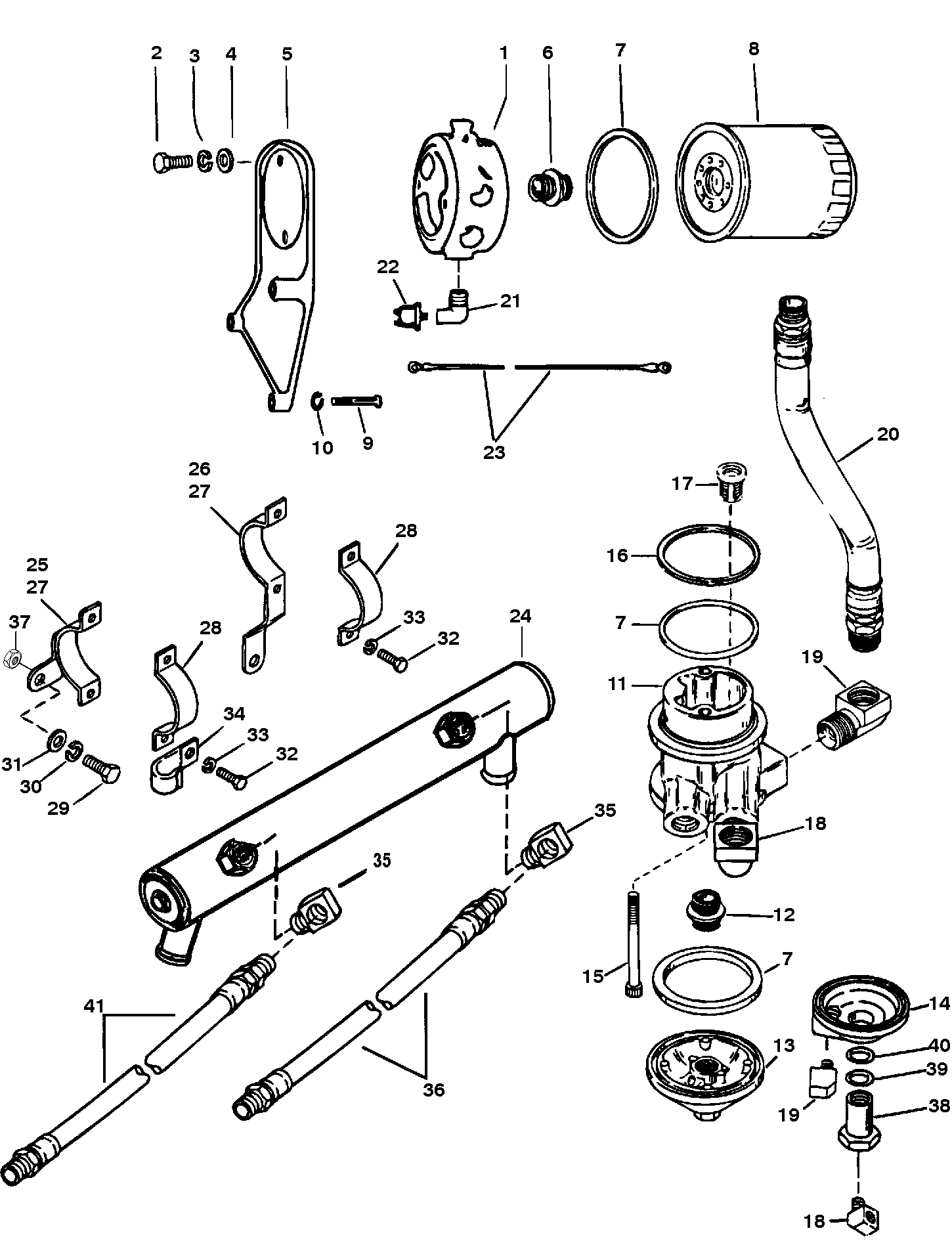

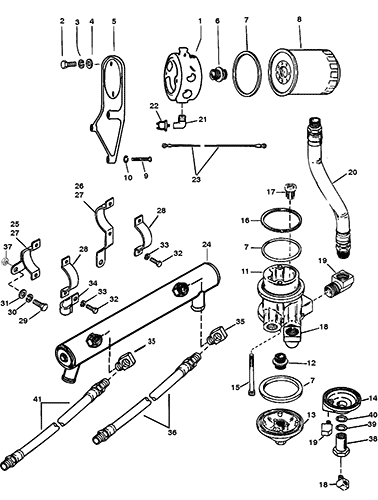

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando Ac-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 48504T2 | ADAPTOR-Oil Filter | 1 | 48504A2 | |||||
| 2 | 10-34353 | SCREW (.375-16 x 1.00)-Adaptor to Bracket | 2 | ||||||
| 3 | 13-35048 | LOCKWASHER (.375)-Adaptor Screw | 2 | ||||||
| 4 | 12-20553 | WASHER-Oil Filter Adaptor Screw | 2 | ||||||
| 5 | 63880T | BRACKET-Oil Filter | 1 | ||||||
| 6 | 22-805632 | CONNECTOR | 1 | ||||||
| 7 | 27-91892 | GASKET-Adaptor Cover and Oil Filter | 3 | 14 | |||||
| 8 | 35-16595Q | FILTER-Oil | 1 | 35-16595 | |||||
| 9 | 10-47462 | SCREW (.437-14 x 1.250)-Bracket to Engine | 2 | ||||||
| 9 | 10-37612 | SCREW (.375-16 x 1.250)-Bracket to Engine | 1 | ||||||
| 10 | 13-35048 | LOCKWASHER (.375)-Bracket Screw | 1 | ||||||
| 10 | 13-32993 | LOCKWASHER (.437)-Bracket Screw | 2 | ||||||
| 11 | 90783A22 | ADAPTOR ASSY-Oil Filter | 1 | (S/N: 0D456000 - 0D763745) 5 | |||||
| 12 | 22-805632 | CONNECTOR | 1 | ||||||
| 13 | 91830 | COVER-Adaptor | 1 | (S/N: 0D456000 - 0D763745) 5 | |||||
| 14 | 35-818400A1 | ADAPTOR | 1 | 35-818400T | (S/N: 0D763746 - 0F348963) 4,6 | ||||
| 15 | 10-91966 | SCREW (.312-18 x 4.00)-Oil Filter Adaptor | 1 | This Part is No Longer Available No longer made, limited availability | |||||
| 15 | 10-91967 | SCREW (.312-18 x 3.500)-Oil Filter Adaptor | 1 | This Part is No Longer Available No longer made, limited availability | |||||
| 16 | 27-99893 | GASKET-Oil Filter Adaptor | 1 | No longer made, limited availability 14 | |||||
| 17 | 99889 | VALVE-By Pass | 1 | ||||||
| 18 | 22-63825 | ELBOW-Oil Hose | 1 | ||||||
| 19 | 22-48246 | ELBOW-Oil Hose | 1 | ||||||
| 20 | 32-9235738 | HOSE-Oil-Adaptor (18.500 In.) | 2 | (S/N: 0D456000 - 0D456103) 5 | |||||
| 20 | 32-9235751 | HOSE ASSY-Oil (26.00 In.) | 1 | (S/N: 0D456104 - 0F348963) 6 | |||||
| 21 | 22-54035 | ELBOW (90_) | 1 | This Part is No Longer Available | |||||
| 22 | 87-94009 | SWITCH-Choke Pressure | 1 | ||||||
| 23 | 84-848879A1 | CABLE ASSEMBLY (RED) (35.500 In.) | 1 | 84-79139A16 | |||||
| 24 | 816074T | OIL COOLER | 1 | 816074 | (BRAVO PLUG-IN MODELS) | ||||
| 24 | 816482T | OIL COOLER | 1 | 816482 | (TRANSMISSION & DRIVELINE MODELS) | ||||
| NS | 817043 | COVER-End | 2 | ||||||
| NS | 27-817042 | GASKET | 2 | ||||||
| NS | 8M0039163 | O RING | 2 | 25-814878 | |||||
| NS | 10-816767 | SCREW | 2 | ||||||
| 25 | 8161951 | BRACKET-Oil Cooler | 1 | This Part is No Longer Available (BRAVO MODELS) | |||||
| 26 | 8161961 | BRACKET-Oil Cooler | 1 | (BRAVO MODELS) | |||||
| 27 | 12820 | BRACKET-Oil Cooler | 2 | ||||||
| 28 | 56328A1 | BRACKET-Oil Cooler | 2 | ||||||
| 29 | 10-34353 | SCREW (.375-16 x 1.00) | 1 | ||||||
| 30 | 13-35048 | LOCKWASHER (.375) | 1 | ||||||
| 31 | 12-20553 | WASHER | 1 | ||||||
| 32 | 10-49668 | SCREW (.250-20 x .750) | 6 | (BRAVO MODELS) | |||||
| 32 | 10-60300 | SCREW (.250-28 x .750) | 4 | ||||||
| 33 | 13-26992 | LOCKWASHER (.250) | 6 | (BRAVO MODELS) | |||||
| 34 | 54-15095 | J CLAMP | 1 | ||||||
| 35 | 22-63825 | ELBOW (90_) | 2 | ||||||
| 36 | 32-9235753 | HOSE ASSEMBLY-Oil (28.00 In.) | 1 | ||||||
| 37 | 11-30506 | NUT (.250-28) | 4 | ||||||
| 38 | 22-821914 | FITTING-Filter Adaptor | 1 | This Part is No Longer Available (S/N: 0D763746 - 0F348963) 6 | |||||
| 39 | 12-55822 | WASHER | 1 | (S/N: 0D763746 - 0F348963) 6 | |||||
| 40 | 25-90196 | O RING-Filter | 1 | (S/N: 0D763746 - 0F348963) 6 | |||||
| 41 | 32-9235749 | HOSE ASSY-Oil (24.00 In.) | 1 | (S/N: 0D456104 - 0F348963) 6 | |||||
| - | 27-817118A90 | Gasket Set | - | This Part is No Longer Available | |||||
| - | 27-827014A98 | Gasket Set | - | 27-827014A92 |
