150 EFI Pro Max and Super Mag - Serial 0D935000 Thru 0G610049 - Cowling

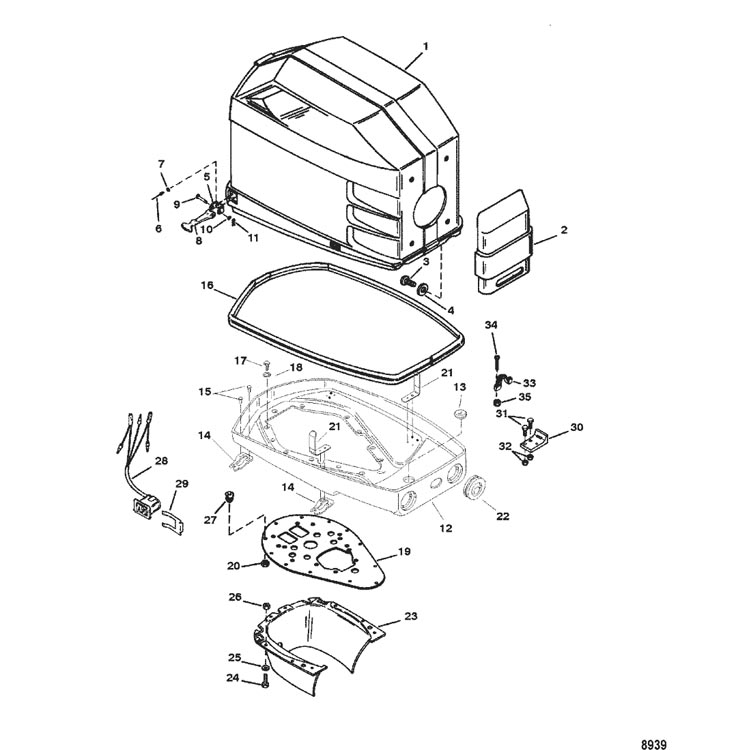

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Detonation Controller/Temperature Sensor
- Driveshaft Housing and Exhaust Tube
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel management System (0G366999 and Below)
- Fuel Management System (0G366999 and Below)
- Fuel Management System (0G367000 and Up)
- Fuel Management System (0G367000 and Up)
- Fuel Pump (Aluminum Body)
- Fuel Pump (Plastic Body With Loose Fittings)
- Fuel Pump (Plastic Body With Molded Fittings)
- Gear Housing (Drive) Standard/Counter Rotation-SportMaster
- Gear Housing (Drive)Torque Master 1.87:1/2:1
- Gear Housing (Driveshaft)(1.78:1)
- Gear Housing Chart (SportMaster)
- Gear Housing(Driveshaft)(CLE-1.87:1/2:1)
- Gear Housing, Propeller Shaft - 1.78:1 Gear Ratio
- Gear Housing, Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Torque Master 1.87:1/2:1
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Transom Brackets
- Trim Solenoid Plate (0G205106 and Below)
- Trim Solenoid Plate (0G205107 and Up)
- Wiring Harness and Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 4006-817704T22 | TOP COWL ASSEMBLY | 1 | 817704A22 | |||||
| 1 | 4006-817704T23 | TOP COWL ASSEMBLY | 1 | 817704A23 | No Longer Available | ||||
| 2 | 817706A3 | FRONT COVER | 1 | ||||||
| 2 | 817706A4 | FRONT COVER | 1 | No Longer Available | |||||
| 3 | 10-69570 | SCREW, (#10-16 x .750) | 4 | ||||||
| 4 | 12-22887 | WASHER | 4 | ||||||
| 5 | 71602 | YOKE | 4 | ||||||
| 5 | 716021 | YOKE | 4 | No Longer Available | |||||
| 6 | 17-816771 | RIVET | 12 | ||||||
| 7 | 12-847883 | WASHER, (.192 x .375 x .033) | 12 | ||||||
| 8 | 817708 | HOLD DOWN | 4 | ||||||
| 9 | 17-58712 | PIN, Clevis | 4 | ||||||
| 10 | 12-847883 | WASHER, (.192 x .375 x .033) | 4 | ||||||
| 11 | 18-210711 | COTTER PIN | 4 | 21071 | |||||
| 12 | 4007-848164T7 | BOTTOM PAN | 1 | 848164A7 | No Longer Available | ||||
| 12 | 4007-848164T8 | BOTTOM PAN | 1 | 817709A13 | No Longer Available | ||||
| 13 | 19-815784 | CAP | 2 | ||||||
| 14 | 13734 | RETAINER | 4 | ||||||
| 14 | 137341 | RETAINER | 4 | No Longer Available | |||||
| 15 | 17-848172 | RIVET (POP-OPEN) | 16 | ||||||
| 16 | 817712003 | SEAL, (6.79 Feet Bulk) | 1 | 8177121 | |||||
| 17 | 10-38601 | SCREW, (.250-28 x 1.250) | 11 | ||||||
| 18 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 11 | ||||||
| 19 | 822188T2 | PLATE | 1 | 8221882 | No Longer Available | ||||
| 20 | 11-826709109 | NUT, (.250-28) | 11 | 35045 | |||||
| 21 | 848165 | BRACE | 2 | ||||||
| 22 | 25-8177131 | GROMMET | 2 | No Longer Available | |||||
| 22 | 25-8177133 | GROMMET | 2 | ||||||
| 23 | 4016-847894T1 | SKIRT | 1 | 847894A1 | |||||
| 23 | 4016-847894A2 | SKIRT | 1 | No Longer Available | |||||
| 24 | 10-69028 | SCREW, (.250-28 x .750) Stainless Steel | 8 | ||||||
| 25 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 16 | ||||||
| 26 | 11-826709109 | NUT, (.250-28) | 8 | 35045 | |||||
| 27 | 25-12602002 | GROMMET | 1 | 126021 | |||||
| 28 | 87-8M0042301 | SWITCH ASSEMBLY | 1 | 18286A40 | |||||
| 29 | 8M0032848 | RETAINER | 1 | 8124431 | |||||
| 30 | 847897 | BRACKET, Fuel Connector | 1 | No Longer Available | |||||
| 31 | 10-28668 | 676-9-78127 | 700-22440 | SCREW, (.250-20 x .875) Stainless Steel | 2 | ||||
| 32 | 11-814101 | NUT, (.250-20) Stainless Steel | 2 | ||||||
| 33 | 88621 | RETAINER (Use where Applicable) | 1 | No Longer Available | |||||
| 34 | 10-690201 | SCREW, (#10-32 x .875) | 2 | 69020 | |||||
| 35 | 11-826709106 | NUT, (#10-32) | 2 | 29488 |
