150 EFI Pro Max and Super Mag - Serial 0D935000 Thru 0G610049 - Swivel Bracket and Steering Arm

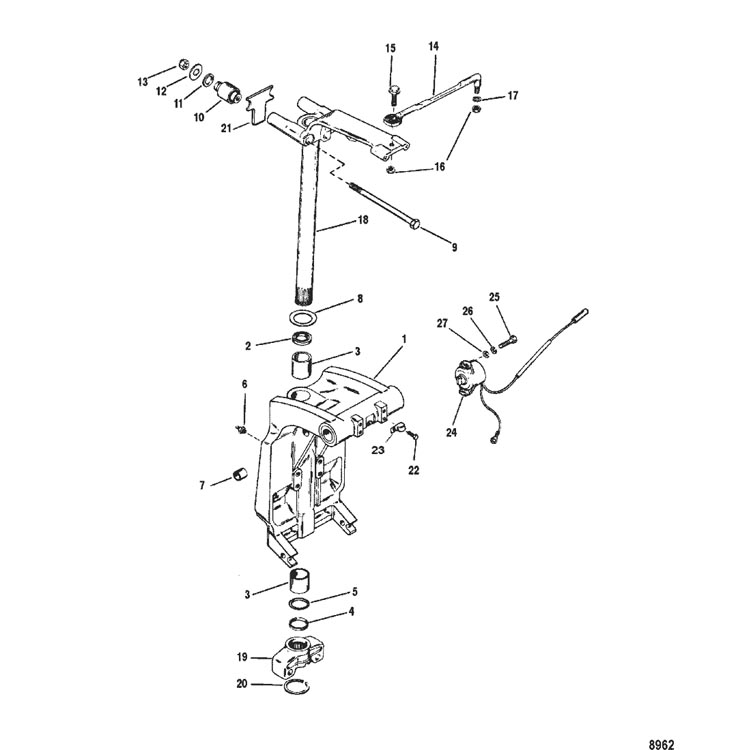

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Detonation Controller/Temperature Sensor
- Driveshaft Housing and Exhaust Tube
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel management System (0G366999 and Below)
- Fuel Management System (0G366999 and Below)
- Fuel Management System (0G367000 and Up)
- Fuel Management System (0G367000 and Up)
- Fuel Pump (Aluminum Body)
- Fuel Pump (Plastic Body With Loose Fittings)
- Fuel Pump (Plastic Body With Molded Fittings)
- Gear Housing (Drive) Standard/Counter Rotation-SportMaster
- Gear Housing (Drive)Torque Master 1.87:1/2:1
- Gear Housing (Driveshaft)(1.78:1)
- Gear Housing Chart (SportMaster)
- Gear Housing(Driveshaft)(CLE-1.87:1/2:1)
- Gear Housing, Propeller Shaft - 1.78:1 Gear Ratio
- Gear Housing, Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Torque Master 1.87:1/2:1
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Transom Brackets
- Trim Solenoid Plate (0G205106 and Below)
- Trim Solenoid Plate (0G205107 and Up)
- Wiring Harness and Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1499-8M0102865 | SWIVEL BRACKET ASSEMBLY | 1 | 8710A20 | |||||
| 1 | 1499-8710T20 | SWIVEL BRACKET ASSEMBLY | 1 | ||||||
| 2 | 26-87735 | SEAL, Oil (LOWER) | 1 | ||||||
| 3 | 23-818764 | BUSHING | 2 | ||||||
| 4 | 23-816039 | SPACER | 1 | ||||||
| 5 | 25-33504 | O-RING | 1 | ||||||
| 6 | 22-74036 | FITTING, Grease | 2 | ||||||
| 7 | 23-821207 | BUSHING | 2 | ||||||
| 8 | 12-816432 | THRUST WASHER | 1 | ||||||
| 9 | 10-8M0000491 | SCREW, (.437-20 x 7.50) | 2 | 78689 | |||||
| 10 | 776981 | MOUNT | 2 | ||||||
| 11 | 12-66921 | WASHER | 2 | ||||||
| 12 | 12-78688 | WASHER | 2 | 814432 | |||||
| 13 | 11-34933 | NUT, (.437-20) Stainless Steel | 2 | ||||||
| 14 | 92876A12 | LINK ASSEMBLY, Steering | 1 | 92876A1 | |||||
| 15 | 10-849838 | SCREW, (.375-24 x 1.25) | 1 | 14000 | |||||
| 16 | 11-826709113 | NUT, (.375-24) | 2 | 34863 | |||||
| 17 | 12-34931 | WASHER, (.406 x .734 x .063) Stainless Steel | 2 | ||||||
| 18 | 17-826432A2 | SWIVEL PIN ASSEMBLY, Steering Arm | 1 | ||||||
| 18 | 17-826432A2 | SWIVEL PIN ASSEMBLY, Steering Arm | 1 | 67706A56 | |||||
| 19 | 878182T | YOKE ASSEMBLY, Bottom | 1 | ||||||
| 19 | 878182T | YOKE ASSEMBLY, Bottom | 1 | ||||||
| 20 | 53-67684 | RING, Retaining | 1 | ||||||
| 21 | 8M0000516 | BUMPER (USE WHERE APPLICABLE) | 1 | 888821 | |||||
| 22 | 10-64014 | SCREW, (.250-28 x .500) | 2 | ||||||
| 23 | 54-54457 | J CLIP | 1 | ||||||
| 25 | 10-852368 | SCREW, (#10-24 x .750) | 2 | 56682 | |||||
| 26 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 27 | 12-89302 | WASHER, (.203 x .406 x .040) | 2 |
