150 EFI Pro Max and Super Mag - Serial 0D935000 Thru 0G610049 - Gear Housing, Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio

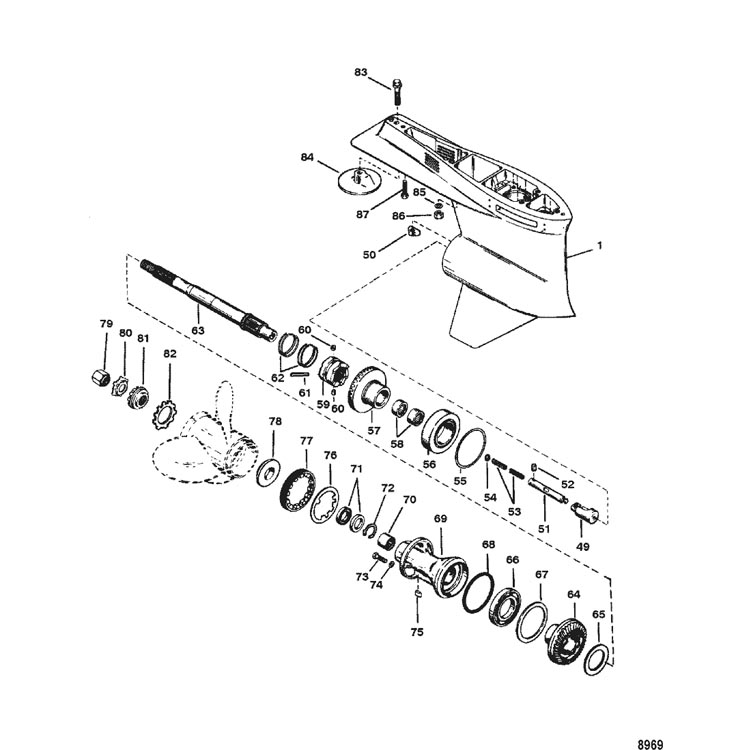

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1685-840560T37         GEAR HOUSING ASSEMBLY 1 847902A84
- 1685-840560T34



GEAR HOUSING ASSEMBLY 1  847902A82
- 1685-840560T37



GEAR HOUSING ASSEMBLY 1 847902A85
- 1685-840560T34



GEAR HOUSING ASSEMBLY 1  847902A83
1 1685-8M0083306



GEAR HOUSING ASSEMBLY 1 847902A15
1 1685-8M0083306



GEAR HOUSING ASSEMBLY 1 847902A16
49 89594A1



FOLLOWER ASSEMBLY 1
50 789562



SHIFT CAM 1 78956
51 79911A1



ROD 1
52 17-8M0084245



PIN 1 78906
53 24-79910



SPRING 2
54 12-78910



WASHER 2
55 15-47397A1



SHIM SET AR
56 31-78172A1



BEARING ASSEMBLY, Tapered Roller 1
57 43-44102A5



GEAR SET 1
57 43-44104A7



GEAR SET (Includes Reverse Gear) 1
58 31-549281



BEARING, Roller 1
59 52-42672T



RATCHET 1 42672
60 17-78909



PIN, Detent 2
61 17-42671



PIN, Cross 1
62 24-78962



SPRING 2
63 44-840451A03



PROPELLER SHAFT 1   No Longer Available
64 43-847632A1



GEAR ASSEMBLY, Reverse 1
64 43-822824A1



GEAR ASSEMBLY, Reverse 1
65 23-822823



THRUST RING 1
66 30-88957T



BEARING ASSEMBLY, Ball 1 88957
67 681001



RING, Thrust 1
68 25-31534



O-RING 1
69 848840A1



CARRIER ASSEMBLY, Bearing 1 847610A1
70 31-817072



BEARING, Roller 1
71 26-815565



SEAL, Oil 2
72 53-817071



RING, Snap 1
73 22-8M0058389



FITTING KIT, Magnetic, Plug Fill/Drain 1 67892A1
74 12-191833



WASHER, Fiber 1 19183
75 28-30281



KEY 1
76 14-79447



TAB WASHER 1
77 158401



COVER 1
78 8354675



THRUST HUB 1 131711
79 11-52707Q1



PROP NUT KIT, (.750-16) 1 52707A1
80 14-816629Q



TAB WASHER 1 816629
81 12-31211Q03



WASHER, Splined 1 31211A2
82 13-423511



LOCKWASHER, Toothed 1
83 10-66024



SCREW, (.437-14 x 1.75) 1
84 76214Q5



ANODE KIT 1 76214A5
85 12-822836



WASHER, (.445 x .805 x .108) 2
86 11-859116



NUT, (.4375-20) 2 134391
87 10-30206



SCREW, (.375-16 x 1.00) Stainless Steel 1
- 26-89238A3



SEAL KIT, Gear Housing 1
