150 EFI Pro Max and Super Mag - Serial 0D935000 Thru 0G610049 - Transom Brackets

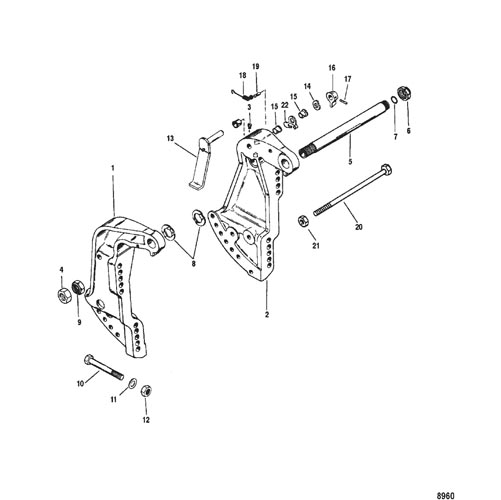

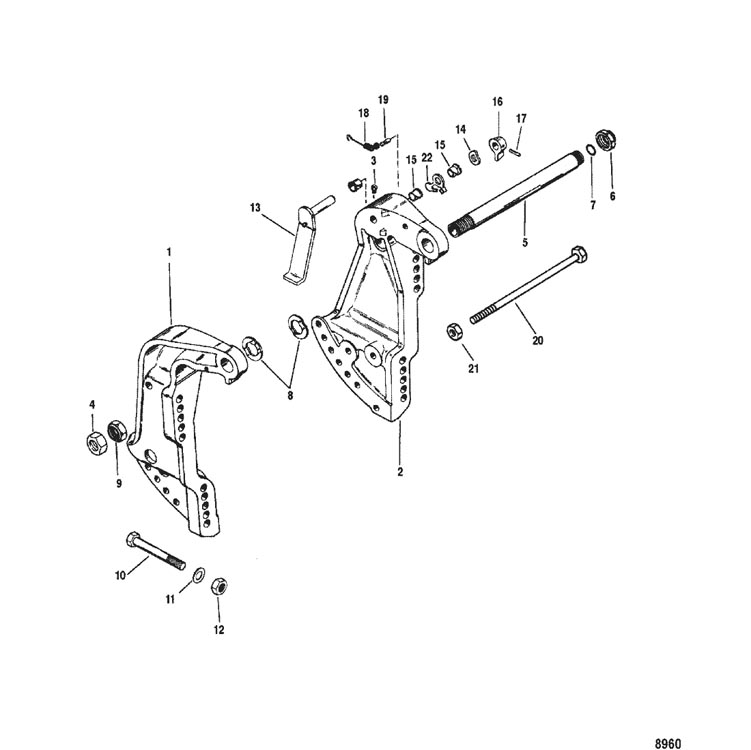

Section Drawing: (Hover or click to view larger)
