150 EFI Pro Max and Super Mag - Serial 0D935000 Thru 0G610049 - Fuel Pump (Plastic Body With Loose Fittings)

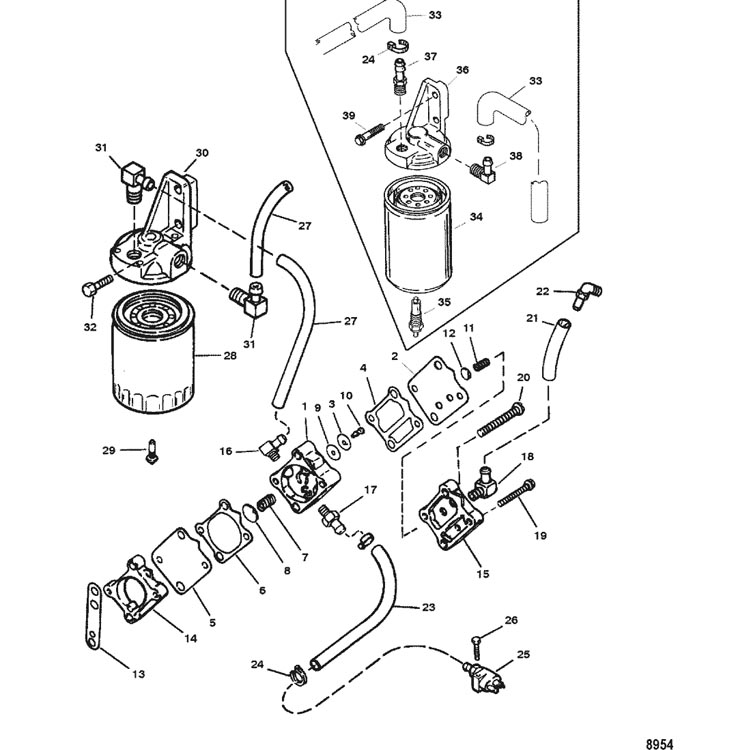

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Detonation Controller/Temperature Sensor
- Driveshaft Housing and Exhaust Tube
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel management System (0G366999 and Below)
- Fuel Management System (0G366999 and Below)
- Fuel Management System (0G367000 and Up)
- Fuel Management System (0G367000 and Up)
- Fuel Pump (Aluminum Body)
- Fuel Pump (Plastic Body With Loose Fittings)
- Fuel Pump (Plastic Body With Molded Fittings)
- Gear Housing (Drive) Standard/Counter Rotation-SportMaster
- Gear Housing (Drive)Torque Master 1.87:1/2:1
- Gear Housing (Driveshaft)(1.78:1)
- Gear Housing Chart (SportMaster)
- Gear Housing(Driveshaft)(CLE-1.87:1/2:1)
- Gear Housing, Propeller Shaft - 1.78:1 Gear Ratio
- Gear Housing, Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Torque Master 1.87:1/2:1
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Transom Brackets
- Trim Solenoid Plate (0G205106 and Below)
- Trim Solenoid Plate (0G205107 and Up)
- Wiring Harness and Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 14360T75 | PUMP ASSEMBLY, Fuel | 1 | 14360A53 | |||||
| 2 | 21-857005A1 | DIAPHAGM KIT | 1 | 42990A10 | |||||
| 3 | NSS | Check Valve-Rubber | 2 | NOT SOLD SEPARATE | |||||
| 4 | NSS | Gasket-Boost | 1 | NOT SOLD SEPARATE | |||||
| 5 | NSS | Diaphragm | 2 | NOT SOLD SEPARATE | |||||
| 6 | NSS | Gasket-Pulse | 1 | NOT SOLD SEPARATE | |||||
| 7 | NSS | Spring | 1 | NOT SOLD SEPARATE | |||||
| 8 | NSS | Cap | 1 | NOT SOLD SEPARATE | |||||
| 9 | NSS | Check Valve | 2 | NOT SOLD SEPARATE | |||||
| 10 | NSS | Retainer | 2 | NOT SOLD SEPARATE | |||||
| 11 | NSS | Spring | 1 | NOT SOLD SEPARATE | |||||
| 12 | NSS | Cap | 1 | NOT SOLD SEPARATE | |||||
| 13 | 27-987691 | GASKET, Base | 1 | ||||||
| 14 | 144303 | BASE, Fuel Pump | 1 | ||||||
| 15 | 987752 | PLATE, Fuel Pump | 1 | ||||||
| 16 | 22-996642 | ELBOW | 1 | 99664 | |||||
| 17 | 22-291112 | CONNECTOR | 1 | 29111 | |||||
| 18 | 22-433351 | CONNECTOR, 90 Degree (.125-27) Nylon | 1 | 43335 | |||||
| 19 | 10-82104540 | SCREW, (M5 x 40), Fuel Pump | 2 | ||||||
| 20 | 10-82130050 | SCREW, (M6 x 50), Fuel Pump to Crankcase | 2 | ||||||
| 21 | 32-9912878 | HOSE, (.187) (26.00 Inches Bulk) | 1 | ||||||
| 22 | 22-997511 | FITTING, (.0625-27) Brass | 1 | 99751 | |||||
| 23 | 32-8M0108349 | TUBING, (28.00 Inches Bulk) | 1 | 83075780 | |||||
| 24 | 54-816311T | TIE STRAP, (8.00 Inches) | AR | 816311 | |||||
| 25 | 22-816856Q3 | CONNECTOR ASSEMBLY, Fuel - Plastic | 1 | 816856A3 | |||||
| 26 | 10-69067 | SCREW, (.250-20 x 1.375) | 1 | ||||||
| 27 | 32-1350385 | TUBING, (30.00 Inches Bulk) (15-1/2 IN.)(19 IN.) | 2 | 1350382 | |||||
| 28 | 35-18458Q3 | FILTER ASSEMBLY, Fuel | 1 | 18458A3 | |||||
| 29 | 14570 | PROBE | 1 | ||||||
| 30 | 13170A3 | BASE | 1 | ||||||
| 31 | 22-136071 | FITTING | 2 | 13607 | |||||
| 32 | 10-455611 | SCREW, (.250-20 x 1.12) | 2 | 45561 | |||||
| 33 | 32-1350385 | TUBING, (30.00 Inches Bulk) (15-1/2 IN.)(19 IN.) | 2 | 1350382 | |||||
| 34 | 35-18458Q4 | FILTER KIT | 1 | 18458A4 | |||||
| 35 | 8285861 | PROBE | 1 | 828586 | |||||
| 36 | 13170A3 | BASE | 1 | ||||||
| 37 | 22-89771Q2 | CONNECTOR, (.250-18) (STRAIGHT) | 1 | 89771 | |||||
| 38 | 22-136071 | FITTING | 1 | 13607 | |||||
| 39 | 10-455611 | SCREW, (.250-20 x 1.12) | 2 | 45561 | |||||
| - | 27-823142A94 | GASKET SET | 1 | ||||||
| - | 809839T94 | POWERHEAD ASSEMBLY | 1 | 809839A94 | |||||
| - | 808603T94 | POWERHEAD ASSEMBLY | 1 | 808603A94 |
