150 EFI Pro Max and Super Mag - Serial 0D935000 Thru 0G610049 - Power Trim Motor

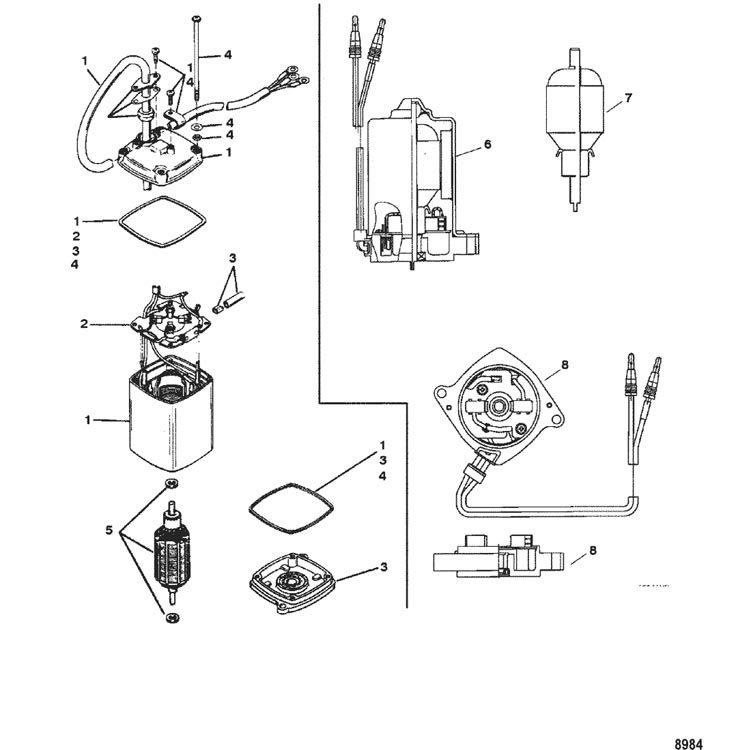

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Detonation Controller/Temperature Sensor
- Driveshaft Housing and Exhaust Tube
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel management System (0G366999 and Below)
- Fuel Management System (0G366999 and Below)
- Fuel Management System (0G367000 and Up)
- Fuel Management System (0G367000 and Up)
- Fuel Pump (Aluminum Body)
- Fuel Pump (Plastic Body With Loose Fittings)
- Fuel Pump (Plastic Body With Molded Fittings)
- Gear Housing (Drive) Standard/Counter Rotation-SportMaster
- Gear Housing (Drive)Torque Master 1.87:1/2:1
- Gear Housing (Driveshaft)(1.78:1)
- Gear Housing Chart (SportMaster)
- Gear Housing(Driveshaft)(CLE-1.87:1/2:1)
- Gear Housing, Propeller Shaft - 1.78:1 Gear Ratio
- Gear Housing, Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Torque Master 1.87:1/2:1
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Transom Brackets
- Trim Solenoid Plate (0G205106 and Below)
- Trim Solenoid Plate (0G205107 and Up)
- Wiring Harness and Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 878265A6 | TRIM MOTOR | 1 | 811628 | |||||
| 1 | 811624 | FRAME AND FIELD KIT | 1 | No Longer Available | |||||
| 2 | 811625 | BRUSH CARD KIT | 1 | No Longer Available | |||||
| 3 | 811623 | END FRAME KIT | 1 | ||||||
| 4 | 811626 | SEAL KIT | 1 | No Longer Available | |||||
| 5 | 811628 | ARMATURE KIT | 1 | No Longer Available | |||||
| - | 8M0031551 | MOTOR ASSEMBLY | 1 | 828708 | |||||
| 6 | 828714A1 | BRUSH AND SEAL KIT | 1 | ||||||
| 7 | 828713T1 | ARMATURE KIT | 1 | 828713A1 | No Longer Available | ||||
| 8 | 828715A1 | END FRAME (Complete) | 1 |
