150 EFI Pro Max and Super Mag - Serial 0D935000 Thru 0G610049 - Reed Block and Cylinder Head

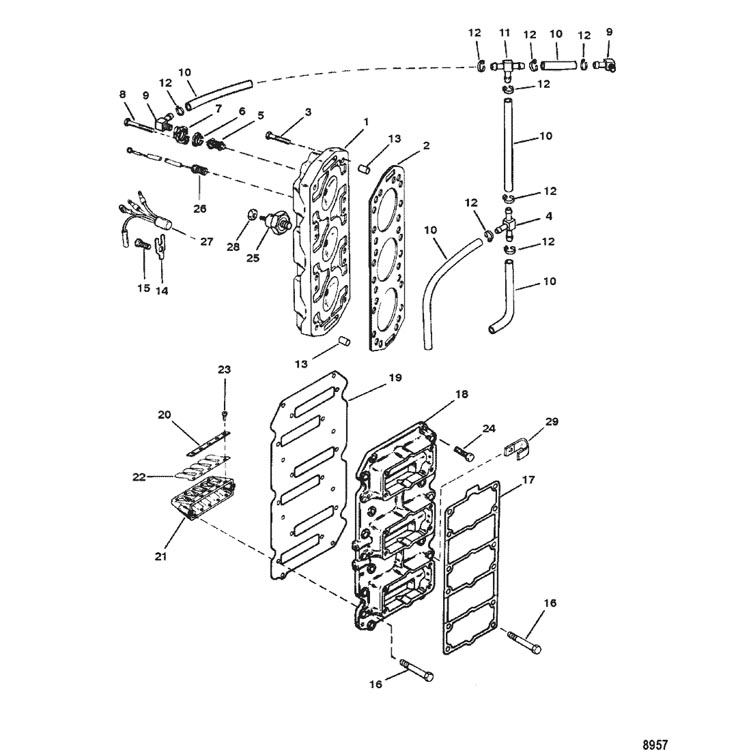

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Detonation Controller/Temperature Sensor
- Driveshaft Housing and Exhaust Tube
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel management System (0G366999 and Below)
- Fuel Management System (0G366999 and Below)
- Fuel Management System (0G367000 and Up)
- Fuel Management System (0G367000 and Up)
- Fuel Pump (Aluminum Body)
- Fuel Pump (Plastic Body With Loose Fittings)
- Fuel Pump (Plastic Body With Molded Fittings)
- Gear Housing (Drive) Standard/Counter Rotation-SportMaster
- Gear Housing (Drive)Torque Master 1.87:1/2:1
- Gear Housing (Driveshaft)(1.78:1)
- Gear Housing Chart (SportMaster)
- Gear Housing(Driveshaft)(CLE-1.87:1/2:1)
- Gear Housing, Propeller Shaft - 1.78:1 Gear Ratio
- Gear Housing, Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Torque Master 1.87:1/2:1
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Transom Brackets
- Trim Solenoid Plate (0G205106 and Below)
- Trim Solenoid Plate (0G205107 and Up)
- Wiring Harness and Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 18488F1 | CYLINDER HEAD | 2 | ||||||
| 2 | 27-822844T05 | GASKET | 2 | 8228441 | |||||
| 3 | 10-98534 | SCREW, (.375-16 x 2.30) | 24 | ||||||
| 3 | 10-13450 | SCREW, (.375-16 x 2.30) | 1 | No Longer Available | |||||
| 4 | 22-815914 | T-FITTING | 1 | ||||||
| 5 | 75692 | THERMOSTAT | 2 | ||||||
| 6 | 27-62386001 | GASKET | 2 | 62386 | |||||
| 7 | 90390A1 | COVER KIT | 2 | ||||||
| 8 | 10-35386 | SCREW, (.312-18 x 1.00) | 4 | ||||||
| 9 | 22-136071 | FITTING, WATER HOSES | 2 | 13607 | |||||
| 10 | 32-8M0108349 | TUBING, (28.00 Inches Bulk) (Cut (1) to 2-1/2 Inches, (2) to 7-1/2 Inches, (1) to 10-1/2 Inches, (1) to 14-1/2 Inches) | 5 | 83075780 | |||||
| 11 | 22-90824001 | TEE | 1 | 90824 | |||||
| 12 | 54-816311T | TIE STRAP, (8.00 Inches) | AR | 816311 | |||||
| 13 | 17-63779 | PIN, Dowel (.250 x .625) | 4 | ||||||
| 14 | 137151 | RETAINER | 2 | ||||||
| 15 | 10-98257 | SCREW, (.312-18 x .500) | 2 | ||||||
| 16 | 10-55715 | SCREW, (.250-20 x .880) | 6 | ||||||
| 16 | 10-90197 | SCREW, (.250-20 x 1.125) | 6 | ||||||
| 17 | 27-167371 | GASKET | 1 | ||||||
| 18 | 17735A2 | ADAPTOR PLATE ASSEMBLY | 1 | No Longer Available | |||||
| 19 | 27-146972 | GASKET | 1 | ||||||
| 20 | 961832 | CLAMP, Reed | 12 | ||||||
| 21 | 75953 | REED BLOCK | 6 | ||||||
| 21 | 11645A4 | REED BLOCK | 6 | No Longer Available | |||||
| 22 | 34-14594A2 | REED ASSEMBLY | 6 | 14594A1 | |||||
| 22 | 34-14594A3 | REED ASSEMBLY | 6 | ||||||
| 23 | 10-823588 | SCREW, (#8-32 x .250), Reeds to Reed Block | 60 | ||||||
| 23 | 10-849038 | SCREW | 48 | 849039 | |||||
| 24 | 10-28668 | 676-9-78127 | 700-22440 | SCREW, (.250-20 x .875) Stainless Steel | 8 | ||||
| 25 | 825164 | SENSOR, Detonation | 1 | No Longer Available | |||||
| 26 | 97465 | SENDER, Temperature (STARBOARD) | 1 | ||||||
| 27 | 13536A6 | SENSOR ASSEMBLY, Temperature (PORT) | 1 | ||||||
| 28 | 11-45076 | NUT, (#10-32) Brass | 1 | ||||||
| 29 | 54-55098 | J CLIP | 1 | ||||||
| - | 27-823142A94 | GASKET SET | 1 | ||||||
| - | 809839T94 | POWERHEAD ASSEMBLY | 1 | 809839A94 | |||||
| - | 808603T94 | POWERHEAD ASSEMBLY | 1 | 808603A94 | No Longer Available |
