150 EFI Pro Max and Super Mag - Serial 0D935000 Thru 0G610049 - Gear Housing, Propeller Shaft-Torque Master 1.87:1/2:1

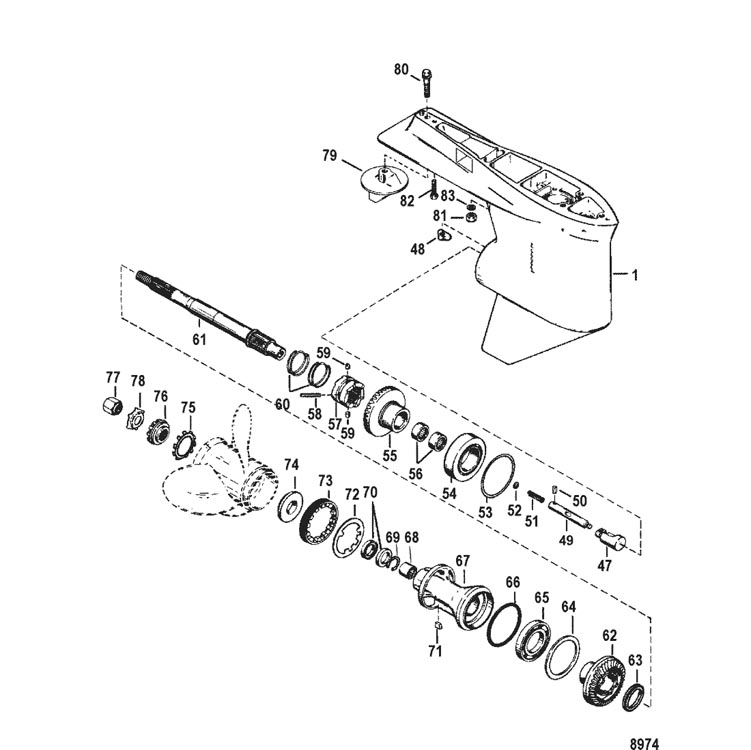

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Detonation Controller/Temperature Sensor
- Driveshaft Housing and Exhaust Tube
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel management System (0G366999 and Below)
- Fuel Management System (0G366999 and Below)
- Fuel Management System (0G367000 and Up)
- Fuel Management System (0G367000 and Up)
- Fuel Pump (Aluminum Body)
- Fuel Pump (Plastic Body With Loose Fittings)
- Fuel Pump (Plastic Body With Molded Fittings)
- Gear Housing (Drive) Standard/Counter Rotation-SportMaster
- Gear Housing (Drive)Torque Master 1.87:1/2:1
- Gear Housing (Driveshaft)(1.78:1)
- Gear Housing Chart (SportMaster)
- Gear Housing(Driveshaft)(CLE-1.87:1/2:1)
- Gear Housing, Propeller Shaft - 1.78:1 Gear Ratio
- Gear Housing, Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Torque Master 1.87:1/2:1
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Transom Brackets
- Trim Solenoid Plate (0G205106 and Below)
- Trim Solenoid Plate (0G205107 and Up)
- Wiring Harness and Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1686-827214T24 | GEAR HOUSING ASSEMBLY | 1 | 827214A5 | No Longer Available | ||||
| - | 1686-827214T24 | GEAR HOUSING ASSEMBLY | 1 | 827214A6 | No Longer Available | ||||
| - | 1686-827214T23 | GEAR HOUSING ASSEMBLY | 1 | 827214A3 | No Longer Available | ||||
| - | 1686-827214T23 | GEAR HOUSING ASSEMBLY | 1 | 827214A4 | No Longer Available | ||||
| - | 1686-827214T24 | GEAR HOUSING ASSEMBLY | 1 | 827214A11 | No Longer Available | ||||
| - | 1686-827214T23 | GEAR HOUSING ASSEMBLY | 1 | 827214A10 | No Longer Available | ||||
| 1 | 1686-827214T25 | GEAR HOUSING ASSEMBLY | 1 | 827214A7 | |||||
| 1 | 1686-827214T25 | GEAR HOUSING ASSEMBLY | 1 | 827214A8 | |||||
| 1 | 1686-827214T25 | GEAR HOUSING ASSEMBLY | 1 | 827214A12 | |||||
| 47 | 89594A1 | FOLLOWER ASSEMBLY | 1 | ||||||
| 48 | 789562 | SHIFT CAM | 1 | 78956 | |||||
| 49 | 79911A1 | ROD | 1 | ||||||
| 50 | 17-8M0084245 | PIN | 1 | 78906 | |||||
| 51 | 24-79910 | SPRING | 1 | ||||||
| 52 | 12-78910 | WASHER | AR | ||||||
| 53 | 15-47397A1 | SHIM SET | AR | ||||||
| 54 | 31-78172A1 | BEARING ASSEMBLY, Tapered Roller | 1 | ||||||
| 55 | 43-44102A5 | GEAR SET | 1 | ||||||
| 55 | 43-44104A7 | GEAR SET | 1 | ||||||
| 56 | 31-549281 | BEARING, Roller | 1 | ||||||
| 57 | 52-42672T | RATCHET | 1 | 42672 | |||||
| 58 | 17-42671 | PIN, Cross | 1 | ||||||
| 59 | 17-78909 | PIN, Detent | 2 | ||||||
| 60 | 24-78962 | SPRING | 2 | ||||||
| 61 | 44-840451A03 | PROPELLER SHAFT | 1 | No Longer Available | |||||
| 62 | 43-847632A1 | GEAR ASSEMBLY, Reverse | 1 | ||||||
| 62 | 43-822824A1 | GEAR ASSEMBLY, Reverse | 1 | ||||||
| 63 | 23-824108 | SPACER | 1 | ||||||
| 64 | 681001 | RING, Thrust | 1 | ||||||
| 65 | 30-88957T | BEARING ASSEMBLY, Ball | 1 | 88957 | |||||
| 66 | 25-31534 | O-RING | 1 | ||||||
| 67 | 848840A1 | CARRIER ASSEMBLY, Bearing | 1 | 847610A1 | |||||
| 68 | 31-817072 | BEARING, Roller | 1 | ||||||
| 69 | 53-817071 | RING, Snap | 1 | ||||||
| 70 | 26-815565 | SEAL, Oil | 2 | ||||||
| 71 | 28-30281 | KEY | 1 | ||||||
| 72 | 14-79447 | TAB WASHER | 1 | ||||||
| 73 | 158401 | COVER | 1 | ||||||
| 74 | 8354675 | THRUST HUB | 1 | 131711 | |||||
| 75 | 13-423511 | LOCKWASHER, Toothed | 1 | ||||||
| 76 | 12-31211Q03 | WASHER, Splined | 1 | 31211A2 | |||||
| 77 | 11-52707Q1 | PROP NUT KIT, (.750-16) | 1 | 52707A1 | |||||
| 78 | 14-816629Q | TAB WASHER | 1 | 816629 | |||||
| 79 | 76214Q5 | ANODE KIT | 1 | 76214A5 | |||||
| 80 | 10-66024 | SCREW, (.437-14 x 1.75) | 1 | ||||||
| 81 | 11-859116 | NUT, (.4375-20) | 2 | 134391 | |||||
| 82 | 10-30206 | SCREW, (.375-16 x 1.00) Stainless Steel | 1 | ||||||
| 83 | 12-822836 | WASHER, (.445 x .805 x .108) | 2 | ||||||
| - | 26-89238A3 | SEAL KIT, Gear Housing | 1 |
