150 EFI Pro Max and Super Mag - Serial 0D935000 Thru 0G610049 - Fuel Management System (0G366999 and Below)

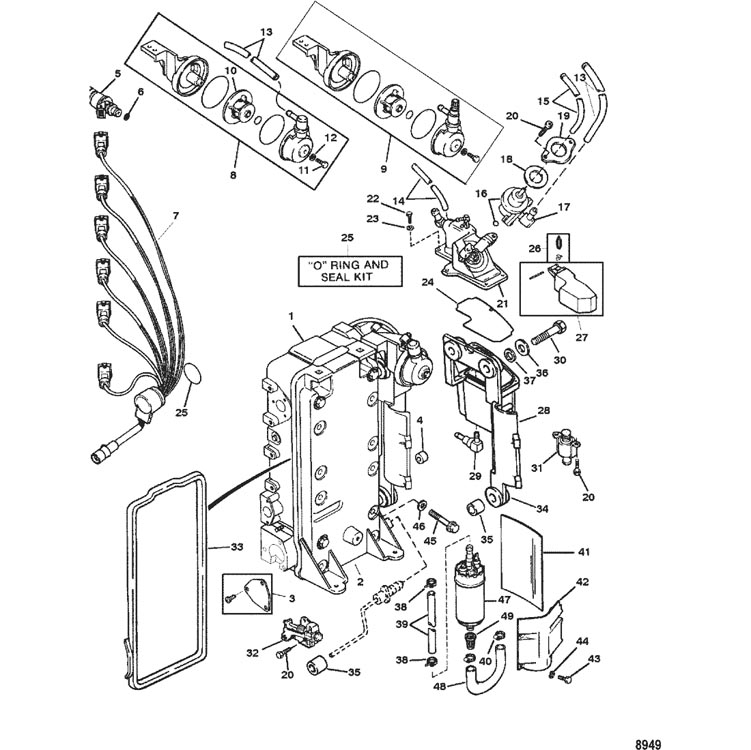

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Detonation Controller/Temperature Sensor
- Driveshaft Housing and Exhaust Tube
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel management System (0G366999 and Below)
- Fuel Management System (0G366999 and Below)
- Fuel Management System (0G367000 and Up)
- Fuel Management System (0G367000 and Up)
- Fuel Pump (Aluminum Body)
- Fuel Pump (Plastic Body With Loose Fittings)
- Fuel Pump (Plastic Body With Molded Fittings)
- Gear Housing (Drive) Standard/Counter Rotation-SportMaster
- Gear Housing (Drive)Torque Master 1.87:1/2:1
- Gear Housing (Driveshaft)(1.78:1)
- Gear Housing Chart (SportMaster)
- Gear Housing(Driveshaft)(CLE-1.87:1/2:1)
- Gear Housing, Propeller Shaft - 1.78:1 Gear Ratio
- Gear Housing, Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Torque Master 1.87:1/2:1
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Transom Brackets
- Trim Solenoid Plate (0G205106 and Below)
- Trim Solenoid Plate (0G205107 and Up)
- Wiring Harness and Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 14817A19 | MANAGEMENT ASSEMBLY, Fuel | 1 | No Longer Available | |||||
| 1 | 827693 | THROTTLE BODY | 1 | No Longer Available | |||||
| 2 | 827692 | COVER | 1 | No Longer Available | |||||
| 3 | 827696 | RETAINER KIT | 1 | No Longer Available | |||||
| 4 | 67748 | ROLLER | 1 | ||||||
| 5 | 18715T | INJECTOR, Fuel | 6 | 18715 | |||||
| 6 | 35-17422 | FILTER | 1 | ||||||
| 7 | 84-15443 | HARNESS KIT | 1 | ||||||
| 8 | 35-15442 | FILTER KIT, Fuel (DESIGN I) | 1 | No Longer Available | |||||
| 9 | 35-154422 | FILTER KIT, Fuel | 1 | 154421 | No Longer Available | ||||
| 9 | 35-154422 | FILTER KIT, Fuel | 1 | No Longer Available | |||||
| 10 | 35-150282 | FILTER, Fuel | 1 | ||||||
| 11 | 10-400034 | SCREW, (M5 x 14) | 1 | ||||||
| 12 | 13-400255 | LOCKWASHER, (M5) | 1 | ||||||
| 13 | 32-1350385 | TUBING, (30.00 Inches Bulk) (1/2 IN. O.D.) | 1 | 1350382 | |||||
| 14 | 32-9912688 | TUBING, (36.00 Inches Bulk) (1/8 IN. I.D.) | 1 | ||||||
| 15 | 32-892024122 | TUBING, (20.00 Feet Bulk) (3/32 IN. I.D.) | 1 | 99130122 | |||||
| 16 | 15027 | REGULATOR | 1 | ||||||
| 17 | 814233 | ELBOW KIT | 1 | No Longer Available | |||||
| 18 | 27-18791 | GASKET | 1 | No Longer Available | |||||
| 19 | 814012 | PLATE | 1 | No Longer Available | |||||
| 20 | 10-814076 | SCREW | AR | No Longer Available | |||||
| 21 | 814010 | COVER KIT | 1 | No Longer Available | |||||
| 22 | 10-4001987 | SCREW, (M4 x 16) | 6 | ||||||
| 23 | 13-26995 | LOCKWASHER, (#8) Stainless Steel | 6 | ||||||
| 24 | 26-18790 | SEAL | 1 | ||||||
| 25 | 15029 | O-RING AND SEAL KIT | 1 | No Longer Available | |||||
| 26 | 15446 | VALVE KIT, Float | 1 | No Longer Available | |||||
| 27 | 15445 | FLOAT KIT | 1 | ||||||
| 28 | 814011 | BODY KIT | 1 | No Longer Available | |||||
| 29 | 21-424811 | CHECK VALVE | 1 | 42481 | |||||
| 30 | 10-4000332 | SCREW, (M6 x 35) | 3 | ||||||
| 31 | 21-18241 | CHECK VALVE | 1 | ||||||
| 32 | 814077 | VALVE, Shut-Off | 1 | No Longer Available | |||||
| 33 | 26-18792 | SEAL | 1 | ||||||
| 34 | 23-19275 | SPACER | 3 | No Longer Available | |||||
| 35 | 23-814913 | SPACER | 3 | No Longer Available | |||||
| 36 | 12-35280 | WASHER, (.255 x .620 x .030) Stainless Steel (LARGE) | 3 | ||||||
| 37 | 12-69057 | WASHER, (.281 x .734 x .063) (SMALL) | 3 | ||||||
| 38 | 54-13791 | 676-9-35604 | CLAMP, (15.7) | 2 | |||||
| 39 | 32-1350385 | TUBING, (30.00 Inches Bulk) (1-3/4 IN.) | 1 | 1350382 | |||||
| 40 | 54-F698772 | CLAMP, Worm Gear | 2 | ||||||
| 41 | 14639 | BLANKET | 1 | No Longer Available | |||||
| 42 | 14640T | COVER | 1 | No Longer Available | |||||
| 43 | 10-32228 | SCREW, (#10-32 x .625) | 4 | ||||||
| 44 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 4 | ||||||
| 45 | 10-845674 | SCREW, (.250-20 x 4) | 12 | 90088 | |||||
| 46 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 10 | ||||||
| 47 | 14307T01 | PUMP ASSEMBLY, Fuel | 1 | 14307A1 | |||||
| 48 | 32-146332 | HOSE | 1 | ||||||
| 49 | 35-885188 | FILTER, Fuel | 1 | 823501 |
