150 EFI Pro Max and Super Mag - Serial 0D935000 Thru 0G610049 - Fuel management System (0G366999 and Below)

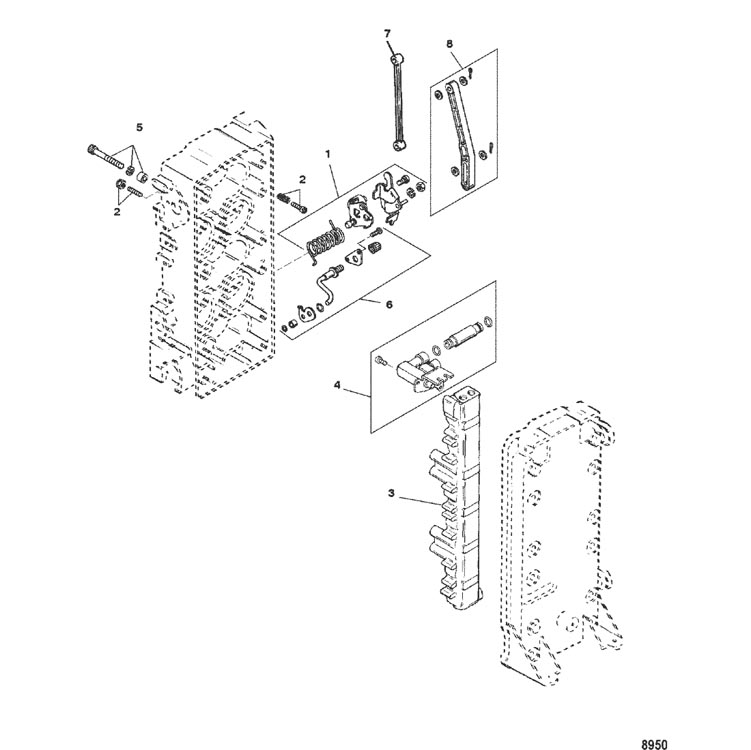

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 827697         LEVER KIT, Link 1   No Longer Available
2 10-827698



SCREW KIT 1
3 827699



FUEL RAIL 1   No Longer Available
3 827699T2



FUEL RAIL 1 8276992 No Longer Available
4 809057T



JOINT KIT, Fuel Pipe 1 809057 No Longer Available
5 10-8276981



SCREW KIT 1   No Longer Available
6 809059



SCHRADER VALVE KIT 1   No Longer Available
7 15444



LINK (DESIGN I) 1   No Longer Available
8 8276891



LINK KIT (DESIGN II) 1   No Longer Available
