150 EFI Pro Max and Super Mag - Serial 0D935000 Thru 0G610049 - Detonation Controller/Temperature Sensor

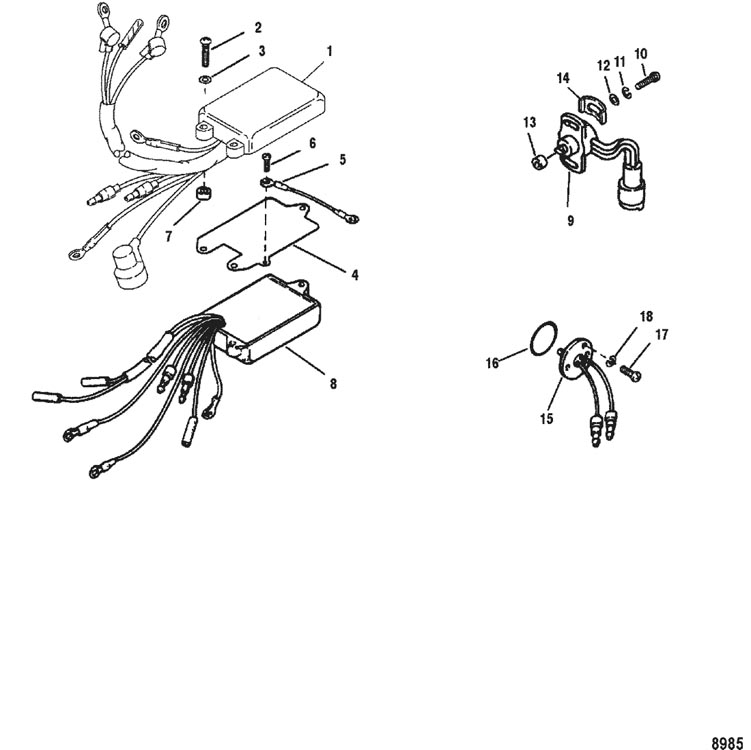

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 826800A8         CONTROLLER ASSEMBLY, Detonation 1 14856A14
2 10-88447



SCREW, (.190-32 x 1.62) 3
3 12-38833



WASHER 3
4 13381



PLATE 1   No Longer Available
5 84-88807A10



CABLE ASSEMBLY 1 60466A20
6 10-62568



SCREW, (#10-16 x .375) 1
7 23-94304



SPACER 3
8 41470A25



MODULE ASSEMBLY, Oil Injection Warning 1
9 14851T03



INDICATOR, Throttle Position 1 14851
10 10-15150



SCREW, (#8-32 x .625) 2
11 13-26995



LOCKWASHER, (#8) Stainless Steel 2
12 12-30164



WASHER, (.192 x .375 x .0312) Stainless Steel 2
13 23-15885



SLEEVE 1
14 813501



PLATE 2
15 13221T01



SENSOR ASSEMBLY, Temperature 1 13221A1
16 25-45711
676-9-76553

O-RING, (.612 x .103) 1
17 10-57583T



SCREW, (#8-32 x .375) 3 57583
18 13-26995



LOCKWASHER, (#8) Stainless Steel 3
- 27-823142A94



GASKET SET 1
