150 EFI Pro Max and Super Mag - Serial 0D935000 Thru 0G610049 - Trim Solenoid Plate (0G205106 and Below)

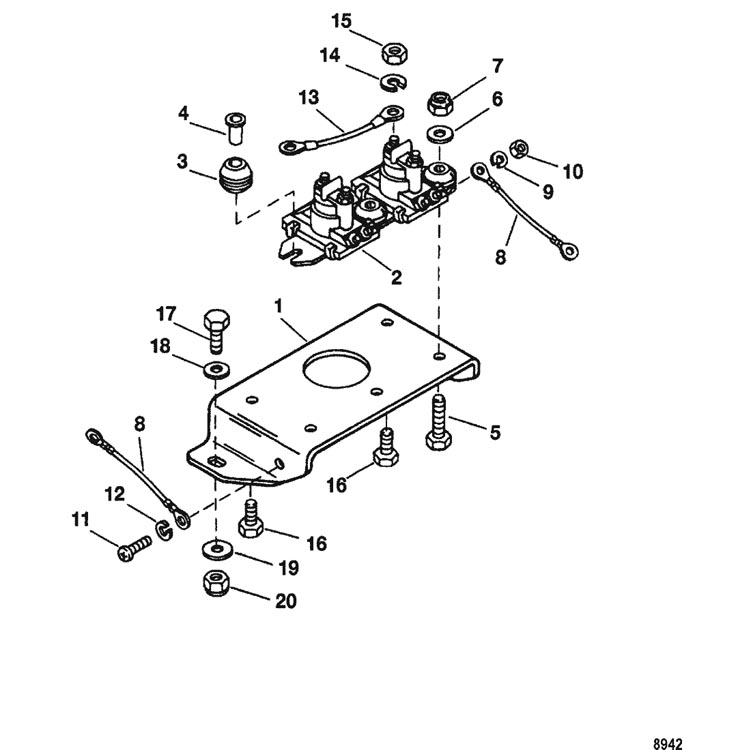

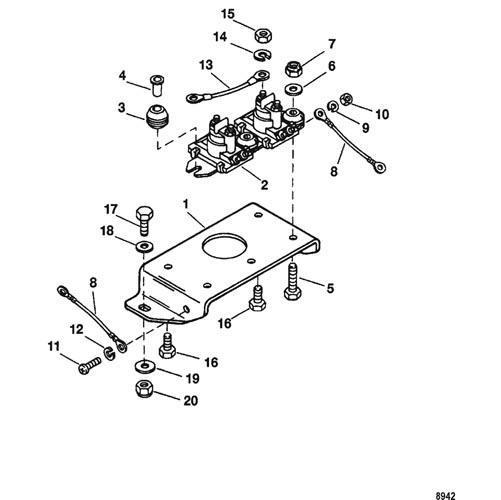

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M0053740         PLATE 1 847896
2 89-818997T1         SOLENOID ASSEMBLY 2 818997A1
3 25-818967         GROMMET 4
4 23-818968         BUSHING 4
5 10-455611         SCREW, (.250-20 x 1.12) 3 45561
6 12-35950         WASHER, (.273 x .437 x .031) Stainless Steel 3
7 11-814101         NUT, (.250-20) Stainless Steel 3
8 84-88807A6         CABLE ASSEMBLY, (3.50 Inches) Black 2
9 13-26995         LOCKWASHER, (#8) Stainless Steel 4
10 11-26419         NUT, (#8-32) Brass 4
11 10-42813         SCREW, (#10-32 X .380) (10-32 X .3/8 IN.) 2
12 13-26996         LOCKWASHER, (#10) Stainless Steel 2
13 84-87379A14         WIRE ASSEMBLY, (2.750 Inches) (RED) 1   No Longer Available
14 13-26992         LOCKWASHER, (.250) Stainless Steel 4
15 11-94330         NUT, (.250-20) Brass (BRASS) 2
16 10-73286         SCREW, (.250-20 x .500) Stainless Steel 2
17 10-69028         SCREW, (.250-28 x .750) Stainless Steel 2
18 12-35462         WASHER, (.2656 x .625 x .0625) Stainless Steel 2
19 12-35280         WASHER, (.255 x .620 x .030) Stainless Steel 2
20 11-826709109         NUT, (.250-28) 2 35045
