150 EFI Pro Max and Super Mag - Serial 0D935000 Thru 0G610049 - Exhaust Divider and Exhaust Plate

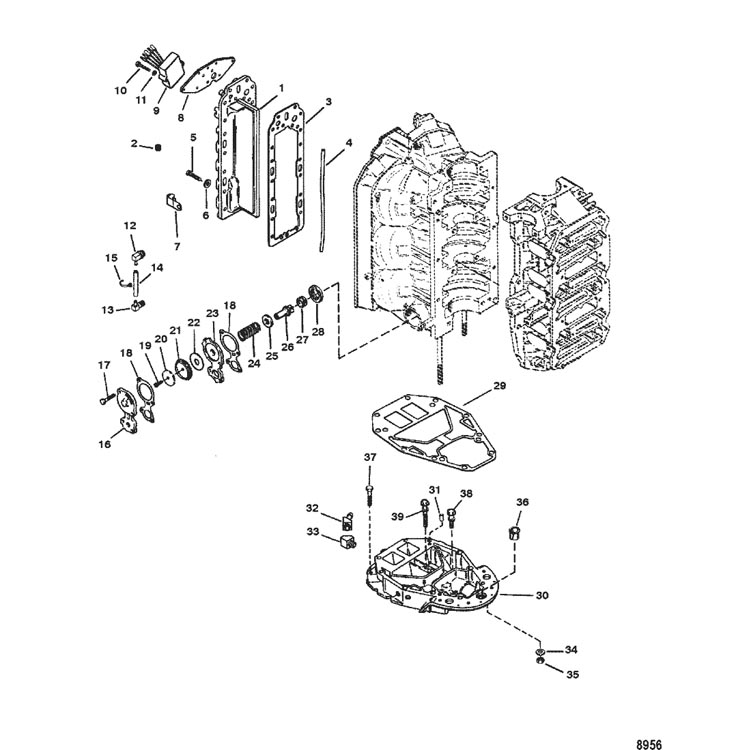

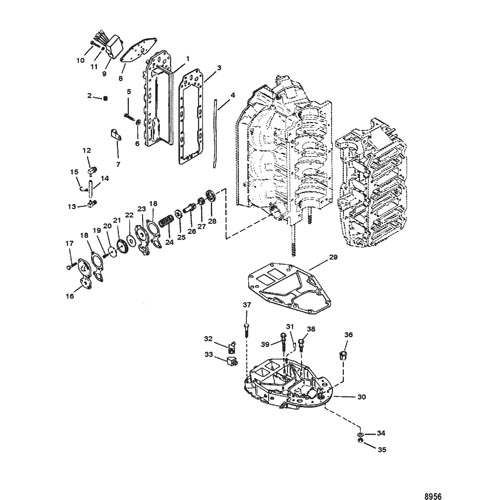

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Detonation Controller/Temperature Sensor
- Driveshaft Housing and Exhaust Tube
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel management System (0G366999 and Below)
- Fuel Management System (0G366999 and Below)
- Fuel Management System (0G367000 and Up)
- Fuel Management System (0G367000 and Up)
- Fuel Pump (Aluminum Body)
- Fuel Pump (Plastic Body With Loose Fittings)
- Fuel Pump (Plastic Body With Molded Fittings)
- Gear Housing (Drive) Standard/Counter Rotation-SportMaster
- Gear Housing (Drive)Torque Master 1.87:1/2:1
- Gear Housing (Driveshaft)(1.78:1)
- Gear Housing Chart (SportMaster)
- Gear Housing(Driveshaft)(CLE-1.87:1/2:1)
- Gear Housing, Propeller Shaft - 1.78:1 Gear Ratio
- Gear Housing, Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Torque Master 1.87:1/2:1
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Transom Brackets
- Trim Solenoid Plate (0G205106 and Below)
- Trim Solenoid Plate (0G205107 and Up)
- Wiring Harness and Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 815552T1 | DIVIDER PLATE | 1 | 815552A1 | |||||
| 2 | 22-328022 | PLUG, Pipe (.125-27) | 1 | 328021 | |||||
| 3 | 27-847525004 | GASKET | 1 | 8475251 | |||||
| 4 | 26-814754 | SEAL, (12.50 Inches) | 1 | ||||||
| 5 | 10-848496 | SCREW | 18 | 847538 | |||||
| 5 | 10-848497 | SCREW, (.312-18 x 1.00) | 2 | ||||||
| 6 | 12-847526 | WASHER (USE WHERE APPLICABLE) | 20 | ||||||
| 7 | 54-814634 | CLAMP (LARGE) | AR | ||||||
| 7 | 54-642352 | J CLIP (SMALL) | 1 | ||||||
| 8 | 8478951 | PLATE, Regulator | 1 | ||||||
| 9 | 8M0084173 | REGULATOR, Voltage | 1 | 815279T | |||||
| 10 | 10-69697 | SCREW, (.250-28 x 1.50) | 4 | No Longer Available | |||||
| 11 | 11-826709109 | NUT, (.250-28) | 4 | 35045 | |||||
| 12 | 22-8144301 | FITTING, (.500-14) | 1 | 814430 | |||||
| 13 | 22-920071 | FITTING, (.250-18) (90 DEGREES) | 1 | 92007 | |||||
| 14 | 32-8M0108355 | HOSE, (57.00 Inches Bulk) (Cut to 23-1/2 IN.) | 1 | 830756109 | |||||
| 15 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | 816311 | |||||
| 16 | 8M0039767 | COVER | 1 | 68729 | |||||
| 17 | 10-74824 | SCREW, (.312-18 x 1.250) | 4 | ||||||
| 18 | 27-78690002 | GASKET | 2 | 78690 | |||||
| 19 | 10-69570 | SCREW, (#10-16 x .750) | 1 | ||||||
| 20 | 12-76451 | WASHER | 1 | ||||||
| 21 | 144791 | DIAPHRAGM | 1 | 14479 | |||||
| 22 | 16496 | DEFLECTOR, Water | 1 | ||||||
| 23 | 16497A1 | PLATE | 1 | ||||||
| 24 | 24-64878 | SPRING, (Black) | 1 | ||||||
| 25 | 12-85303 | WASHER | 1 | ||||||
| 26 | 14480 | POPPET | 1 | ||||||
| 27 | 25-64872 | GROMMET | 1 | ||||||
| 28 | 65848 | CARRIER | 1 | ||||||
| 29 | 27-8231422 | GASKET | 2 | 8231421 | |||||
| 30 | 18260A4 | PLATE ASSEMBLY, Exhaust | 1 | No Longer Available | |||||
| 31 | 17-8M0043826 | PIN, Dowel (.875) | 2 | 823106 | |||||
| 32 | 22-14867 | ELBOW, 45 Degree (45 DEGREES) | 1 | ||||||
| 33 | 22-29085 | FITTING, Elbow (45 Degree) | 1 | ||||||
| 34 | 12-822838 | WASHER, (.401 x .745 x .097) | 6 | ||||||
| 35 | 11-46335 | NUT, (.375-24) | 6 | ||||||
| 36 | 23-27132 | BUSHING | 1 | ||||||
| 37 | 10-898833 | SCREW, (.375-16 x 3.50) | 3 | 66725 | |||||
| 38 | 10-66727 | SCREW, (.312-18 x 1.250) | 1 | ||||||
| 39 | 10-68783 | SCREW, (.312-18 x 2.50) | 1 | ||||||
| - | 27-823142A94 | GASKET SET | 1 | ||||||
| - | 809839T94 | POWERHEAD ASSEMBLY | 1 | 809839A94 | |||||
| - | 808603T94 | POWERHEAD ASSEMBLY | 1 | 808603A94 | No Longer Available |
