150 EFI Pro Max and Super Mag - Serial 0D935000 Thru 0G610049 - Driveshaft Housing and Exhaust Tube

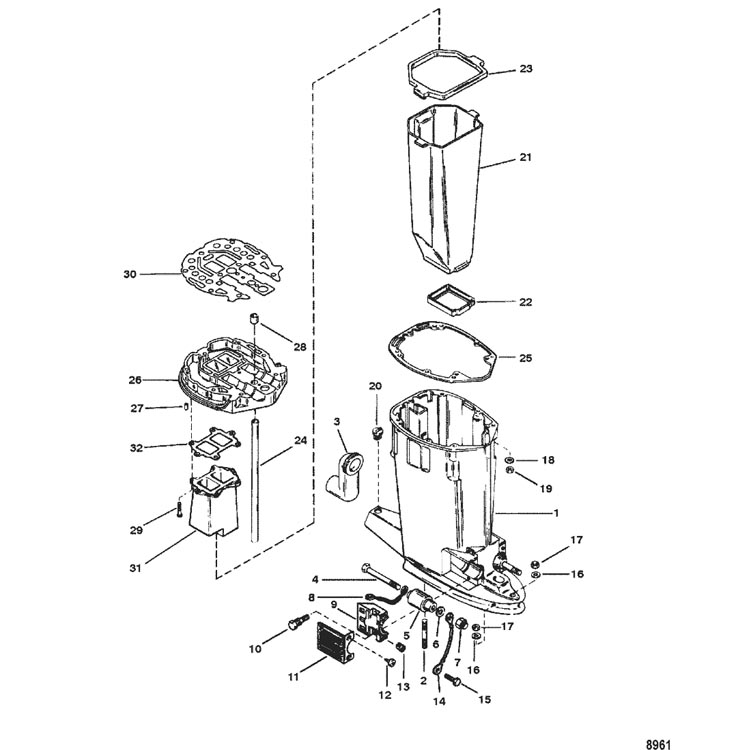

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1590-8343T10         HOUSING ASSEMBLY, Driveshaft 1 8343A10
1 1590-8343T10



HOUSING ASSEMBLY, Driveshaft 1 8343A11
2 16-59579



STUD, (.437-14/.437-20 x 2.812) 2
3 8146181



BOOT, Idle Exhaust 1   No Longer Available
4 10-898831



SCREW, (.500-20 x 6.00) 2 63474
5 816054T1



MOUNT 2 816054
6 12-816056



WASHER 4
7 11-898832



NUT, (.500-20) 2 28040
8 88238A10



CABLE ASSEMBLY, Ground 1
9 54-8M0036782



CLAMP 2 67076
10 10-66727



SCREW, (.312-18 x 1.250) 4
11 8M4500752



COVER, Black 2 67077T
11 67077T



COVER, Gray 2    No Longer Available
12 10-88417



SCREW, (#12-24 x .620) 4
13 11-35521



NUT 4
14 88238A10



CABLE ASSEMBLY, Ground 1
15 10-41508



SCREW, (.250-20 x .500) Stainless Steel 1
16 12-822836



WASHER, (.445 x .805 x .108) 3
17 11-859116



NUT, (.4375-20) 3 134391
18 12-822838



WASHER, (.401 x .745 x .097) 4
19 11-46335



NUT, (.375-24) 4
20 19-64649



PLUG 1
21 18276T



TUBE, Exhaust 1 18276
22 66350001



SEAL (LOWER) 1 66350
23 8M0039076



SEAL (UPPER) 1 177261
24 32-8M0042788



TUBE, Water 1 67295
24 32-8M0042790



TUBE 1 74729
25 27-991734



GASKET 1 991732
26 18233A4



PLATE ASSEMBLY 1    No Longer Available
27 17-43044



PIN, Dowel - Without Hole (.375 x .625) 2
28 26-38970



SEAL 1
29 10-90192



SCREW, (.250-20 x .750) Stainless Steel 6
30 27-183076



GASKET 1 183071
31 812834A2



EXTENSION, Exhaust 1 812834
31 879288T71



EXTENSION, Exhaust 1 41942F3
32 27-782461



GASKET 1 78246
- 27-823142A94



GASKET SET 1
