150 EFI Pro Max and Super Mag - Serial 0D935000 Thru 0G610049 - Power Trim Components

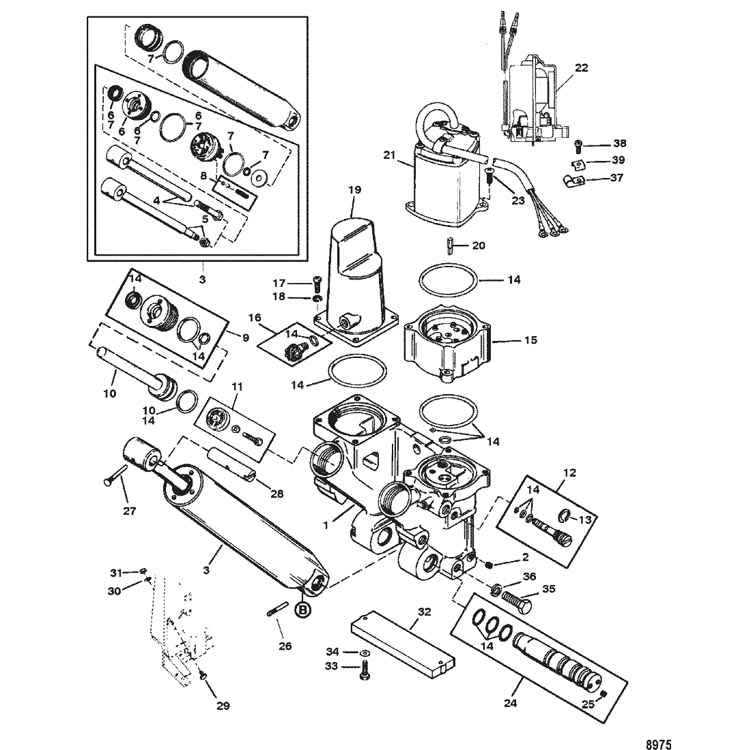

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Detonation Controller/Temperature Sensor
- Driveshaft Housing and Exhaust Tube
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel management System (0G366999 and Below)
- Fuel Management System (0G366999 and Below)
- Fuel Management System (0G367000 and Up)
- Fuel Management System (0G367000 and Up)
- Fuel Pump (Aluminum Body)
- Fuel Pump (Plastic Body With Loose Fittings)
- Fuel Pump (Plastic Body With Molded Fittings)
- Gear Housing (Drive) Standard/Counter Rotation-SportMaster
- Gear Housing (Drive)Torque Master 1.87:1/2:1
- Gear Housing (Driveshaft)(1.78:1)
- Gear Housing Chart (SportMaster)
- Gear Housing(Driveshaft)(CLE-1.87:1/2:1)
- Gear Housing, Propeller Shaft - 1.78:1 Gear Ratio
- Gear Housing, Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Torque Master 1.87:1/2:1
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Transom Brackets
- Trim Solenoid Plate (0G205106 and Below)
- Trim Solenoid Plate (0G205107 and Up)
- Wiring Harness and Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 826729A10 | POWER TRIM ASSEMBLY | 1 | 818186A6 | |||||
| - | 855998A11 | TRIM AND TILT ASSEMBLY | 1 | 826729A2 | |||||
| 1 | 811604F | MANIFOLD ASSEMBLY | 1 | No Longer Available | |||||
| 2 | 22-56800 | PLUG, Pipe (.0625-27) | 9 | ||||||
| 3 | 8M0078330 | CYLINDER ASSEMBLY | 1 | 823552F | |||||
| 4 | 811608 | ROD KIT, Trim And Tilt Piston (BOLT TYPE) | 1 | No Longer Available | |||||
| 5 | 880952A02 | ROD KIT, Trim Piston (NUT TYPE) | 1 | No Longer Available | |||||
| 6 | 8M0090322 | GUIDE KIT | 1 | 811606 | |||||
| 7 | 811607A1 | REPAIR KIT | 1 | ||||||
| 8 | 823553T | CHECK VALVE KIT | 1 | No Longer Available | |||||
| 9 | 8M0021648 | GUIDE ASSEMBLY | 2 | 99638A1 | |||||
| 10 | 878413A1 | PISTON/ROD ASSEMBLY, Power Trim | 1 | 43397A6 | |||||
| 10 | 878414T01 | PISTON/ROD ASSEMBLY, Power Trim | 1 | 43398A3 | |||||
| 11 | 35-12184A1 | TRIM FILTER ASSEMBLY | 1 | No Longer Available | |||||
| 12 | 893929A01 | MANUAL RELEASE ASSEMBLY | 1 | 813442A2 | |||||
| 13 | 53-815949001 | E RING | 1 | 812844 | |||||
| 14 | 811612A3 | O-RING KIT | 1 | 811612A2 | |||||
| 15 | 811617T1 | PUMP | 1 | 811617F | |||||
| 16 | 19-811613 | PLUG ASSEMBLY | 1 | ||||||
| 17 | 10-4000327 | SCREW, (M6 x 14) | 4 | ||||||
| 18 | 12-4002315 | WASHER | 4 | 43450 | |||||
| 19 | 811611 | COVER | 1 | No Longer Available | |||||
| 20 | 811619 | DRIVESHAFT | 1 | No Longer Available | |||||
| 20 | 828710 | DRIVE JOINT | 1 | No Longer Available | |||||
| 21 | 878265A6 | TRIM MOTOR | 1 | 811628 | |||||
| 22 | 8M0031551 | MOTOR ASSEMBLY | 1 | 828708 | |||||
| 23 | 10-811615 | SCREW | 2 | No Longer Available | |||||
| 23 | 10-881768A1 | SCREW | 2 | 828709 | |||||
| 23 | 10-811616 | SCREW | 2 | No Longer Available | |||||
| 24 | 878241A03 | SHAFT ASSEMBLY | 1 | 811614 | |||||
| 25 | 22-56800 | PLUG, Pipe (.0625-27) | 2 | ||||||
| 26 | 17-878267 | PIN, Groove | 1 | 44431 | |||||
| 27 | 17-821539 | PIN, Trilobe | 1 | ||||||
| 28 | 99625002 | SHAFT | 1 | 996251 | |||||
| 29 | 8M0045383 | STRIKER PLATE | 2 | 996301 | |||||
| 30 | 13-58643 | LOCKWASHER, (.375) | 2 | ||||||
| 31 | 11-46335 | NUT, (.375-24) | 2 | ||||||
| 32 | 818298Q1 | ANODE KIT | 1 | 818298A1 | |||||
| 33 | 10-4000330 | SCREW, (M6 x 25) | 2 | ||||||
| 34 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 35 | 10-4000377 | SCREW, (M10 x 30) | 6 | ||||||
| 36 | 12-4002319 | WASHER | 6 | ||||||
| 37 | 54-22875 | CLIP | 2 | ||||||
| 37 | 54-26550 | CLAMP | 2 | ||||||
| 38 | 10-878607 | SCREW, (#10-16 x .380) | 2 | 817626 | |||||
| 39 | 8M0084613 | C WASHER | 2 | 69205 |
